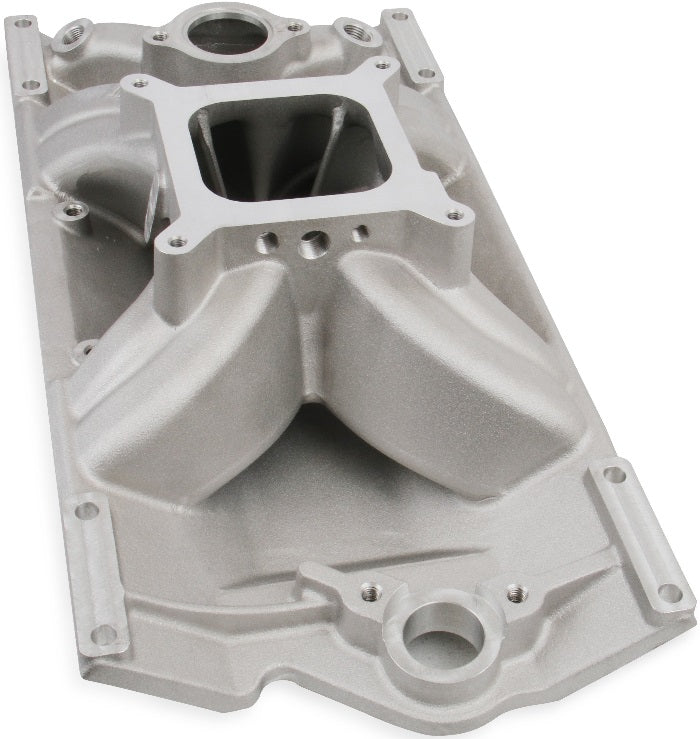

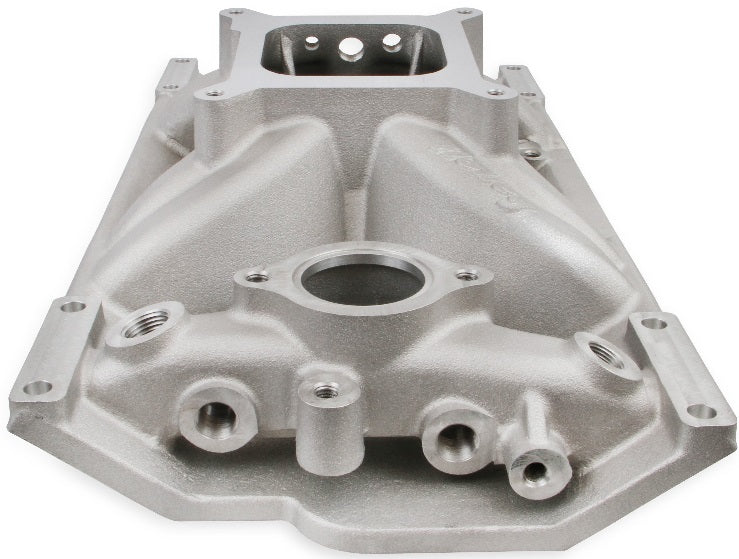

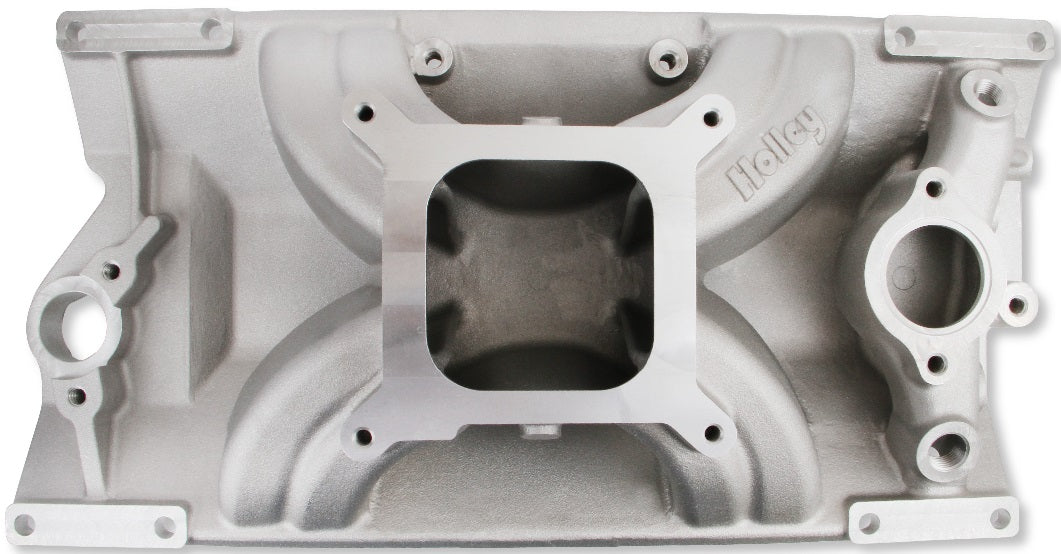

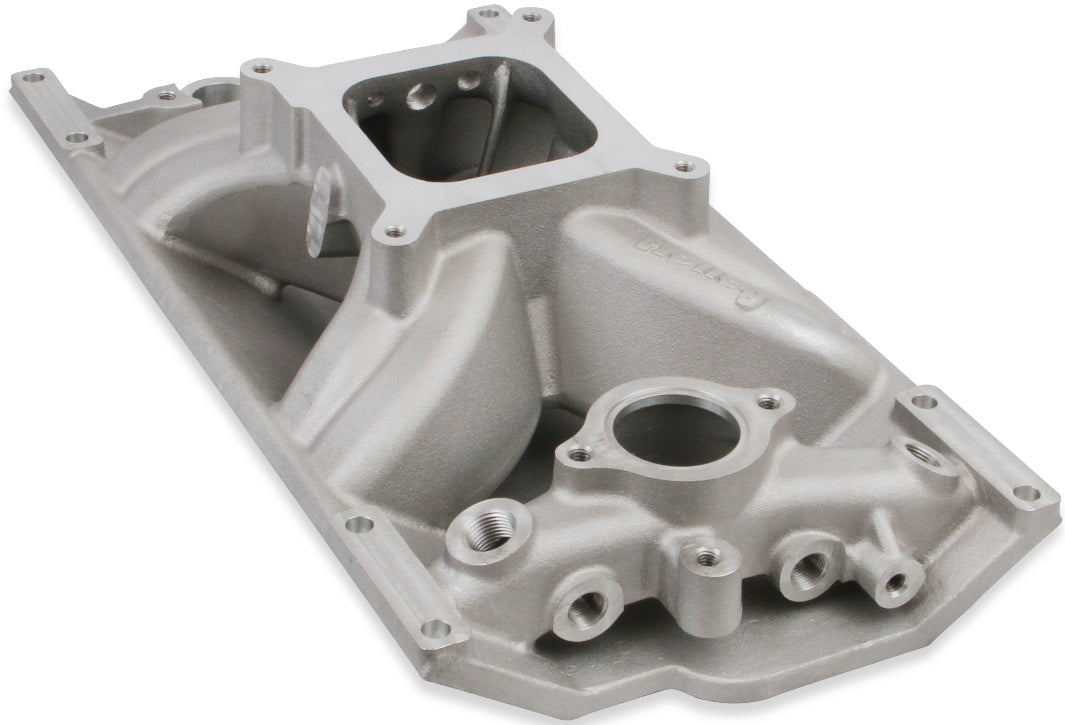

INTAKE MANIFOLD,SBC,96-02 L31 VORTEC,SINGLE-PLANE,4150,SATIN

BRAND NEW HOLLEY EFI SINGLE PLANE INTAKE MANIFOLD, SILVER FINISH, 262-400, COMPATIBLE WITH 1996-2002 SBC V8 WITH L31 VORTEC CYLINDER HEADS

DESIGNED TO PROVIDE A BROAD RPM POWERBAND FOR HIGH-PERFORMANCE STREET/STRIP ENGINE APPLICATIONS TO A MAXIMUM ENGINE SPEED OF 7500 RPM. THE CARBURETOR-MOUNTING PAD IS DESIGNED TO ACCEPT ALL STOCK OR AFTERMARKET SQUARE-BORE CARBURETORS WITH MANUAL OR ELECTRIC CHOKES.

THESE INTAKE MANIFOLDS ARE DESIGNED TO ACCEPT MOST STOCK HARDWARE & ACCESSORY BRACKETS, FEATURES UPDATED PLENUM DIVIDER AREA 1" SHORTER OVERALL HEIGHT THAN MOST SINGLE PLANE MANIFOLDS & CHOICE OF 2 DISTRIBUTOR CLAMP LOCATIONS. ISOLATED DESIGN OF AIR/FUEL PASSAGES HELP TO INCREASE COOLER CHARGE AIR DENSITY & PERFORMANCE.

VORTEC INTAKE IS COMPATIBLE WITH MOST POPULAR GM CRATE ENGINES EQUIPPED WITH VORTEC OR FAST BURN HEADS INCLUDING HO ENGINES (LIKE 350 HO), SP SERIES ENGINES (SP 350) & ZZ SERIES ENGINES (ZZ6).

NOTE: COMPATIBLE WITH SMALL BLOCK CHEVROLET 262-400 CID ENGINES EQUIPPED WITH 1996-2002 (L31) VORTEC CYLINDER HEADS (NON-EGR APPLICATIONS)

FEATURES:

• SINGLE PLANE DESIGN WITH ISOLATED PLENUM TO KEEP AIR CHARGE COOLER
• 4150 SQUARE BORE MOUNTING FLANGE TO ADAPT MOST AFTERMARKET THROTTLE BODY DESIGNS
• POWER BAND: 2500-7500 RPM
• HEIGHT: FRONT 4.23", REAR 5.33"
• PORT SIZE: 2.05" HEIGHT 1.02" WIDTH

SPECS:

• BRAND: HOLLEY
• CONSTRUCTION: CAST ALUMINUM
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• FINISH: SILVER SATIN
• FRONT HEIGHT: 4.18"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: EFI INTAKE MANIFOLD
• REAR HEIGHT: 5.28"
• RPM POWER BAND: 2500-7500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE HERE.
