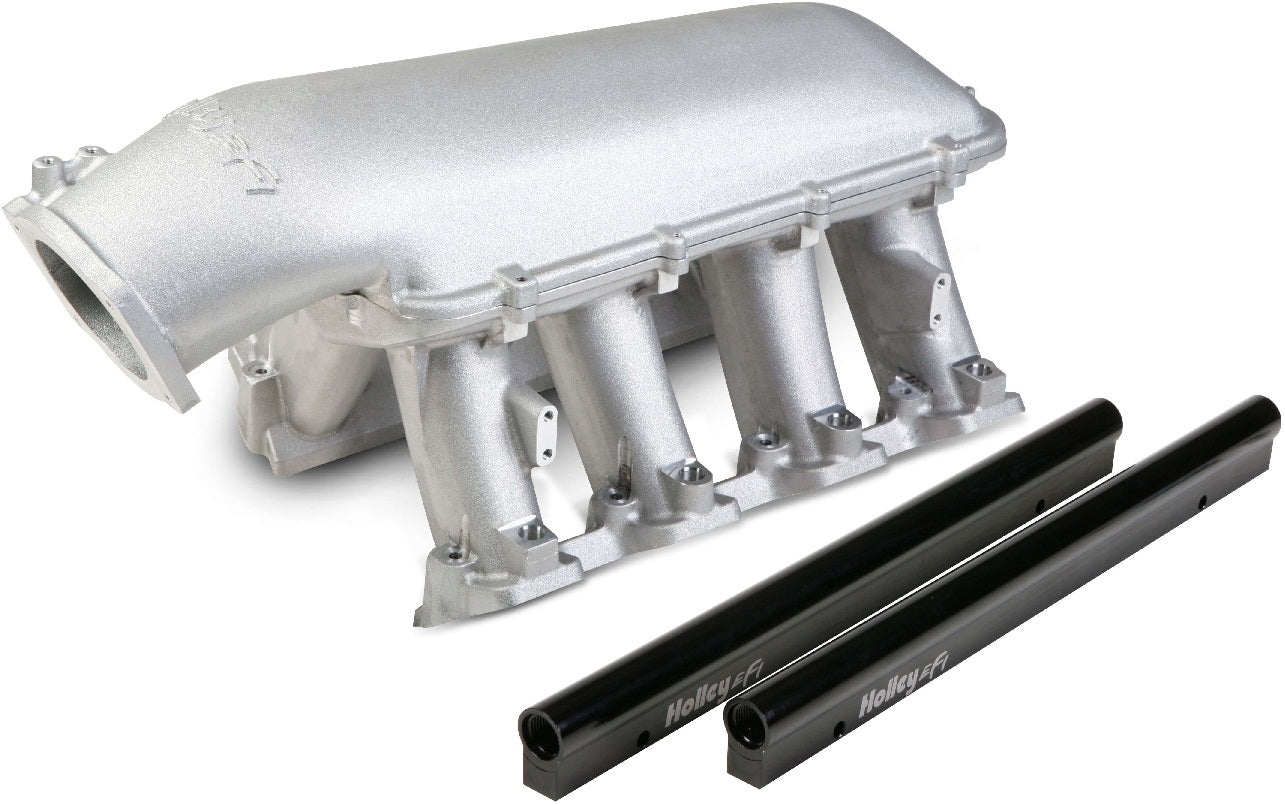

INTAKE MANIFOLD KIT,LS7,HI-RAM,105MM,SATIN

BRAND NEW HOLLEY LS HI-RAM EFI INTAKE MANIFOLD, SILVER FINISH, COMPATIBLE WITH GM LS7 ENGINES

HOLLEY GM LS7 MODULAR HI-RAM INTAKE MANIFOLD IS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS HI-RAM INTAKE WITH THE HIGH FLOWING LS7 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A & FORCED INDUCTION APPLICATIONS.

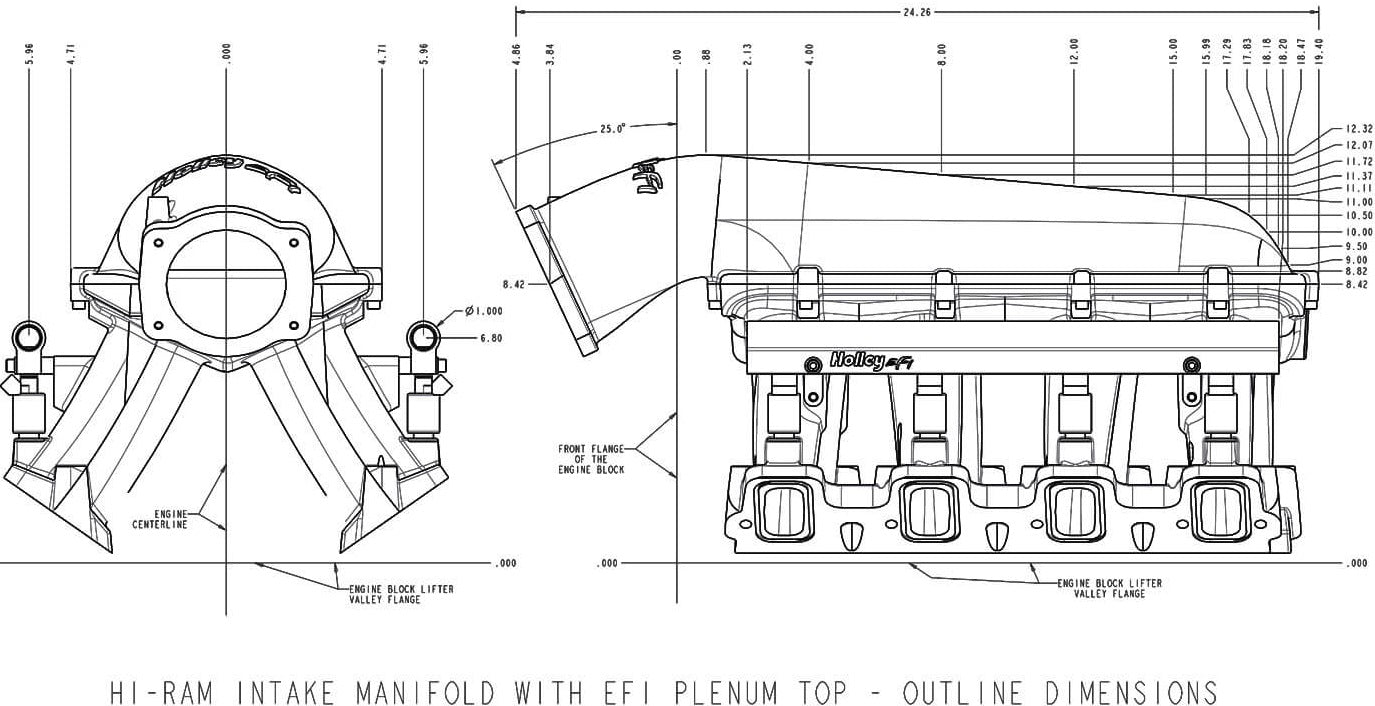

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• TOTAL HEIGHT WITH 92/105MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• PORT SIZE - 2.49" HEIGHT X 1.21" WIDE
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• THROTTLE BODY FLANGE LOCATION, WITH 92/102MM EFI PLENUM TOP : HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEGREES (DOWN FROM VERTICAL)
• RUNNER LENGTH - 6.29", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.67 INCHES SQUARED TO 2.84 INCHES SQUARED

SPECS:

• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS7 EFI WITH 1 X 105MM THROTTLE BODY
• FLANGE STYLE: EFI
• FRONT HEIGHT: 12.32"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 11.00"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD KIT HERE.
