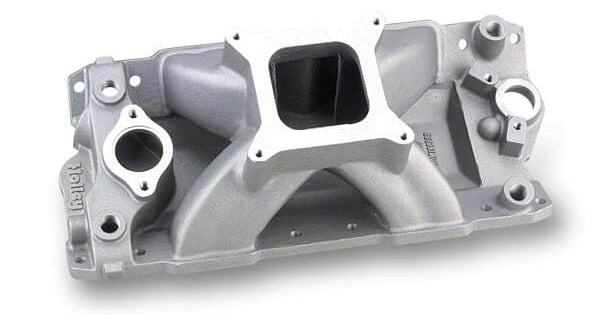

INTAKE MANIFOLD,SBC,SP,DORTON

BRAND NEW HOLLEY KEITH DORTON SERIES INTAKE MANIFOLD, 1957-1986 262CI-400CI, 1987-LATER WITH ALUMINUM HEADS, FITS CHEVY SMALL BLOCK V8

THIS IS A GREAT MANIFOLD DESIGNED FOR COMPETITION ENGINES BUILT FOR CIRCLE TRACK AND DRAG RACING USING 23 DEGREE STANDARD PORT HEADS. IDEAL FOR CLASSES THAT REQUIRE CAST IRON HEADS THAT REQUIRE AN UNPORTED INTAKE MANIFOLD.

FEATURES:

• POWER BAND: 4500-8500 RPM
• ISOLATED WATER CROSS-OVER
• SQUARE BORE CARBURETOR MOUNTING FLANGE
• SINGLE PLANE WITH ISOLATED PLENUM
• PORT SIZE: 2.00" HEIGHT 1.20" WIDTH
• HEIGHT: FRONT 6.13", REAR 6.13"

SPECS:

• BRAND: HOLLEY
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHEVY SMALL BLOCK V8
• FINISH: SATIN
• FLANGE STYLE: 4150 SQUARE BORE
• FRONT HEIGHT: 6.13"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: MANIFOLD
• REAR HEIGHT: 6.13"
• RPM POWER BAND: 4500-8500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
