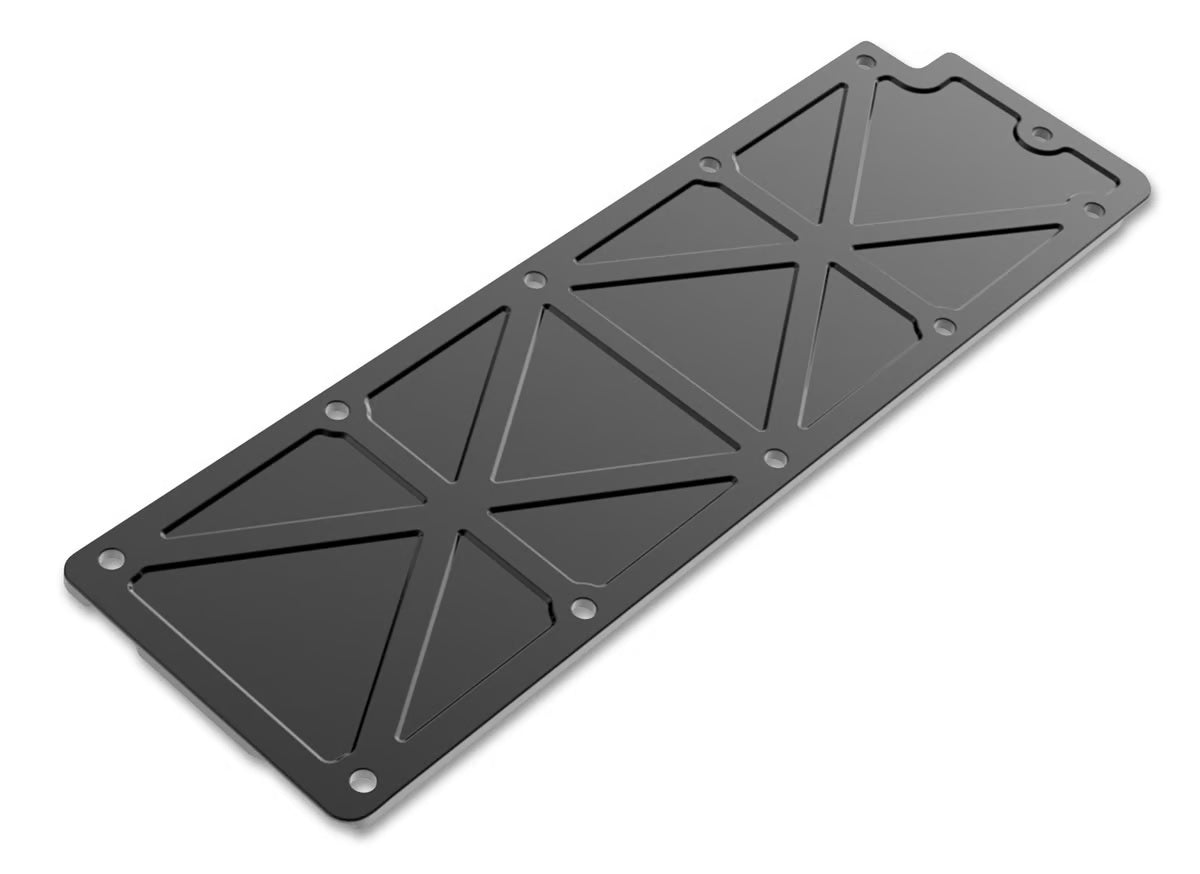

VALLEY COVER,LS2/3/7 & LSX,11 BOLT,TRUSSED,BLACK

Brand New Holley LS Valley Cover with Oil Fill, Trussed, Anodized Black Finish, Compatible with GM LS2,LS3,LS7,LSX Engines (Part #241-265).

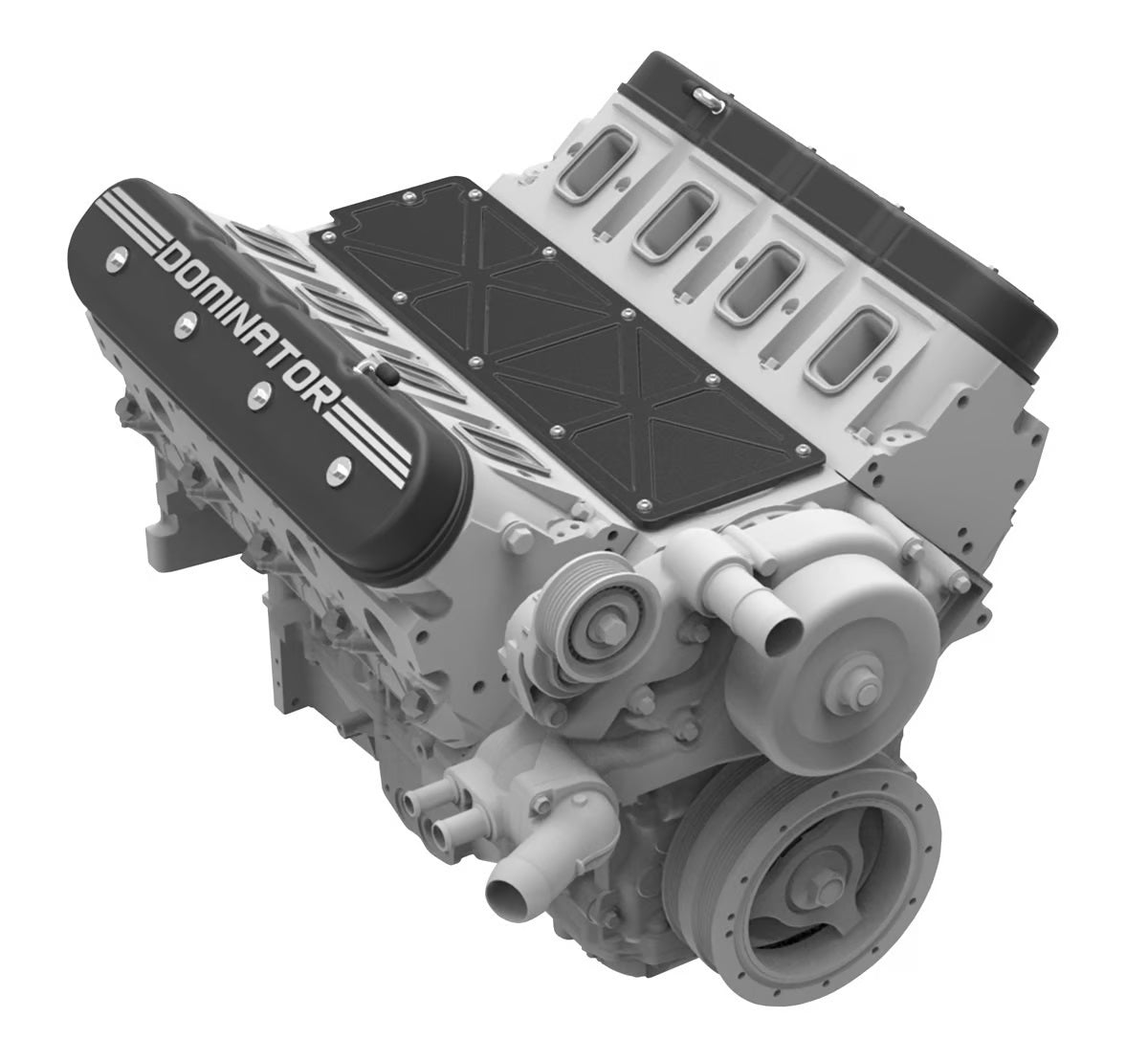

Holley LS valley covers with oil fill provisions are the latest addition to our expansive lineup of LS engine dress up products. Machined from billet aluminum and featuring a modern, trussed design with an integrated oil fill neck and billet oil fill cap, these LS valley covers are the perfect upgrade for your LS engine if you are looking for a subtly custom touch. These valley covers are machined smooth on the underside, allowing for the removal of Displacement-On-Demand (DOD), and instead features an ample gasket sealing surface and provisions for re-installing the oil pressure sensor if necessary.

NOTE: If it is your intent to use the top mounted factory oil pressure sensor on LS2/LS3/LS7/LSX engines, you will need to carefully drill and tap the oil pressure sensor provision using the pre-located pilot hole on the bottom of the valley cover. The hole should be drilled and tapped to accept an M16 x 1.5 male NPT fitting. *If using for DOD Delete you must drill and tap all 8 oil port holes 1/8-NPT and install plugs in the oil ports or loss of oil pressure will occur.

Features:

• Precision manufactured from billet aluminum with a modern, race inspired, trussed design
• LS2/LS3/LS7/LSX (11 bolt) engine applications

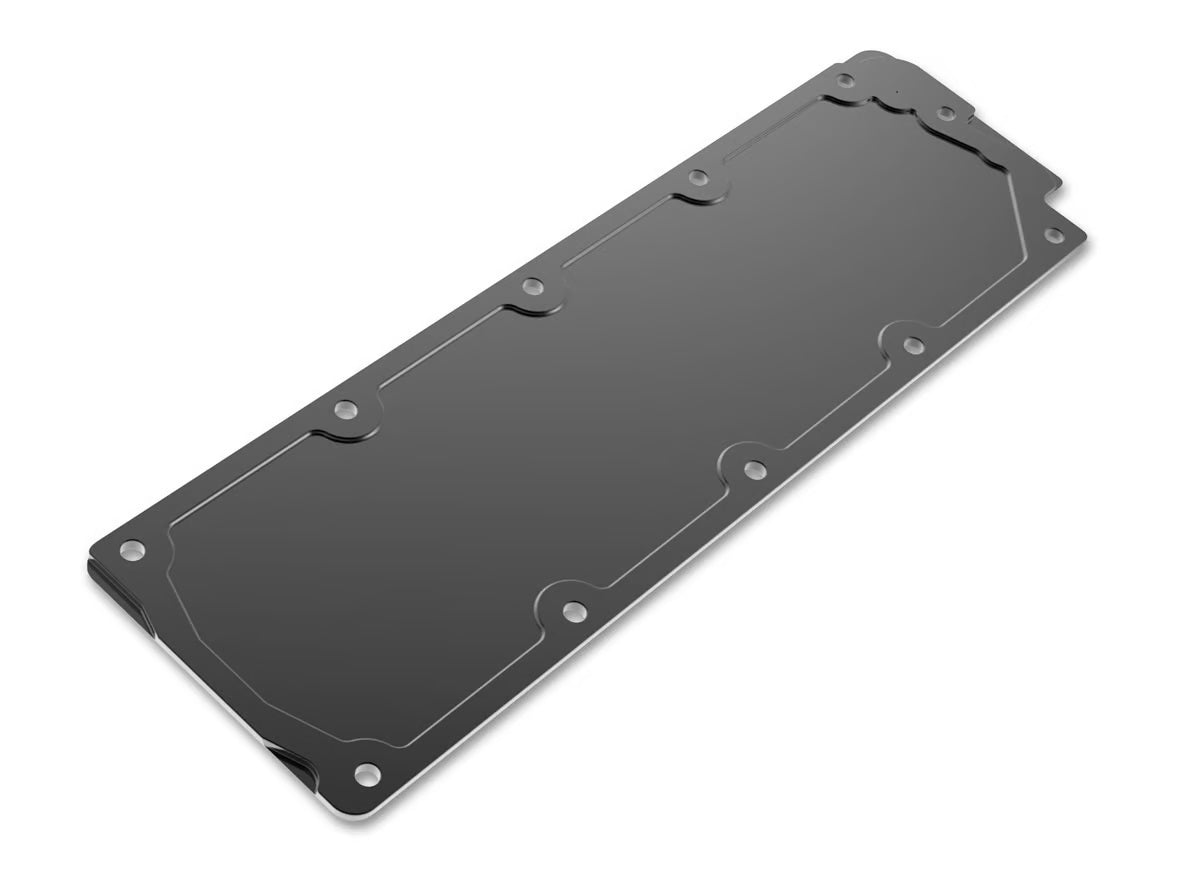

• Smooth underside allows for elimination of Displacement-On-Demand (DOD)* and offers ample gasket sealing surface
• All necessary gaskets and upgraded mounting hardware sold separately

Specs:

• Application: LS2/LS3/LS7/LSX
• Bolt Pattern: 11
• Finish: Anodized Black
• Gaskets Included: No
• Hardware Included: No
• Logo: Trussed, No Logo
• Material: Billet Aluminum
• Oil Fill Cap Included: No
• Product Type: Valley Covers
• Style: Trussed

You can view and download the complete assembly instruction booklet here.
