VALVE COVERS,ALUM,LS,TALL,COIL MOUNT POSTS,FACTORY ORANGE

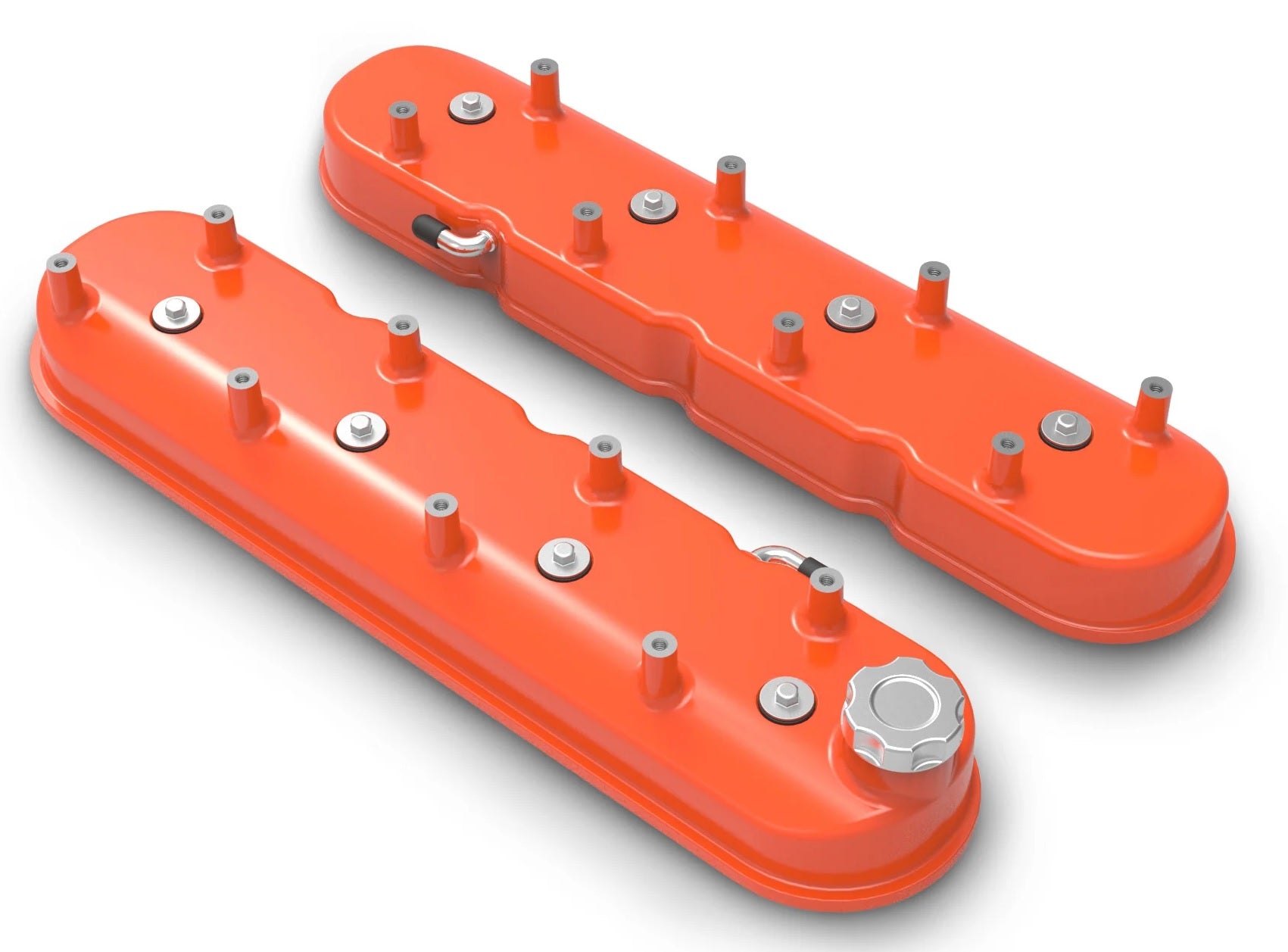

Brand New Pair of Holley Tall LS Valve Covers with Coil Mounting Posts, Factory Orange Finish, Center Bolt Pattern (Part #241-164).

Holley tall LS valve covers are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54" of internal clearance over factory height valve covers. The valve covers retain Holley signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6 and LS7 engines using coils with a standard LS3 bolt spacing of 72mm (coils not included). These valve covers come ready for installation with an OE style baffle and ventilation system, lengthened factory style mounting hardware, plus a billet aluminum oil fill cap.

NOTE: The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils.

Features:

• Angled coil mounts deliver a smooth clean look
• Retain the high-tech look and performance of coil on cover
• Removes unsightly OE style coil brackets
• Billet aluminum oil fill cap
• Reuses original gaskets and bolts
• Fits all LS engines using LS1, LS2, LS3, LS6 and LS7 or similar coils with spacing 72mm bolt spacing

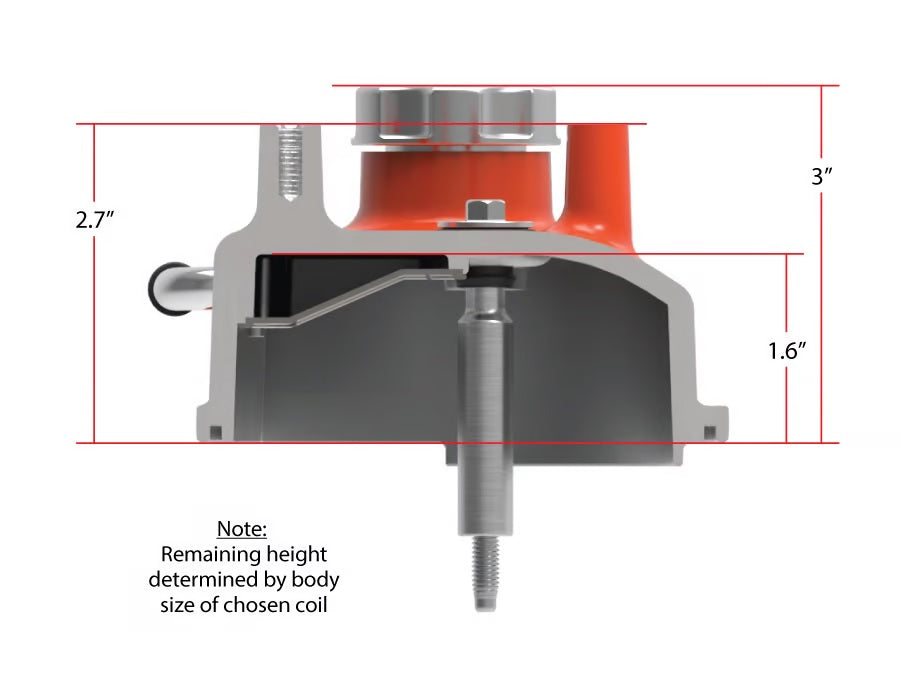

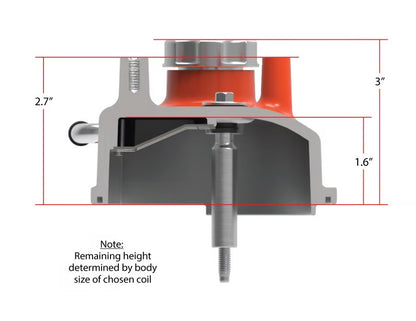

• Designed to add an additional 0.54" of internal clearance over factory height valve covers
• Holley LS covers use proven OE style baffles and vents

Specs:

• Application: GM LS Engines
• Baffle Included: Yes
• Bolt Pattern Center: Bolt
• Breather(s) Included: No
• Coil Mounting Studs: Yes
• Coil Options: with Coil Stands
• Construction: Die Cast Aluminum
• Design Type: Tall Height
• Finish: Factory Orange
• Gaskets Included: No
• Grommet(s) Included: Yes
• Height: Tall
• Material: Cast Aluminum
• Mounting Hardware Included: Yes
• Oil Fill: Yes
• Oil Fill Cap Included: Yes
• Overall Height (in): 3.000"
• Product Type: Valve Cover
• Quantity: Pair
• Style: With Coil Mounts

You can view and download the complete assembly instruction booklet here.
