LT4 WET FRONT ENGINE KIT,MID,ALTERNATOR,PS,A/C

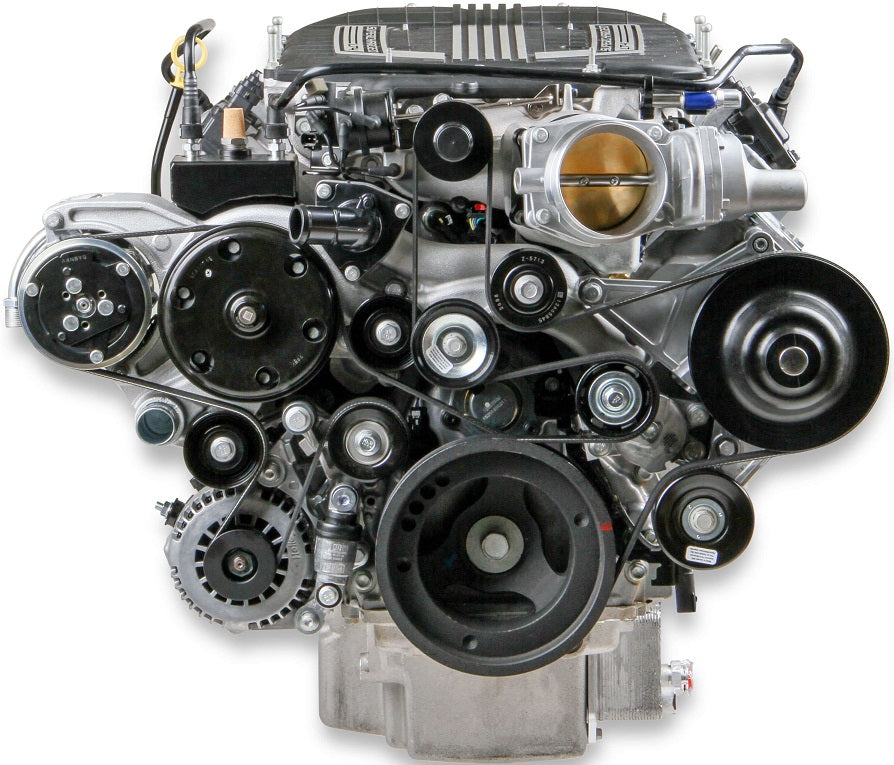

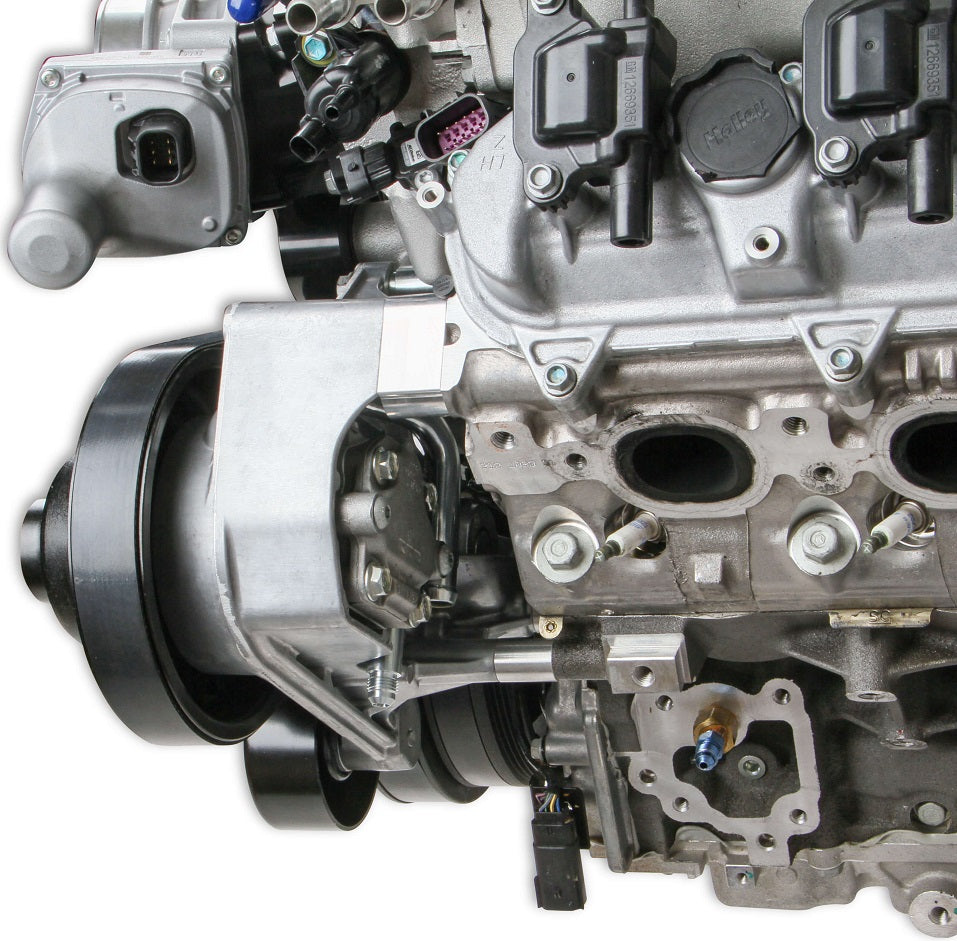

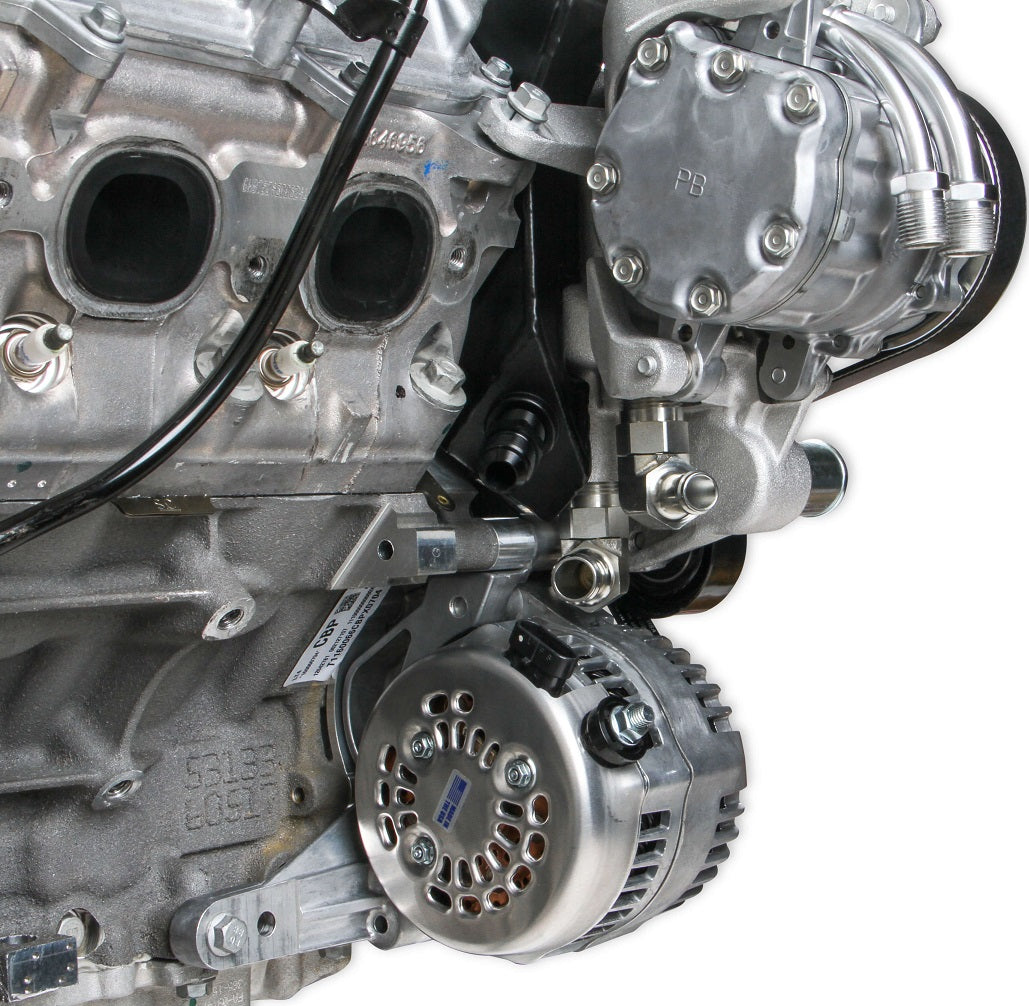

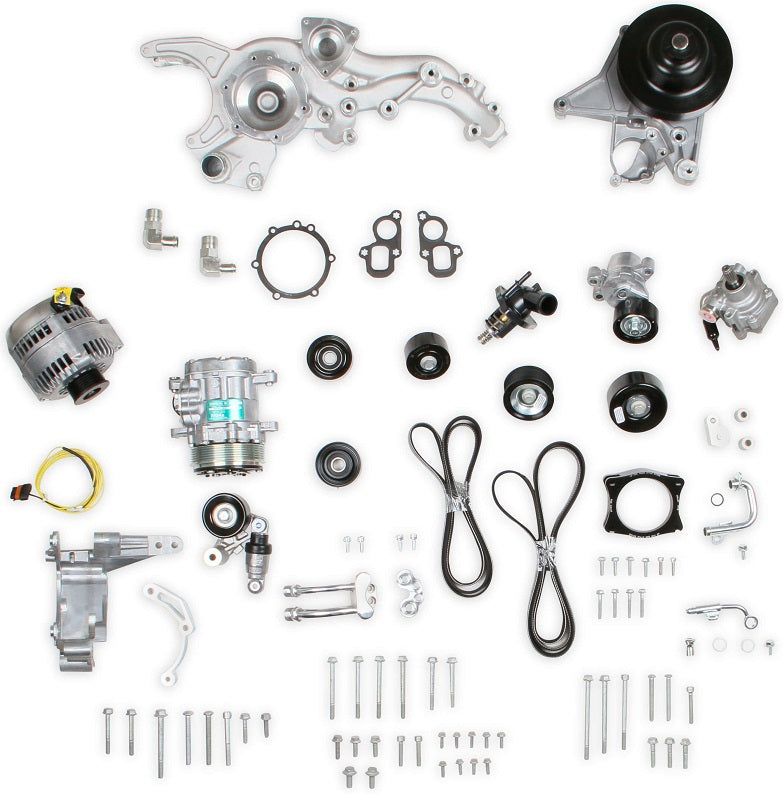

BRAND NEW HOLLEY PREMIUM MID-MOUNT COMPLETE ACCESSORY SYSTEM, INCLUDES GM GEN V LT4 ACCESSORY DRIVE SYSTEM WITH ALTERNATOR, POWER STEERING PUMP, A/C, WATER PUMP, BELTS

THE HOLLEY COMPLETE ACCESSORY SYSTEMS FOR LT4 AND LT5 APPLICATIONS HAVE ALL ACCESSORIES PULLED UP AND IN TIGHT. PLUS, THEY ADD THE MUCH NEEDED HYDRAULIC POWER STEERING SOLUTION. THERE ARE NO SHORTCUTS HERE. HOLLEY INCORPORATES A SPLINED DUAL BEARING SYSTEM THAT ELIMINATES ALL BELT STRESSES ON THE P/S PUMP INTERNAL BEARINGS, ASSURING LONG LIFE. THE SUPERCHARGER DRIVE MAINTAINS THE ORIGINAL AND OPTIMIZED BELT PATH AND TENSIONER.

THE ACCESSORY LAYOUT IS AS IF THE ORIGINAL MANUFACTURER HAD DESIGNED IT FOR YOUR SWAP APPLICATION. INCLUDED WITH EACH DRIVE SYSTEM IS A THROTTLE BODY ANGLE CORRECTING ADAPTER THAT BETTER POSITIONS THE TB FOR SWAP APPLICATIONS AS OPPOSED TO THE AGGRESSIVE ORIGINAL APPLICATION INTENDED ANGLES. VERSIONS OF THESE ACCESSORY DRIVES ARE AVAILABLE FOR BOTH WET AND DRY SUMP APPLICATIONS.

NOTE: LOW LS ACCESSORY DRIVE FITS MIDDLE AND LONG ACCESSORY SPACING ONLY (DOES NOT FIT SHORT ACCESSORY SPACING CORVETTE/CTS-V/G8). CUSTOMERS W/ SHORT SPACING CAN SWAP OUT WATER PUMP AND CRANK PULLEY TO CONVERT TO MIDDLE OR LONG SPACING. LONG SPACING REQUIRES INSTALLATION KIT 21-4.

NOTE: FOR ALL LS ENGINE SWAPS-PLEASE REFER TO YOUR SPECIFIC BODY STYLE ENGINE MOUNT KITS FOR ADDITIONAL MODIFICATION AND FITMENT REQUIREMENTS.

FEATURES:

• ADDS POWER STEERING WITHOUT ANY BELT LOAD ON THE P/S PUMP
• NOTABLY MORE CLEARANCE TO SWAP APPLICATIONS THAN OTHER OPTIONS
• ORIGINAL EQUIPMENT LOOK
• LT4 STYLE PREMIUM ALTERNATOR
• LT4 STYLE WATER PUMP DESIGN
• COMPACT SD7 A/C COMPRESSOR
• A/C LINE ADAPTERS INCLUDED
• TYPE II POWER STEERING PUMP
• P/S HARD LINE ADAPTERS INCLUDED
• BOTTOM OUTLET SWIVEL HEATER HOSE OPTIONS FOR SWAP APPLICATION CLEARANCE
• THROTTLE BODY ANGLE CORRECTING ADAPTER FOR EASIER INTAKE TUBE ROUTING ON SWAP APPLICATIONS
• OE PULLEY RATIOS FOR OPTIMAL ACCESSORY PERFORMANCE, ALLOWS FOR LARGER SC CRANK PULLEY
• AVAILABLE LT4/5 DRY-SUMP & LT4 WET-SUMP APPLICATIONS
• LT4/5 SPECIFIC ACCESSORIES AVAILABLE FOR PLUMBING OIL COOLER AND PCV OIL SEPARATOR OE SYSTEM

SPECS:

• ACCESSORY DRIVE STYLE: MID MOUNT
• APPLICATION: GM GEN V LT4
• ENGINE: GM GEN V LT4
• FINISH: CAST
• INLET SIZE: 35.4MM/1.4"
• MATERIAL: ALUMINUM
• PRODUCT TYPE: ACCESSORY DRIVE KITS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DRIVE KIT HERE.
