LS RACING FRONT ENGINE KIT,MID,ALTERNATOR,BLACK

BRAND NEW HOLLEY PREMIUM MID-MOUNT RACE ACCESSORY SYSTEM, BLACK, INCLUDES ALTERNATOR, TENSIONER, SFI CERTIFIED DAMPER WITH HARD ANODIZED BILLET CRANK PULLEY, BELT, & PULLEYS, FITS GM LS ENGINES

THE HOLLEY MID-MOUNT ACCESSORY DRIVE SYSTEM IS NOW OFFERED FOR THE SERIOUS RACER IN MIND. IF YOU NEED A FRONT DRIVE SYSTEM FOR YOUR LS ENGINE RACE CAR, THEY ARE NOW AVAILABLE WITHOUT AIR CONDITIONING AND POWER STEERING DEPENDING UPON YOUR NEEDS!

THE HOLLEY PREMIUM MID-MOUNT COMPLETE ACCESSORY SYSTEM HAS ALL ACCESSORIES PULLED IN TIGHTER THAN OTHER ACCESSORY DRIVES. AT THE HEART OF THE SYSTEM IS A "BRACKETLESS" DESIGN (PATENT PENDING), WHERE THE ACCESSORIES BOLT DIRECTLY TO THE WATER PUMP FOR A CLEAN, INTEGRATED FORM. THE DESIGN OFFERS SUPERB ENGINE VISIBILITY TO SHOW OFF YOUR HORSEPOWER, NOT YOUR ACCESSORIES. AMONG THE MANY SWAP FRIENDLY FEATURES ARE BOTTOM HEATER OUTLETS FOR CLEARANCE IN TIGHT APPLICATIONS. THE HOLLEY DESIGNED ALTERNATOR IS JUST AS INNOVATIVE. THIS PREMIUM ALTERNATOR UTILIZES 6-PHASE TECHNOLOGY AS FOUND ON THE C7 CORVETTE. THE WATER PUMP ALSO SHARES ITS DESIGN EFFICIENCIES WITH THAT OF THE C7 CORVETTE. THE COMPACT AND RELIABLE SD7 A/C COMPRESSOR AND TYPE II P/S PUMP WITH BAFFLED RESERVOIR ARE ALSO INTEGRATED.

THE MID-MOUNT DRIVE COMPLETES THE HOLLEY TRILOGY OF ACCESSORY SOLUTIONS GIVING A THIRD OPTION COMPARED TO THE HIGH AND LOW-MOUNT PREVIOUSLY RELEASED. ALL THREE ACCESSORY SOLUTIONS ARE FOR LS ENGINES.

WHEN WE SAY "COMPLETE", WE MEAN COMPLETE. THE MID-MOUNT SYSTEM COMES WITH EVERYTHING YOU NEED. ALL ACCESSORIES ARE INCLUDED; THE WATER PUMP, ALTERNATOR, AND AN SFI CERTIFIED DAMPER W/HARD ANODIZED BILLET CRANK PULLEY. ALL PULLEYS AND THE BELT ARE SUPPLIED. EVEN HEATER HOSE ADAPTERS, POWER STEERING TO -6 AN HARDLINE, AND THE ALTERNATOR PLUG/HARNESS ARE INCLUDED. EASY ASSEMBLY WAS A PRIORITY DURING THE ENTIRE DEVELOPMENT OF THIS ACCESSORY SOLUTION. COLOR GRAPHICAL INSTRUCTIONS WALK YOU THROUGH EVERY STEP OF THE ULTRA-EASY INSTALLATION.

THE PREMIUM MID-MOUNT SYSTEM COMES WITH DRESS UP PULLEY COVERS AND AN SFI CERTIFIED DAMPER. PARTNERED WITH THIS DAMPER IS A BILLET 6061-T6 ALUMINUM HARD ANODIZED CRANK PULLEY. THIS SYSTEM IS READY FOR THE RACETRACK IF YOU WANT TO PLAY OR JUST BE READY FOR ANYTHING ON THE STREET.

NOTE: STEAM TUBE INPUT PORT IS 1/8" NPT.

FEATURES:

• BRACKETLESS ACCESSORY MOUNTING WITH ULTRA-EASY ASSEMBLY
• BOTTOM OUTLET HEATER HOSE OPTIONS FOR SWAP APPLICATION CLEARANCE
• LT1 STYLE PREMIUM 150 AMP ALTERNATOR
• LT1 STYLE WATER PUMP CARTRIDGE DESIGN
• STEAM TUBE INPUT PORT
• SHORTENED TOP OUTLET NIPPLE FOR MORE RADIATOR HOSE TURNS AND ROUTING ROOM
• OE PULLEY RATIOS FOR OPTIMAL ACCESSORY PERFORMANCE
• NO ADAPTERS/SPACERS REQUIRED
• WORKS WITH ALL COMMON AFTERMARKET AND FACTORY THROTTLE BODIES AND INTAKES
• WORKS WITH VVT APPLICATIONS
• WORKS WITH HOOKER TURBO MANIFOLDS
• FITS ALL LS ENGINES EXCEPT WITH DRY SUMP AND/OR SUPERCHARGER

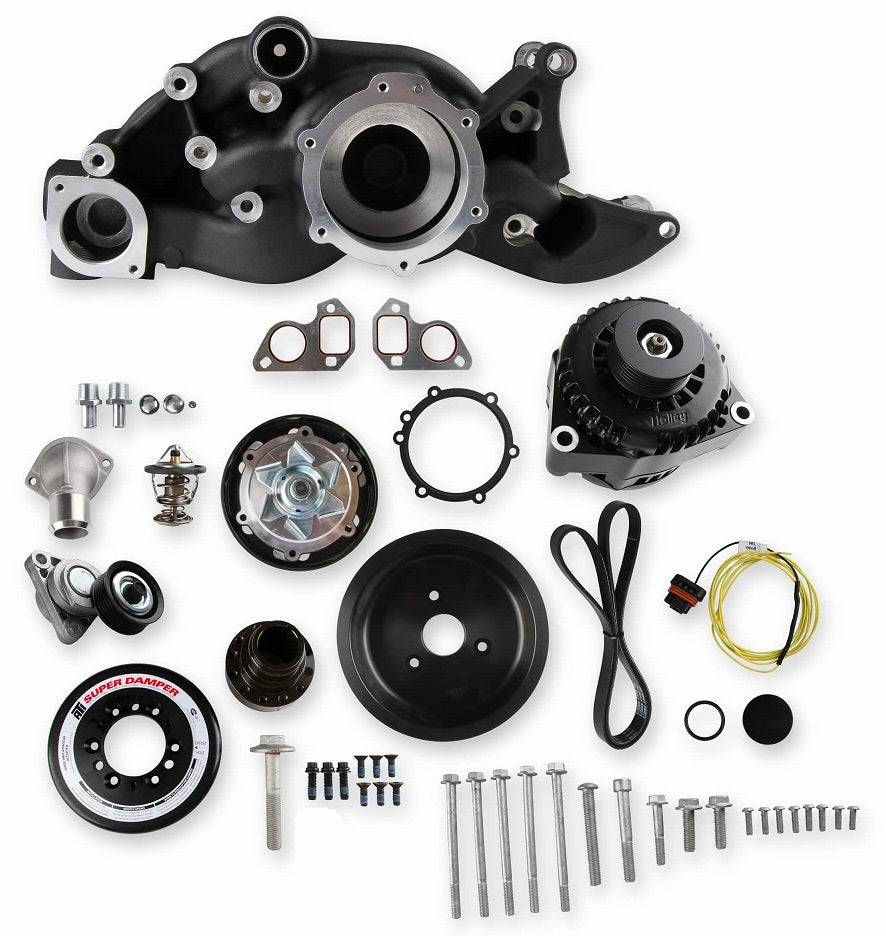

INCLUDES:

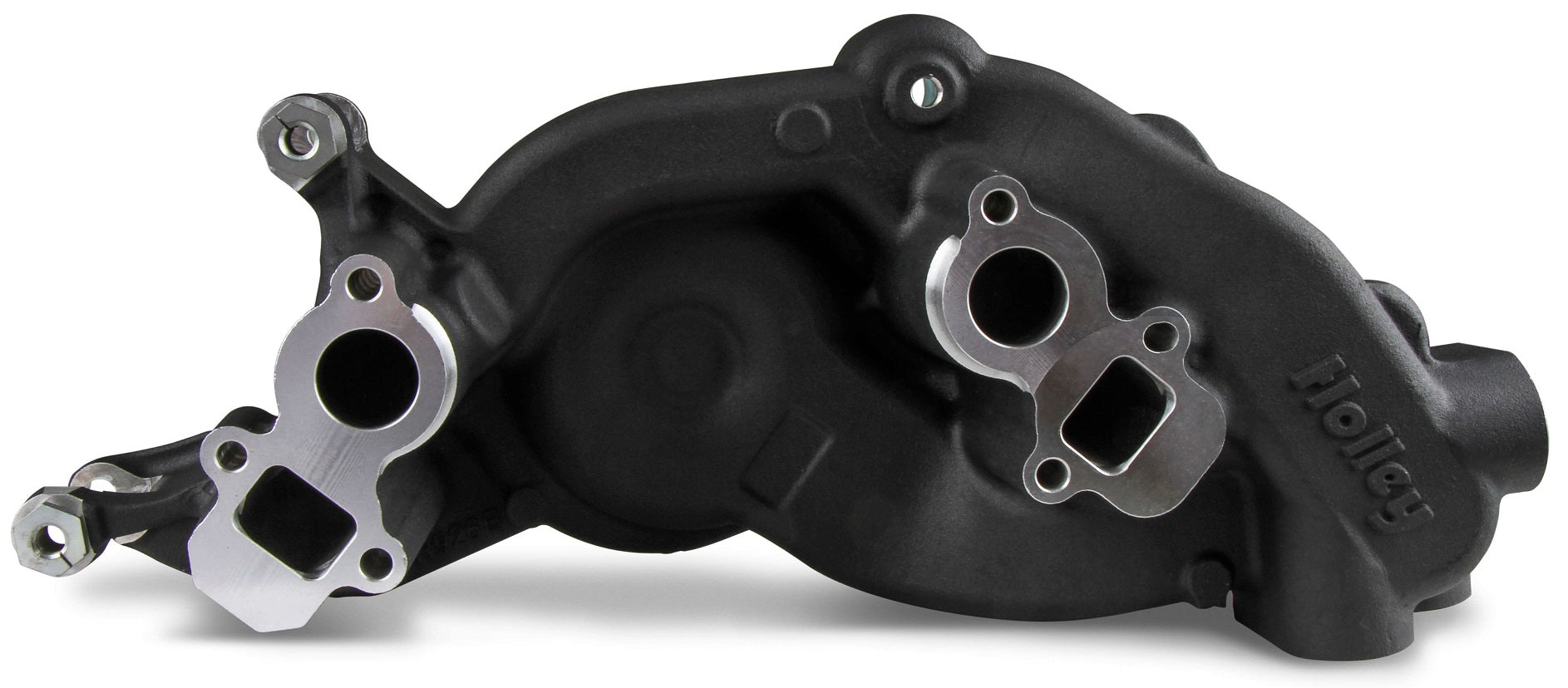

• WATER PUMP
• ALTERNATOR
• POWER STEERING PUMP WITH RESERVOIR
• SFI CERTIFIED DAMPER W/HARD ANODIZED BILLET CRANK PULLEY

SPECS:

• ACCESSORY DRIVE STYLE: MID MOUNT
• APPLICATION: GM LS
• BRAND: HOLLEY
• EMISSION CODE: 5
• ENGINE: GM LS
• FINISH: BLACK
• INLET SIZE: 35.4MM/1.4"
• MATERIAL: ALUMINUM
• PRODUCT TYPE: ACCESSORY DRIVE KIT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
