COMP HIGH MOUNT SANDEN SD7 A/C DRIVE KIT,PASSENGER BRACKET,LS/LT,NATURAL

BRAND NEW HOLLEY LS A/C ACCESSORY DRIVE KIT, INCLUDES SD7 A/C COMPRESSOR, TENSIONER & PULLEYS, COMPATIBLE WITH GM LS ENGINES

ALREADY HAVE THE POWER STEERING PUMP & ALTERNATOR SYSTEM FROM THE DONOR TRUCK OR CAR ENGINE? THESE COMPLETE A/C BRACKETS KITS MOVE THE COMPRESSOR UP HIGH & AWAY FROM THE FRAME RAIL (NO MORE NOTCHING!). INCLUDED ARE COMPRESSOR, PULLEYS & TENSIONER THAT ARE MANUFACTURED BY OE PART SUPPLIERS MANY OF WHICH ARE ON PRODUCTION CARS TODAY.

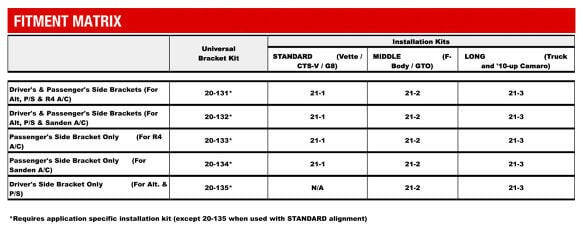

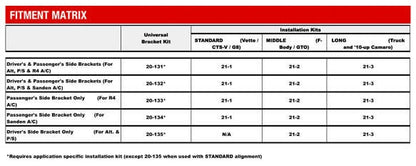

NOTE: THIS BRACKET REQUIRES AN INSTALLATION KIT FOR ASSEMBLY (PART 21-1, 21-2, OR 21-3, SEE INSTRUCTION SHEET IN THE IMAGES SECTION FOR THE CORRECT INSTALL KIT FOR YOUR APPLICATION).

NOTE: FOR ALL LS ENGINE SWAPS-PLEASE REFER TO YOUR SPECIFIC BODY STYLE ENGINE MOUNT KITS FOR ADDITIONAL MODIFICATION AND FITMENT REQUIREMENTS.

FEATURES:

• UNIVERSAL BRACKETS FIT VIRTUALLY ALL COMMON LS ENGINES REGARDLESS OF WATER PUMP & HARMONIC BALANCER OFFSETS REDUCING COST & COMPLEXITY
• SIMPLE, DEDICATED INSTALL KITS ALLOW FITMENT TO CORVETTE, F-BODY OR TRUCK DRIVE OFFSETS
• ACCESSORIES, TENSIONER & PULLEYS ARE MANUFACTURED BY OEM SUPPLIERS
• OEM QUALITY NATURAL FINISH DIE CASTINGS THAT CAN BE POLISHED, COATED, PAINTED OR PLATED.
• OEM SPEC FLANGED HEAD HARDWARE INCLUDED TO MATCH YOUR FACTORY LS ENGINE HARDWARE
• IDEAL FOR CRATE ENGINES, TAKE OUT MOTORS & ENGINE BUILDERS

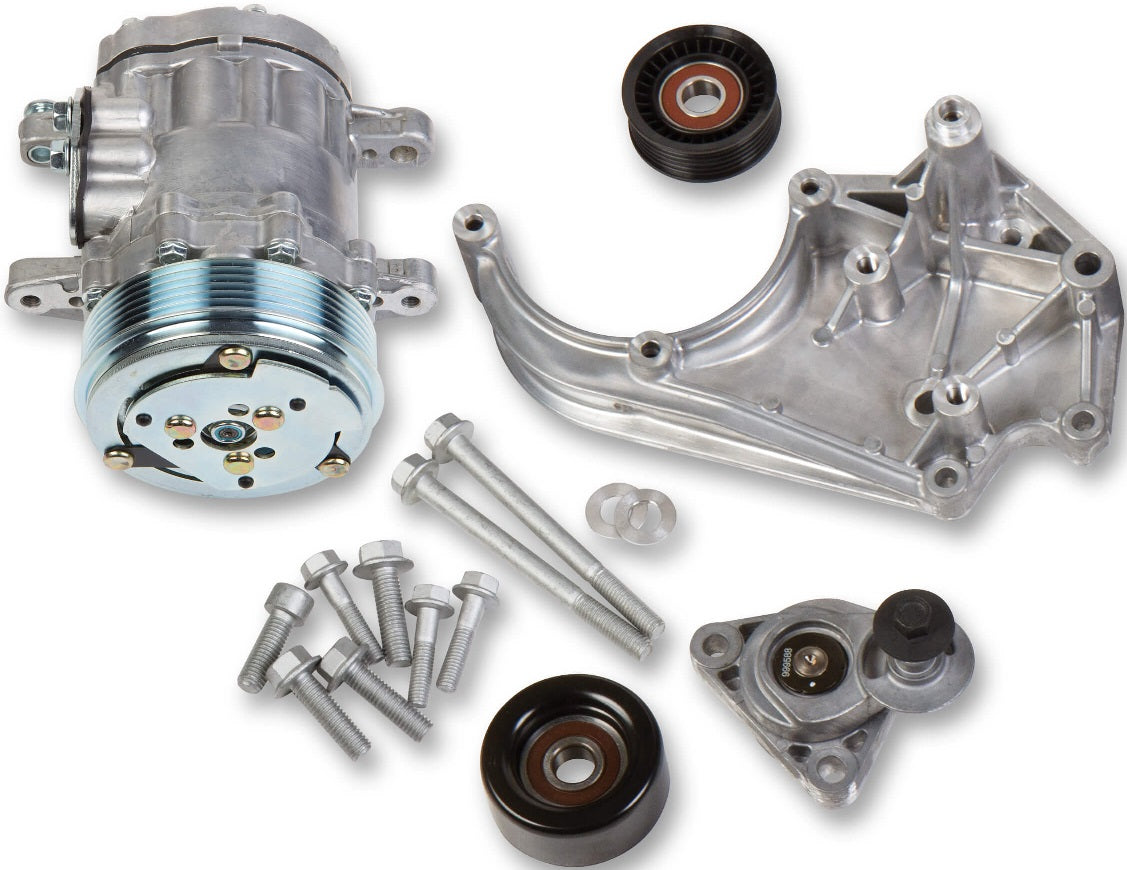

INCLUDES:

• PART # 20-134 - LS A/C BRACKET KIT PASSENGER SIDE
• PART # 97-151 - TENSIONER ASSEMBLY WITH GROOVED PULLEY
• PART # 97-150 - IDLER PULLEY, SMOOTH, 2.75" DIAMETER
• PART # 199-102 - AC SD7 SANDEN COMPRESSOR, R-134A

SPECS:

• ACCESSORY DRIVE STYLE: HIGH MOUNT
• BRAND: HOLLEY
• EMISSION CODE: 5
• ENGINE: GM LS
• FINISH: CAST
• MATERIAL: CAST ALUMINUM
• PRODUCT TYPE: ACCESSORY BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS ACCESSORY DRIVE KIT HERE, PART 21-1 HERE, PART 21-2 HERE, AND PART 21-3 HERE.
