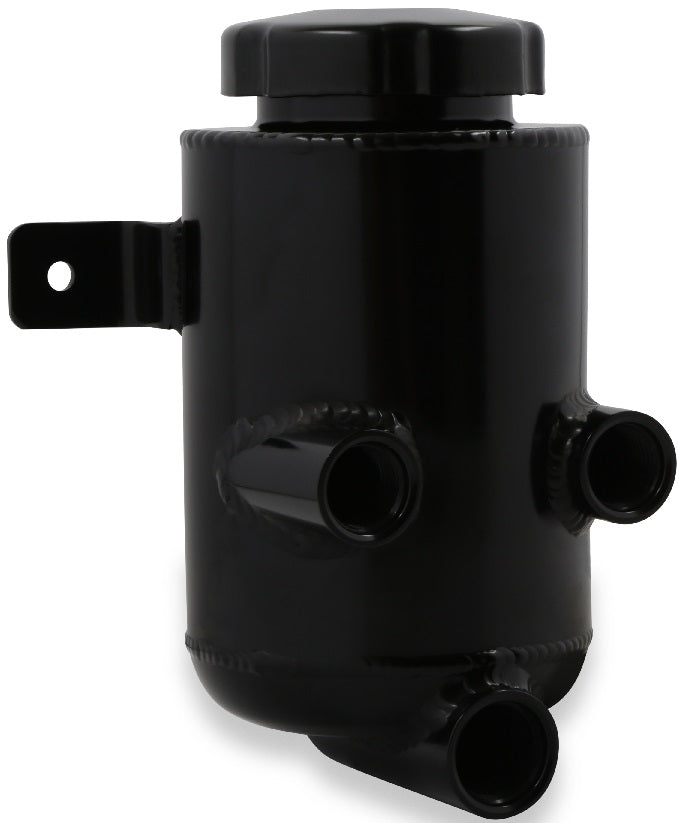

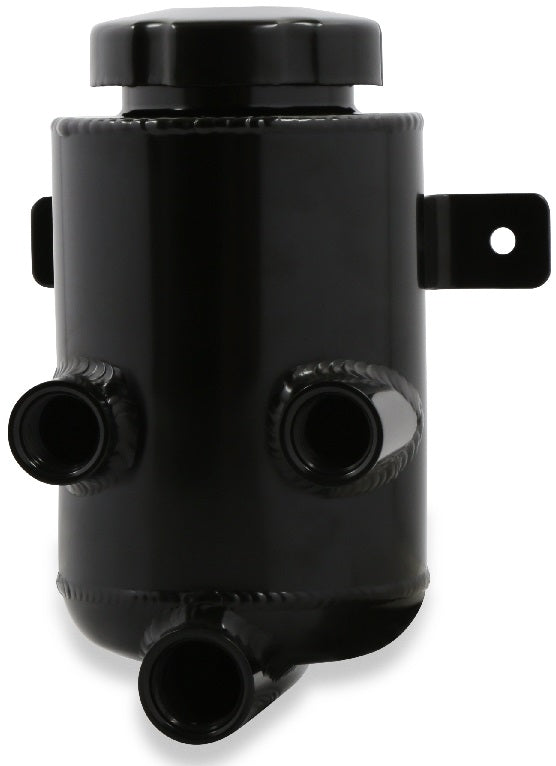

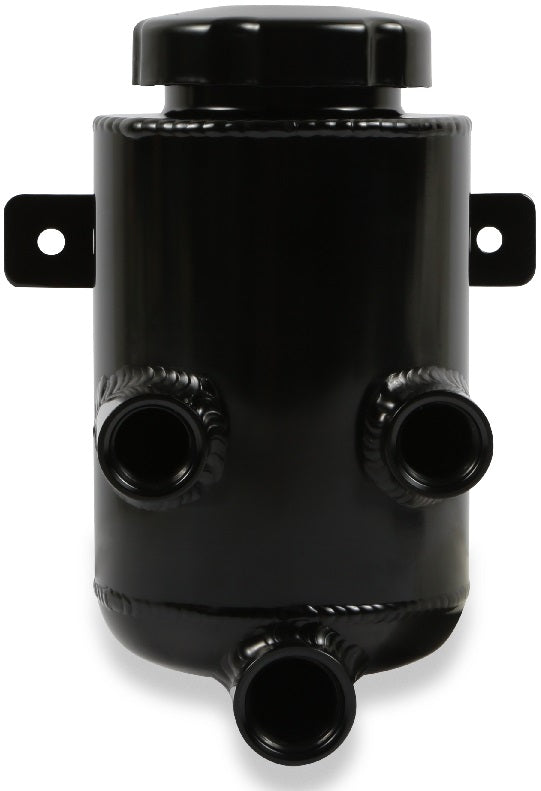

POWER STEERING REMOTE RESERVOIR,BLACK

BRAND NEW HOLLEY POWER STEERING REMOTE RESERVOIR WITH BRACKET, BLACK ALUMINUM FINISH, UNIVERSAL, FIREWALL OR INNER FENDER MOUNTING

IDEAL FOR APPLICATIONS THAT CAN NOT FIT A PUMP MOUNTED RESERVOIR. THESE LIGHTWEIGHT ALUMINUM RESERVOIRS HAVE AN INTERNAL BAFFLE AND AIR SEPARATOR TO KEEP THE FLUID FROM GETTING FOAMY OR OVERFLOWING. FEATURES A BLACK FINISH, AND INCLUDES MOUNTING BRACKET. RESERVOIRS INCLUDE AN FITTINGS.

THE DUAL INLET PORTS SUPPORT THE PLUMBING REQUIRED FOR HYDRO-BOOST BRAKE SYSTEMS. FACTORY STYLE PLASTIC PUMP-MOUNTED POWER STEERING RESERVOIR DOES NOT HAVE THE EXTRA INLET PORT THAT IS REQUIRED FOR HYDRO-BOOST. WHEN USED WITH EARLS POWER STEERING PUMP ADAPTERS (PS0001ERL, PS0002ERL, PS003ERL, PS0004ERL) ELIMINATE THE PLASTIC RESERVOIR & ALLOW EASY PLUMBING FOR THE OUTLET FROM THE HYDRO-BOOST TO THE RESERVOIR. IF YOU DO NOT HAVE A HYDRO-BOOST BRAKE SYSTEM, INSTALL THE INCLUDED AN PLUG ON THE EXTRA INLET PORT.

NOTE: HOLLEY POWER STEERING HOSE AND HOSE ENDS ARE RECOMMENDED FOR THE POWER STEERING (HIGH PRESSURE) PLUMBING. THE LOW PRESSURE FEED HOSE THAT FEEDS FLUID FROM THE BOTTOM OF THE RESERVOIR TO THE POWER STEERING PUMP MUST BE COMPATIBLE WITH POWER STEERING FLUID.

FEATURES:

• ALUMINUM CONSTRUCTION
• DUAL INLET PORTS SUPPORT HYDRO-BOOST BRAKE SYSTEMS
• FLUID BAFFLE WITH AIR SEPARATOR BUILT INSIDE RESERVOIR - REDUCES FOAMING AND BUBBLES IN POWER STEERING FLUID FOR IMPROVED STEERING PERFORMANCE
• PORT SIZES: (2) -8 ORB PORTS ON TOP (INLETS) & (1) -10 ORB PORT ON THE BOTTOM (OUTLET)

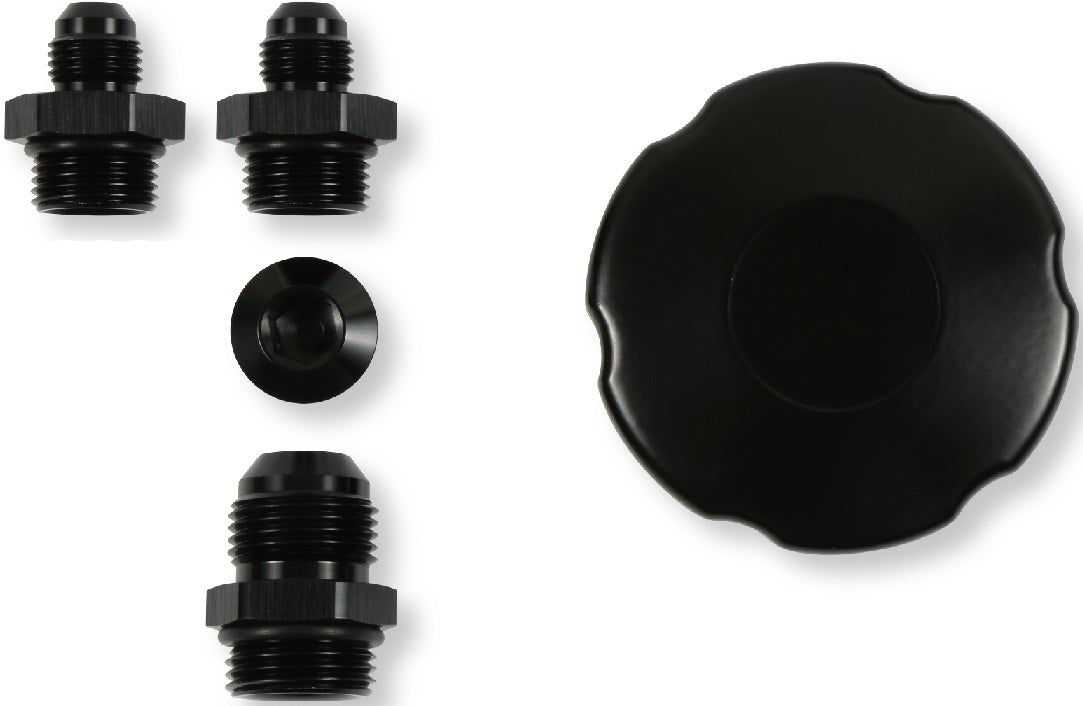

• INCLUDES FITTINGS: (2) -6 AN MALE FLARE TO -8 AN ORB, (1) -10 AN MALE FLARE TO -10 AN ORB & (1) -8 AN PORT PLUG
• VENTED CAP - ALLOWS EXCESS PRESSURE TO BE RELEASED
• INCLUDES MOUNTING BRACKET

SPECS:

• ADAPTER AN SIZE (A): 6 AN MALE
• ADAPTER AN SIZE (C): 10 AN MALE
• ADAPTER PORT SIZE (B): 3/4-16 (AN8)
• ADAPTER PORT SIZE (C): 7/8-14 (AN10)
• ADAPTER PORT SIZE (A): 3/4-16 (AN8)
• BRAND: HOLLEY
• FINISH: BLACK
• FITTINGS INCLUDED: YES
• HEIGHT (IN): 6.22
• MATERIAL: 6061-T6 ALUMINUM
• PRODUCT TYPE: POWER STEERING RESERVOIR
• WIDTH (IN): 3.63
