CARBURETOR,STREET DEMON,750CFM,VACUUM,ELECTRIC,SHINY

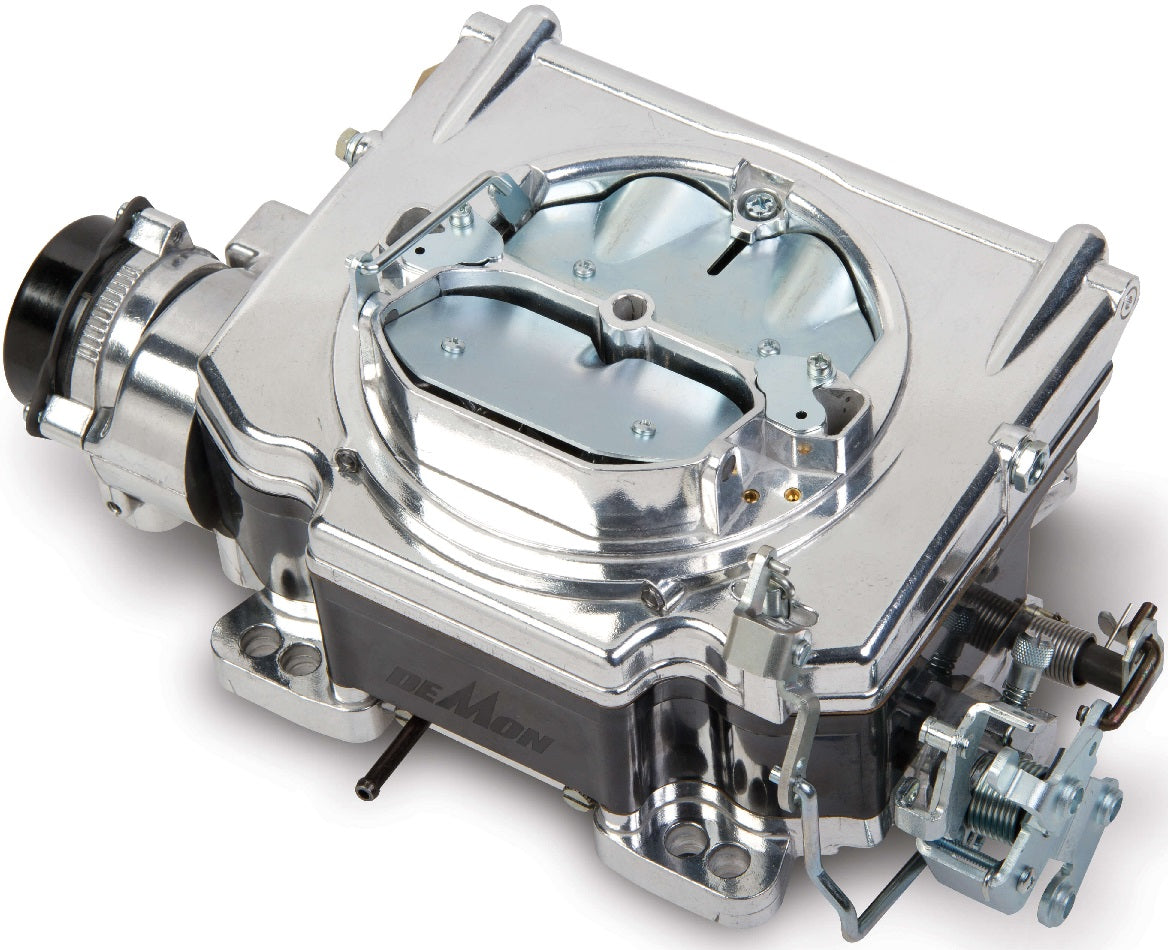

BRAND NEW HOLLEY 750 CFM STREET DEMON CARBURETOR, VACUUM SECONDARIES & ELECTRIC CHOKE, BALL-BURNISHED SHINY ALUMINUM FINISH WITH BLACK COMPOSITE FUEL BOWL

THE ALL NEW STREET DEMON REDEFINES THE STREET CARBURETOR WITH CLEAN LOOKS AND EASE OF USE! THE STREET DEMON OFFERS ENTHUSIASTS A STRAIGHT FORWARD CARBURETOR DESIGNED TO DELIVER A STABLE IDLE, AMAZINGLY CRISP THROTTLE RESPONSE AND SMOOTH PERFORMANCE. ITS OPTIMIZED CALIBRATION AND DUAL MOUNTING PATTERN MAKE IT RUN-READY FOR A LARGE VARIETY OF ENGINES AND VEHICLES.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• BALL BURNISHED SHINY ALUMINUM WITH BLACK COMPOSITE FUEL BOWL
• FOR USE ON MOST STOCK TO MILDLY MODIFIED V8 ENGINES
• ONE PIECE AIRHORN - EASY TO CLEAN & MAINTAIN
• ELECTRIC CHOKE MANAGEMENT MEANS EASY COLD STARTS
• DUAL MOUNTING BOLT PATTERN - FITS MOST AFTERMARKET SPREAD/SQUARE BORE INTAKE MANIFOLDS WITHOUT ADAPTER
• INTEGRATED FUEL BOWL/MAIN BODY DESIGN WITH GASKET ABOVE FUEL LEVEL & NO PLUGGED PASSAGES TO ELIMINATE ALL POTENTIAL LEAK PATHS
• SMALL 1-11/16" PRIMARY THROTTLE BORES COMBINED WITH PROVEN TRIPLE-STACK BOOSTERS DELIVER AMAZINGLY CRISP THROTTLE RESPONSE & DRIVABILITY, SUPERIOR FUEL ATOMIZATION & IMPROVED FUEL ECONOMY
• GOGGLE VALVE SECONDARY (GVS) THROTTLE PLATE (PATENT # D677755) DELIVERS OVER TWICE THE AIR FLOW OF THE PRIMARY BORES
• GVS MAKES TOTAL AIR FLOW 750 CFM WHILE MAINTAINING THE CRISP THROTTLE RESPONSE DELIVERED BY SMALL PRIMARY BORES
• SECONDARY AIR VALVE CONTROL - TORSION SPRING VALVE CONTROL/ADJUSTMENT PERMITS SEAMLESS PRIMARY TO SECONDARY THROTTLE RESPONSE REGARDLESS OF THE THROTTLE OPENING RATE (UNIQUE CONTOURED PROFILE DEVELOPED FOR BETTER CYLINDER TO CYLINDER FUEL DISTRIBUTION)
• 2 STAGE METERING RODS CONTROL EASILY ACCESSIBLE WITHOUT CARBURETOR DISASSEMBLY OR REMOVAL
• SINGLE FUEL INLET FOR SIMPLE INSTALLATION
• INTEGRATED 700R4/200R4 TRANSMISSION KICKDOWN CABLE MOUNTING LOCATION & FORD A/T KICKDOWN FOR PROPER SHIFTS
• PATENT PENDING MECHANICAL DESIGN
• 750 CFM SPECIFIC CALIBRATION KIT AVAILABLE FOR TUNING & ALTITUDE ADJUSTMENTS
AVAILABLE TPS KIT ALLOWS USE WITH 4L60 & 4L80 TRANSMISSIONS

SPECS:

• BARRELS: 4
• BOOSTER: TRIPLE STACK
• BRAND: DEMON
• CFM: 750
• CHOKE: ELECTRIC
• CONDITION: NEW
• EMISSION CODE: 3
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MARINE USE: NO
• MATERIAL: ALUMINUM / COMPOSITE
• METERING ROD SIZE: 56/40
• MODEL: STREET DEMON
• PRIMARY MAIN JET: 89
• PRIMARY PUMP NOZZLE SIZE: 40
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: VACUUM
• SECONDARY MAIN JET: 86
• STEP UP SPRING: GREEN
• SUPERCHARGED APPLICATION: NO
• VACUUM PORTS: 1 TIMED (SPARK) PORT, 2 FULL, AND 1 PCV PORT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE, THE IMPORTANT NOTICE HERE, AND THE CARBURETOR NUMERICAL LISTING HERE.
