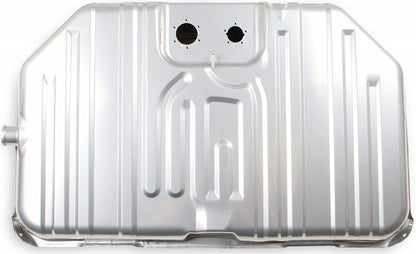

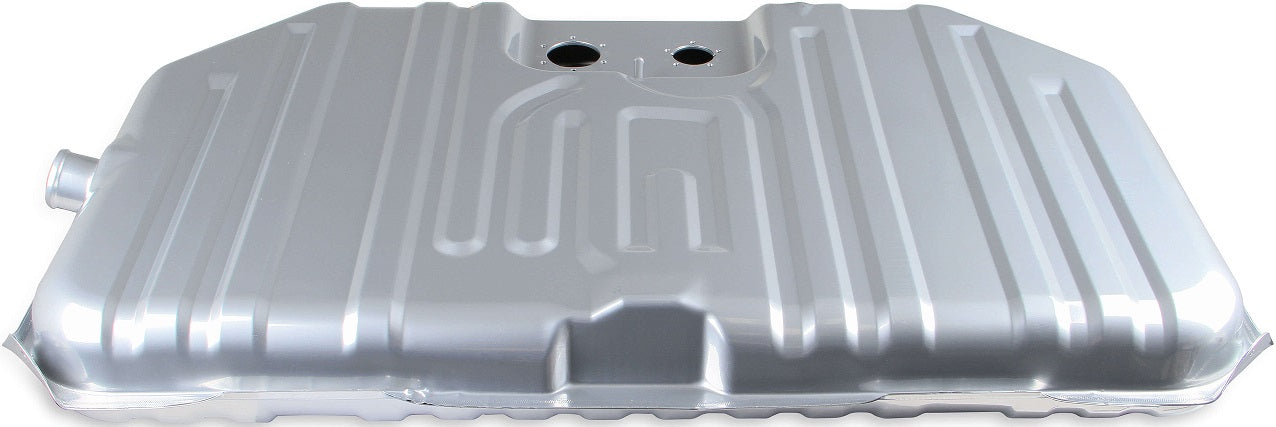

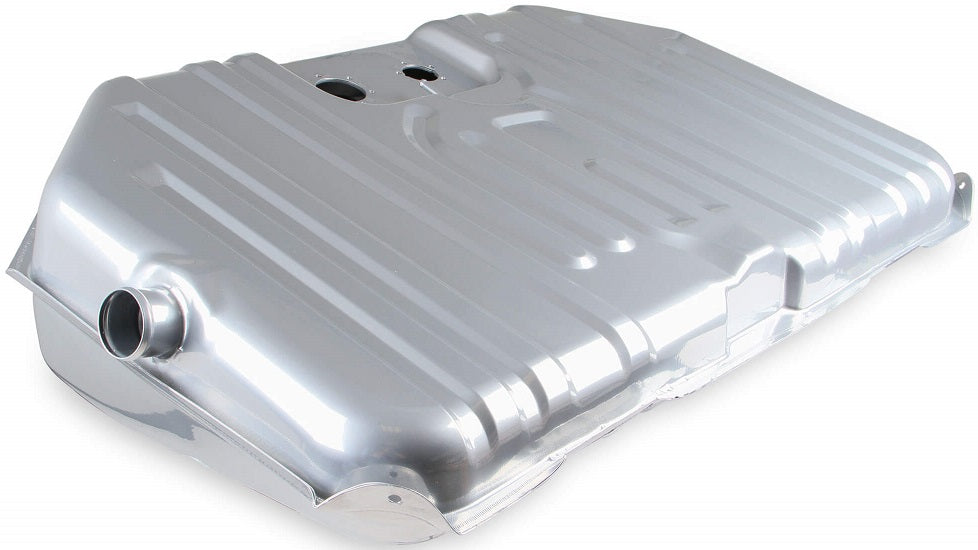

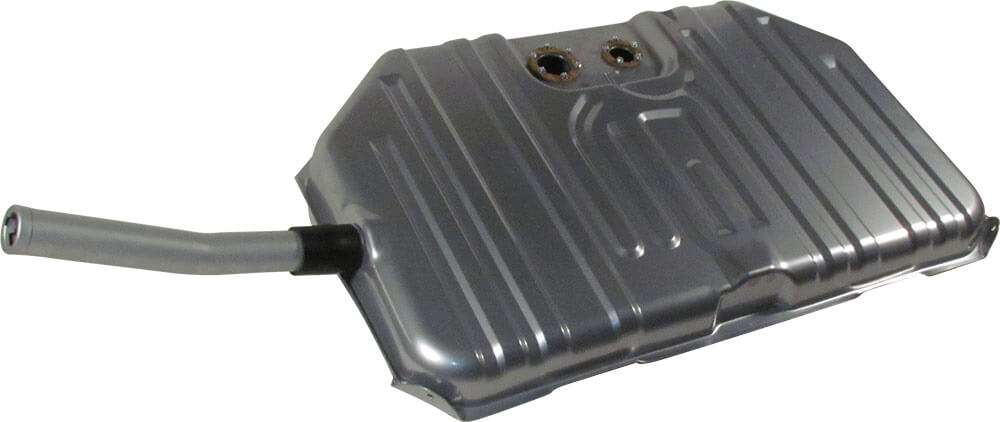

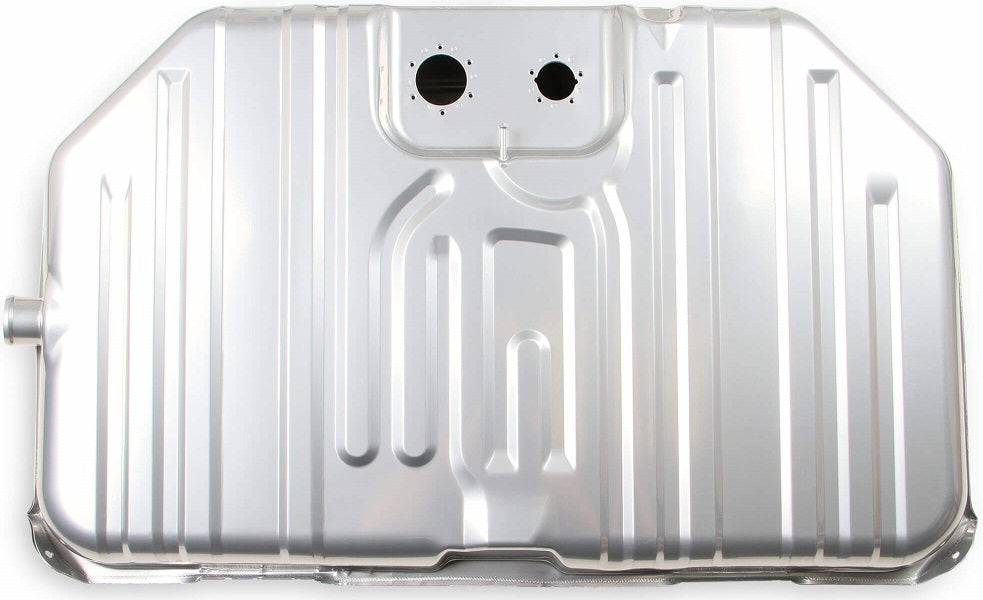

1968-72 EL CAMINO EFI NOTCHED TANK

BRAND NEW HOLLEY EFI FUEL TANK SYSTEM WITH NOTCHED FRONT CORNERS, 255 LPH FUEL PUMP MODULE, COMPATIBLE WITH 1968-1972 CHEVY EL CAMINO

FUEL TANK IS A DIRECT FIT FOR YOUR APPLICATION WITH NO BODY MODIFICATIONS NECESSARY. INCLUDES THE TANK, 255 LPH FUEL PUMP, FUEL LEVEL SENDER, NEW TANK STRAPS & FILLER NECK. POWDER COATED FOR CORROSION RESISTANCE. THIS NOTCHED CORNER TANK IS PERFECT FOR MINI-TUB APPS. BOTH CORNERS ARE NOTCHED 7" IN & 7" BACK FOR BETTER TIRE & EXHAUST CLEARANCE. TANK REAR IS STOCK DEPTH& THE FRONT IS 1" DEEPER THAN STOCK. 255 LPH FUEL PUMP SUPPORTS UP TO 550 EFI (@ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW)

NOTE: THE GM A BODY FUEL TANKS, PLEASE PAY SPECIAL ATTENTION TO THE INSTRUCTIONS WHEN ASSEMBLING YOUR FUEL GAUGE SENDER. YOU MAY NEED TO REMOVE ONE OF THE MOUNTING SCREWS IN THE ASSEMBLY TO REACH YOUR DESIRED HEIGHT AS MENTIONED IN THE INSTRUCTIONS

NOTE: GM OFFERED TWO DEPTHS OF FUEL TANK CAPS. IF YOU HAVE THE DEEP REACH (1 3/8"), YOU MAY HAVE TO SWITCH TO THE SHALLOW REACH CAP (1 1/4") DEPENDING ON YOUR APPLICATION. STANT # 10646 - SHALLOW -STANT # 10806 - DEEP.

FEATURES:

• FUEL TANK IS COATED GALVANIZED STEEL & POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER FEATURES 1/4" NPT (NATIONAL PIPE TAPERED) THREADED SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
• FUEL PUMP AND SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALLATION AND NO MODIFICATION TO VEHICLE
• INTERNAL TANK BAFFLING INCLUDES A 4.8 L INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• NEW TANK STRAPS INCLUDED
• NOTCHED FRONT CORNERS FOR INSTALLING MINI-TUBS TO GAIN WIDER TIRE & EXHAUST CLEARANCE
• TANK DIMENSIONS: 39-1/4" X 24-1/2" X 8-3/4"

SPECS:

• APPLICATION: 1968-1972 CHEVY EL CAMINO
• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• DRAIN PLUG: NO
• FINISH: POWDERCOATED
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GASOLINE
• GALLON CAPACITY: 20
• NEW STRAPS INCLUDED: YES
• PRODUCT TYPE: FUEL TANK

YOU CAN VIEW AND DOWNLOAD THE QUICKSTART INSTRUCTIONS FOR THIS FUEL TANK HERE.
