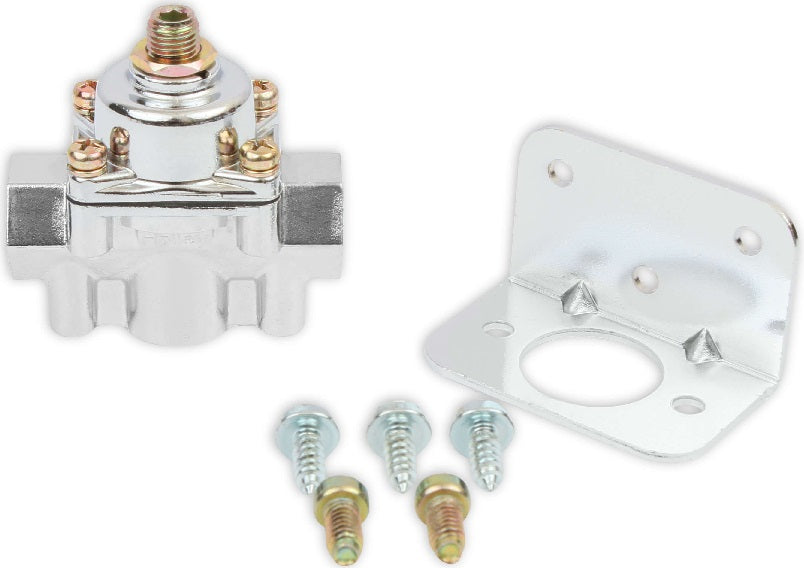

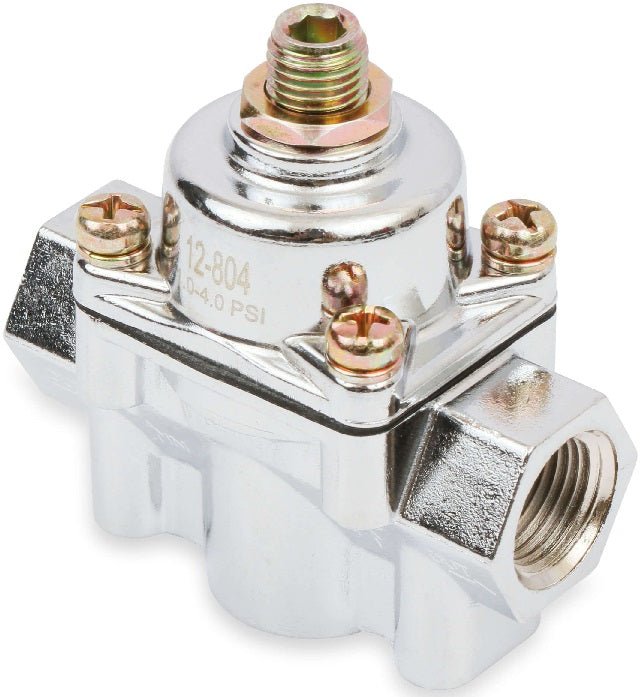

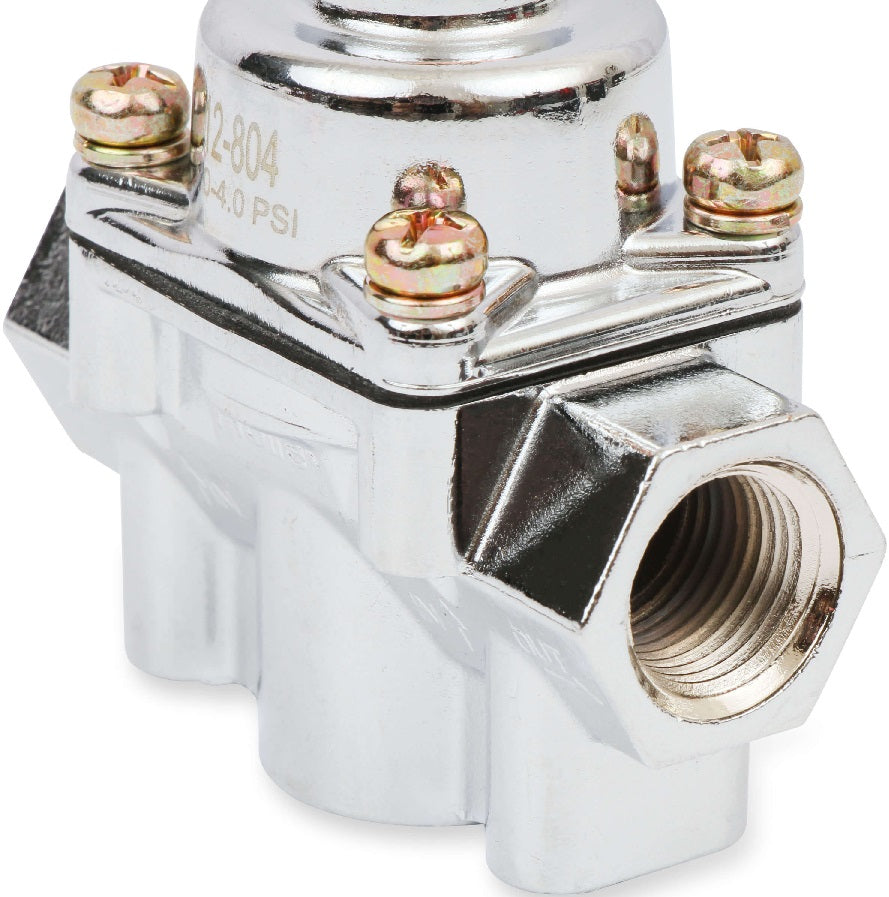

REGULATOR,FUEL PRESSURE,1>4 PSI

BRAND NEW HOLLEY CARBURETED FUEL PRESSURE REGULATOR, CHROME FINISH, 2 PORT ADJUSTABLE FROM 1-4 PSI, COMPATIBLE WITH GASOLINE

HOLLEY FUEL PRESSURE REGULATORS ARE DESIGNED TO PRECISELY CONTROL THE FUEL PRESSURE FROM THE FUEL PUMP TO THE CARBURETOR. TOO MUCH FUEL PRESSURE FOR A GIVEN NEEDLE AND SEAT ASSEMBLY CAN OVERLOAD THE NEEDLE AND SEAT AND MAY CAUSE FLOODING OR DRIVABILITY PROBLEMS.

EACH HOLLEY FUEL PRESSURE REGULATOR IS FULLY ADJUSTABLE SO REGULATING THE FUEL PRESSURE TO YOUR ENGINES NEEDS IS A SIMPLE TASK. ALL HOLLEY REGULATORS ARE PRE-SET AT THE FACTORY AT 2.8 PSI SO THERE IS NO GUESSWORK WHEN FIRST INSTALLING THE REGULATOR. FEATURES 3/8" NPT IN/OUT PORTS.

NOTE: PRE-SET AT 2.8 PSI. INLET PRESSURE LIMITATION IS 7 PSI.

FEATURES:

• ADJUSTABLE FUEL REGULATION FROM 1 TO 4 PSI
• .220" (7/32") RESTRICTION
• 3/8" NPT PORTS ( 1 IN, 2 OUT)
• CHROME FINISH

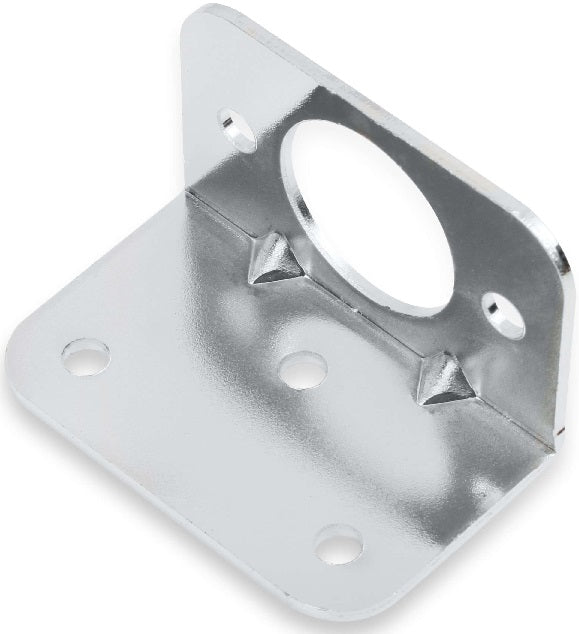

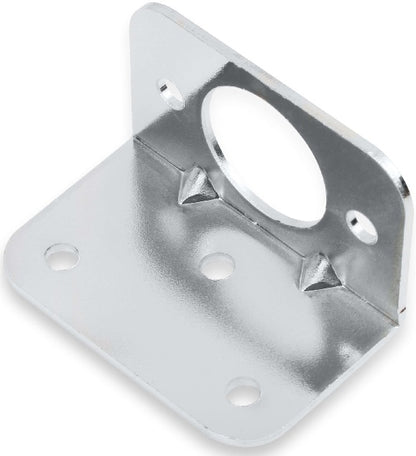

• MOUNTING BRACKET INCLUDED
• PRE-SET AT 2.8 PSI

SPECS:

• COLOR: SHINY
• FUEL SYSTEM: GASOLINE
• INLET & OUTLET SIZE: 3/8" NPT
• MATERIAL: ALUMINUM
• PRESSURE RANGE: 1-4 PSI
• PRODUCT TYPE: FUEL PRESSURE REGULATOR
• RETURN SIZE: N/A
• STYLE: NON-RETURN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PRESSURE REGULATOR HERE.
