SNIPER 340LPH PUMP MODULE,88-98 CHEVY TRUCK

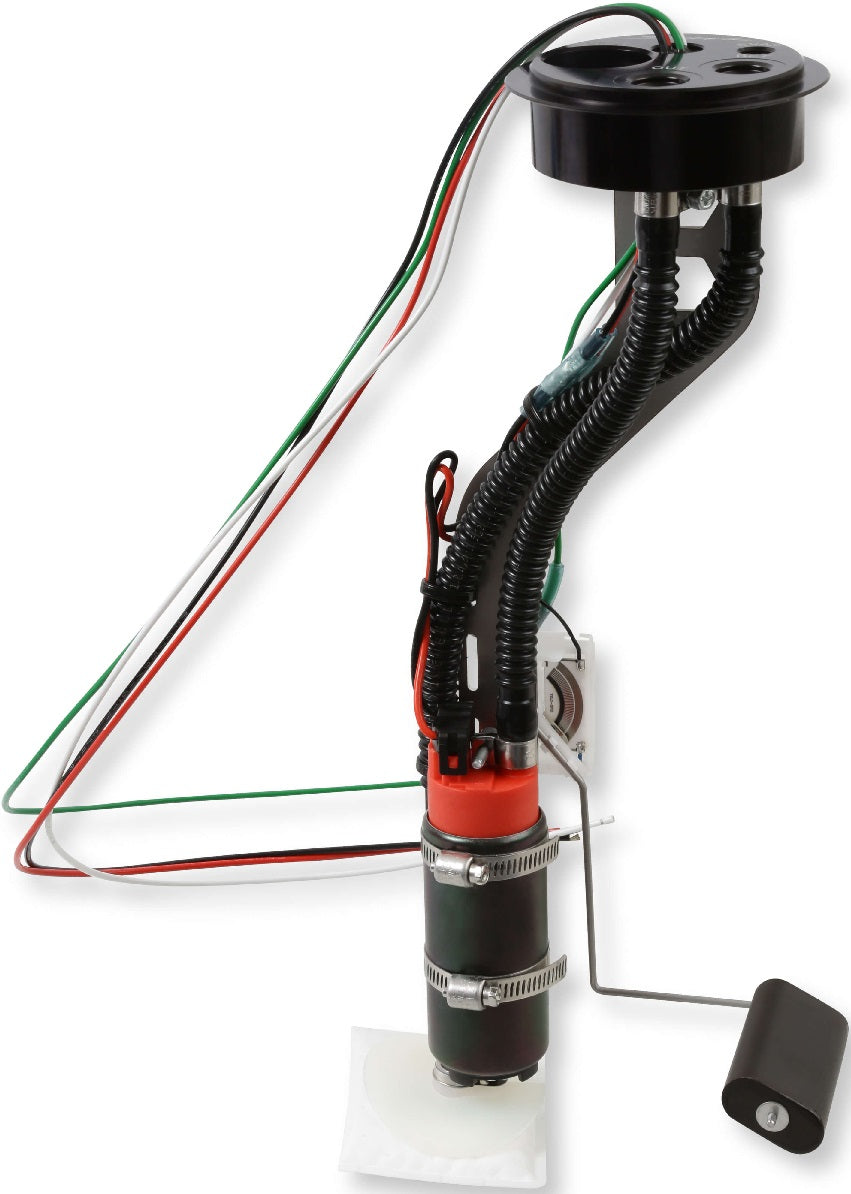

Brand New Holley Sniper 340 LPH Fuel Pump Module, Black Finish, Compatible with 1988-1998 GM C/K Trucks (Holley Part #12-353).

This direct fit fuel pump module will drop directly into any 1988-1998 GM C/K Series truck EFI fuel tank. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish.

NOTE: Recommended Regulators (Holley 12-879, 12-880).

Compatible with:

• Chevrolet:
• 1988 C15
• 1988-1998 C1500
• 1988-1998 C2500
• 1988-1998 C3500
• 1988-1998 K1500
• 1988-1998 K2500
• 1988-1998 K3500
• GMC:
• 1988-1998 C1500
• 1988-1998 C2500
• 1988-1998 C3500
• 1988-1998 K1500
• 1988-1998 K2500
• 1988-1998 K3500

Features:

• The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower
• For the 1988-1998 GM Trucks, we also offer the unit with a 525 LPH pump which supports up to 1200 EFI horsepower
• Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application

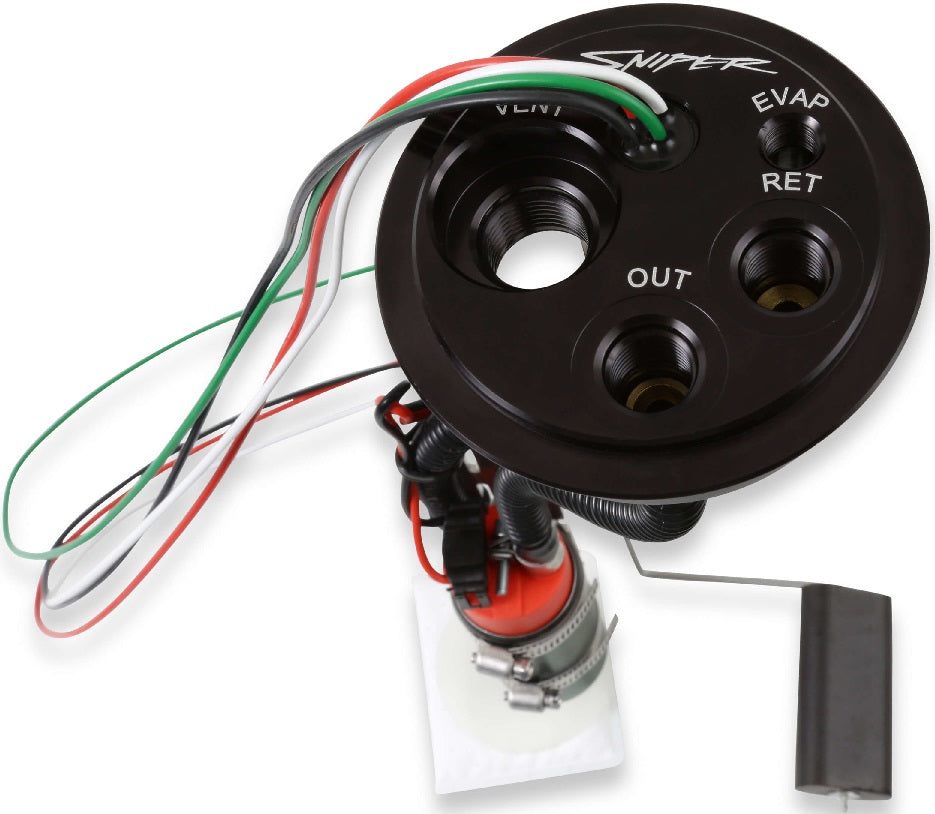

• 6AN o-ring outlet and return ports for easy plumbing connections

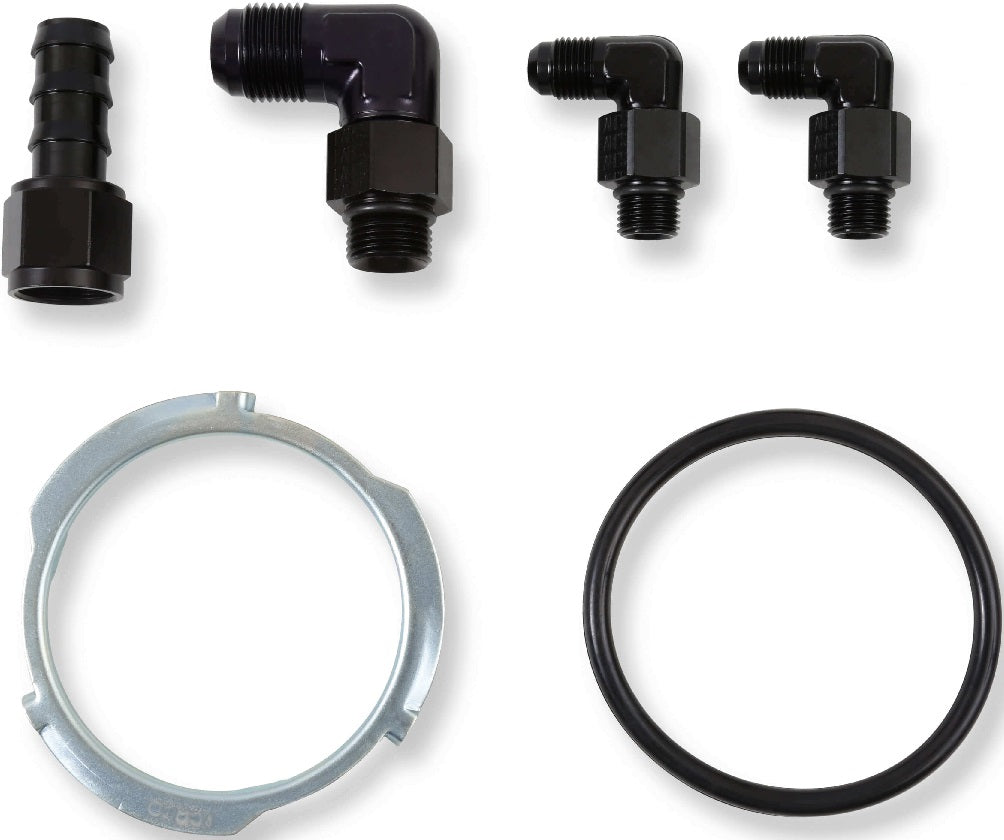

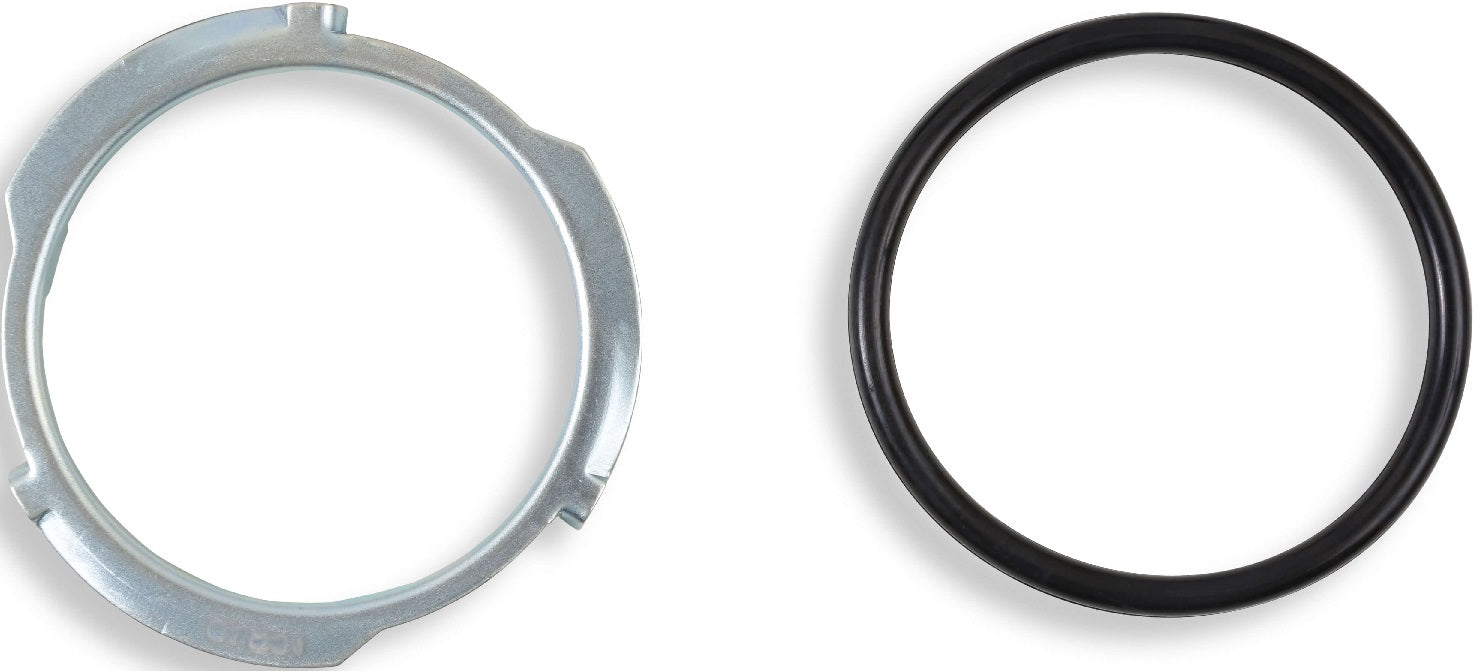

• Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need

Specs:

• Application: 1988-1998 GM C/K Trucks
• Brand: Holley Sniper
• Free Flow LPH: 340
• Fuel Type: Gasoline/E85 Compatible
• Material: 6061-T6 Aluminum
• Product Type: Fuel Pump Module

You can view and download the complete assembly instruction booklet here.
