EFI PUMP MODULE ASSEMBLY,DUAL 450 LPH,12 BOLT

BRAND NEW HOLLEY FUEL CELL EFI PUMP MODULE ASSEMBLY, 12-BOLT FLANGE, DUAL 450 LPH DROP-IN EFI, COMPATIBLE WITH GASOLINE AND E85

HOLLEY IS EXCITED TO INTRODUCE OUR HOLLEY FUEL CELL EFI PUMP MODULES. WHILE THE NAME INCLUDES EFI, THESE MODULES CAN BE USED AS AN UPGRADE FOR CARBURETED SYSTEMS AS WELL WITH THE PROPER REGULATOR. THE MODULES WERE DESIGNED TO DROP IN AS A DIRECT REPLACEMENT FOR YOUR EXISTING 12 BOLT FLANGE FUEL CELL CAP ASSEMBLY. THE MODULE KITS INCLUDE ALL THE HARDWARE TO INSTALL INTO YOUR EXISTING FUEL CELL. ALL THAT YOU NEED TO ADD IS YOUR FUEL LINE.

NOTE: COMPATIBLE WITH COMMON RJS, JAZ, SUMMIT, JEGS, RCI, SPEEDMASTER AND SPEEDWAY FUEL CELLS.

NOTE: SUPPORTS UP TO 1750 EFI OR 2200 CARB HP (@ 60 PSI AT 13.5 VOLTS / 16.9 AMP DRAW).

FEATURES:

• UPDATE YOUR FUEL CELL TO EFI THE EASY WAY
• DESIGNED TO DROP RIGHT INTO YOUR EXISTING 12 BOLT FLANGE FUEL CELL

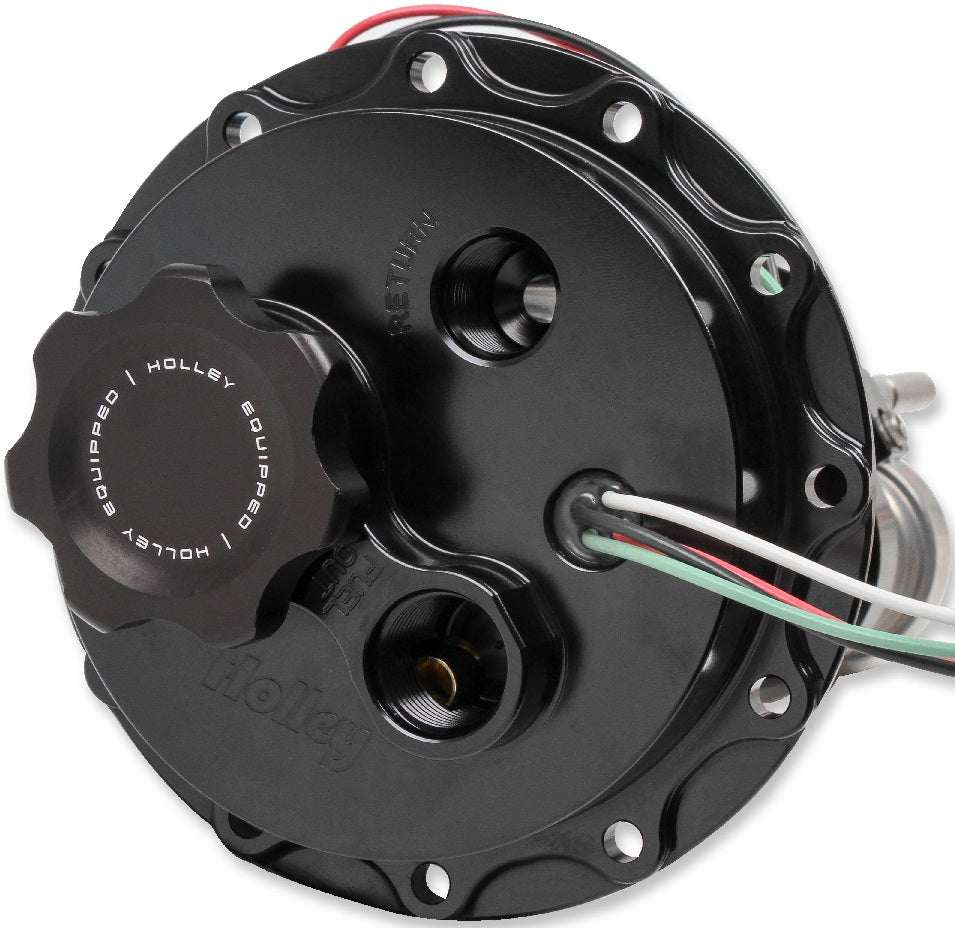

• BILLET TOP FLANGE HOUSING INCLUDES AN 8AN INLET AND 10AN OUTLET PORT AND A FUEL FILLER CAP

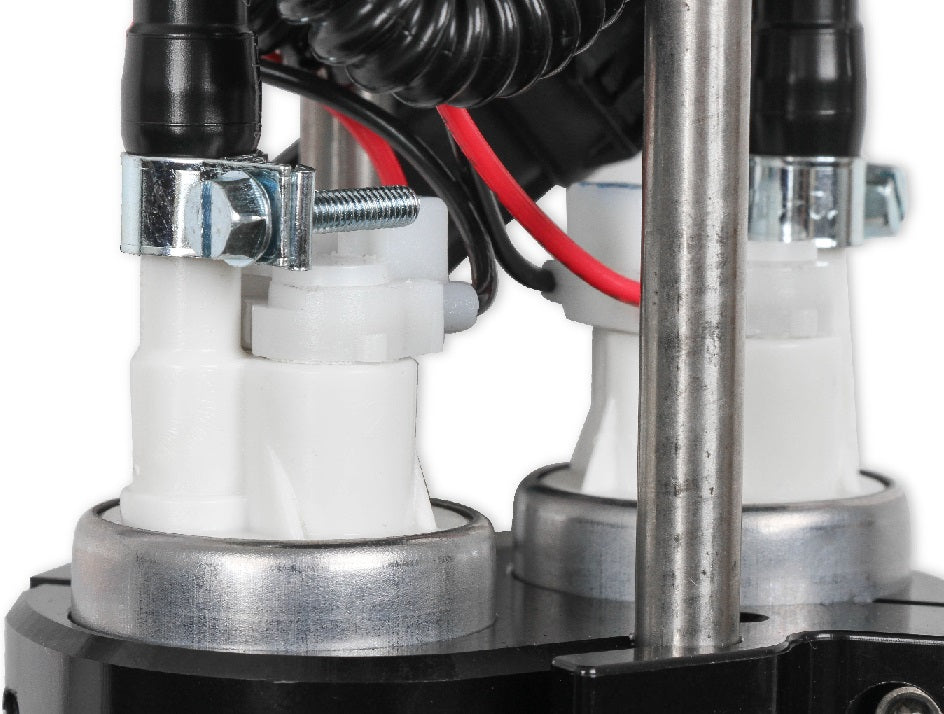

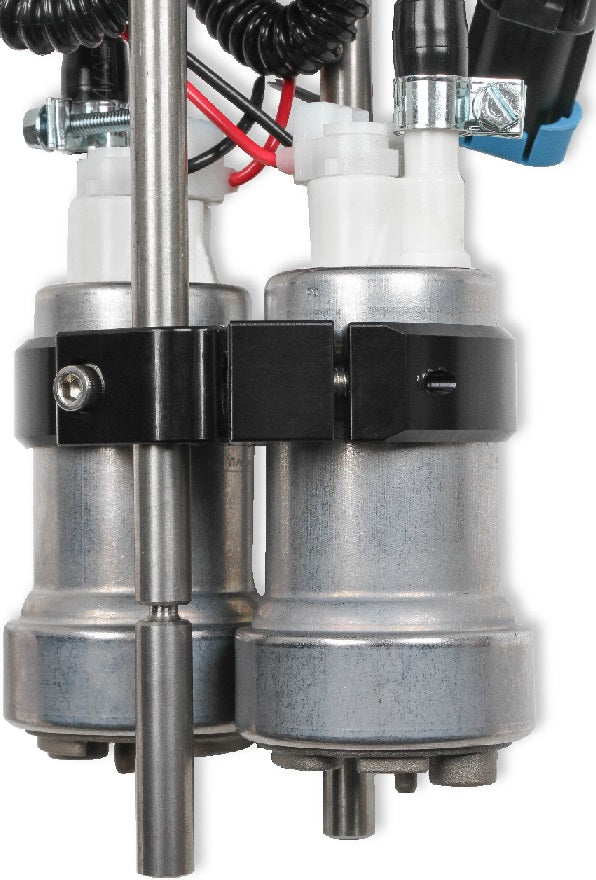

• MODULE WITH DUAL 450 LPH FUEL PUMPS CONFIGURATIONS

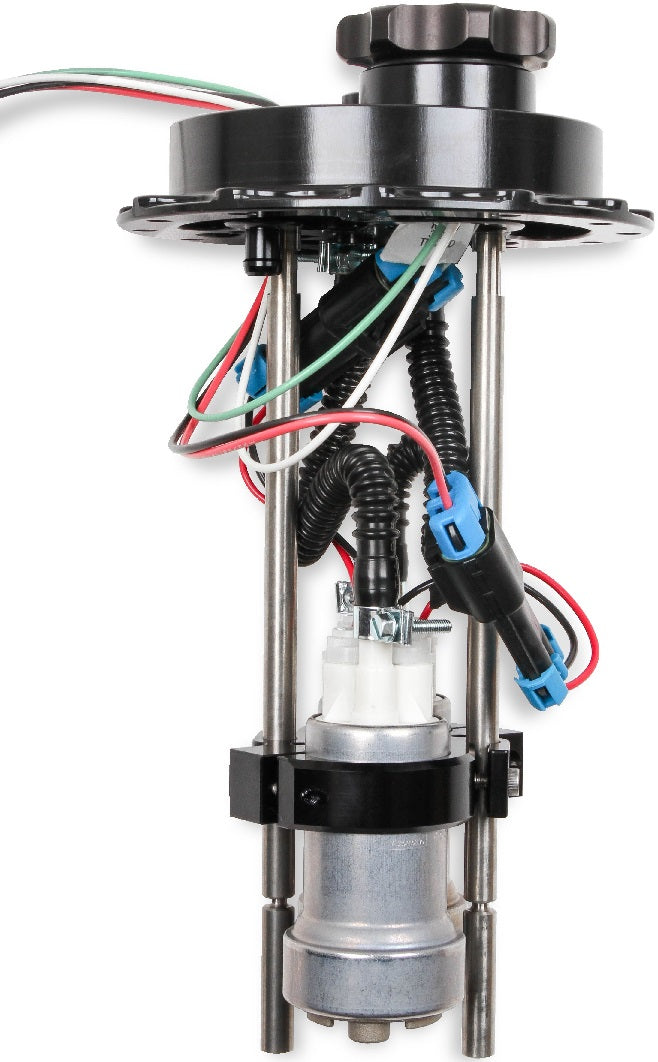

• PUMP DEPTH IS FULLY ADJUSTABLE FOR FITMENT IN MOST POPULAR CELL SIZES 7.5"-12" DEEP

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: HOLLEY
• FLANGE STYLE: 12 BOLT
• FREE FLOW GPH: 230
• FREE FLOW LPH: DUAL 450
• FUEL TYPE: E85 | GASOLINE
• INLET SIZE: 8 AN
• MAX PSI: 87
• OUTLET SIZE: 10 AN
• PRODUCT TYPE: FUEL PUMP
• SINGLE OR DUAL PUMP: DUAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP HERE.
