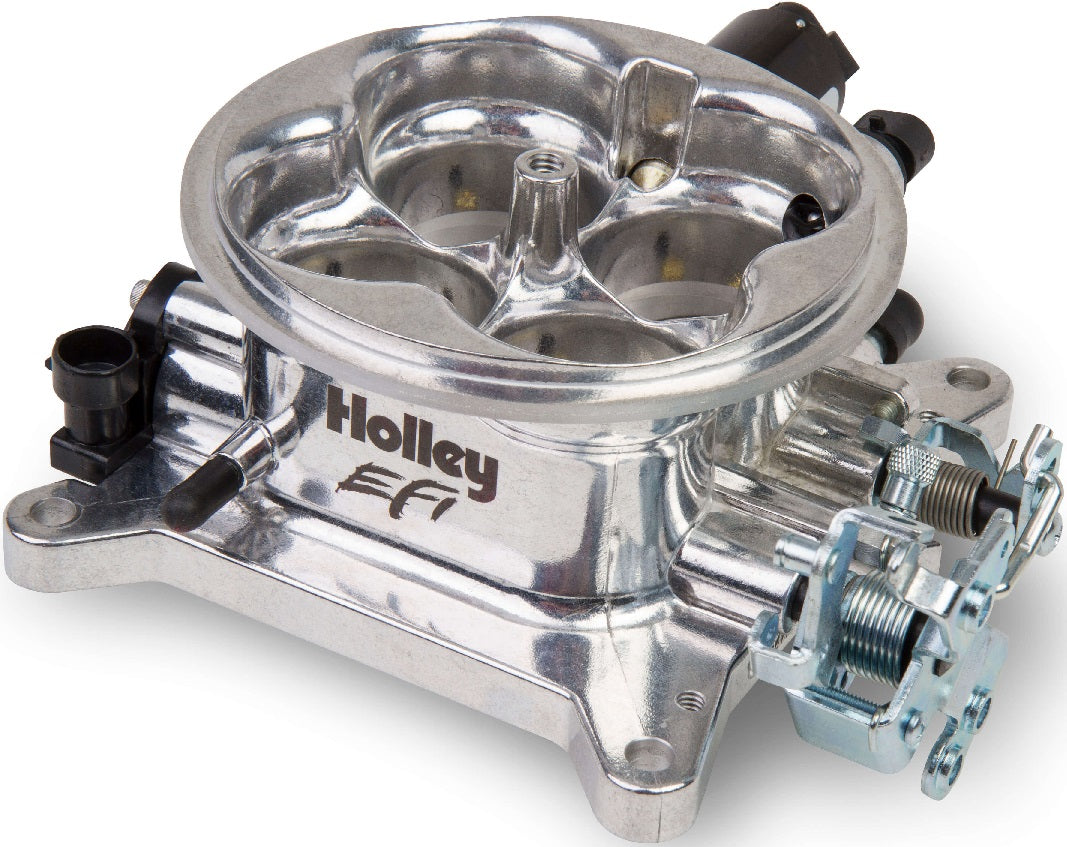

THROTTLE BODY,4150,4 BBL,1000CFM,POLISHED

BRAND NEW HOLLEY UNIVERSAL THROTTLE BODY, 4BBL, 1000 CFM, 4150 FLANGE, POLISHED FINISH

THE NEW HOLLEY 1000 CFM THROTTLE BODY SHARES THE SAME AIR ENTRY AREA DESIGN THAT POWERS EVERY NASCAR SPRINT CUP SERIES CAR! THE THROTTLE BODY FEATURES INTEGRATED THROTTLE POSITION, IDLE AIR CONTROL & INTAKE AIR TEMPERATURE SENSORS, FORD & GM TRANSMISSION KICK DOWN LEVERS AS WELL AS ALL NECESSARY VACUUM PORTS.

NOTE: THIS THROTTLE BODY IS AN AIR VALVE ONLY (NO INJECTORS).

FEATURES:

• STANDARD SQUARE BORE MOUNTING PATTERN FOR INSTALLATION ON MANY INTAKE MANIFOLDS
• FLOWS 1000 CFM TO HANDLE HIGH HORSEPOWER ENGINES
• EXCLUSIVE CFD COMPUTER MODELED AIR ENTRY AREA DELIVERS MAXIMUM VELOCITY & ACCELERATED AIR SPEED
• INTEGRATED TPS, IAC & AIR TEMPERATURE SENSOR
• HI FLOW IAC PASSAGES FOR LARGE CUBIC INCH ENGINES FOR IDLE STABILITY
• FORD TRANSMISSION KICK DOWN LEVER FOR USE WITH FORD AUTOMATIC TRANSMISSIONS
• INTEGRATED GM 700R4 TRANSMISSION KICK DOWN LOCATION NO ADAPTERS NEEDED
• ALL NECESSARY VACUUM PORTS (1) TIMED SPARK, (2) 3/8" & (2) 3/16" FULL MANIFOLD VACUUM PORTS
• 1.75" THROTTLE PLATES MOUNTED TO PTFE COATED THROTTLE SHAFTS FOR HIGH FLOW & A SMOOTH FEEL
• HIGH QUALITY DIE CAST ALUMINUM FOR STRENGTH & WEIGHT REDUCTION
• TUMBLE POLISHED FINISH

SPECS:

• BARRELS: 4
• BRAND: HOLLEY EFI
• CFM: 1000
• EMISSION CODE: 3
• HEIGHT: 2.80"
• PRODUCT TYPE: THROTTLE BODY
• THROTTLE BORE: 1.750"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS THROTTLE BODY ADAPTER HERE.
