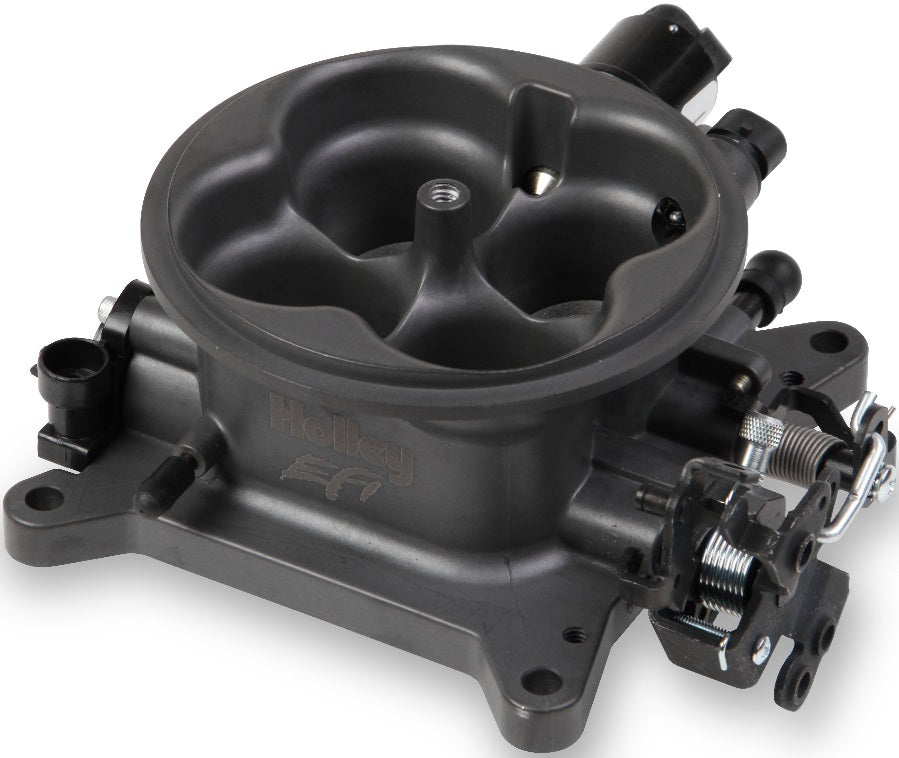

THROTTLE BODY,4150,4 BBL,1000CFM,HARD GRAY

BRAND NEW HOLLEY UNIVERSAL 4BBL 1000CFM 4150 FLANGE THROTTLE BODY, HARD CORE GRAY FINISH (PART #112-587).

HOLLEYS NEW 1000 CFM THROTTLE BODY SHARES THE SAME AIR ENTRY AREA DESIGN THAT POWERS EVERY NASCAR SPRINT CUP SERIES CAR! THE THROTTLE BODY FEATURES INTEGRATED THROTTLE POSITION, IDLE AIR CONTROL AND INTAKE AIR TEMPERATURE SENSORS, FORD AND GM TRANSMISSION KICK DOWN LEVERS AS WELL AS ALL NECESSARY VACUUM PORTS.

FEATURES:

• STANDARD SQUARE BORE MOUNTING PATTERN FOR INSTALLATION ON MANY INTAKE MANIFOLDS
• FLOWS 1000 CFM TO HANDLE HIGH HORSEPOWER ENGINES
• EXCLUSIVE CFD COMPUTER MODELED AIR ENTRY AREA DELIVERS MAXIMUM VELOCITY AND ACCELERATED AIR SPEED
• INTEGRATED TPS, IAC, AND AIR TEMPERATURE SENSOR
• HI FLOW IAC PASSAGES FOR LARGE CUBIC INCH ENGINES FOR IDLE STABILITY
• FORD TRANSMISSION KICK DOWN LEVER FOR USE WITH FORD AUTOMATIC TRANSMISSIONS
• INTEGRATED GM 700R4 TRANSMISSION KICK DOWN LOCATION NO ADAPTERS NEEDED
• ALL NECESSARY VACUUM PORTS (1) TIMED SPARK, (2) 3/8" AND (2) 3/16" FULL MANIFOLD VACUUM PORTS
• 1.75" THROTTLE PLATES MOUNTED TO PTFE COATED THROTTLE SHAFTS FOR HIGH FLOW AND A SMOOTH FEEL
• HIGH QUALITY DIE CAST ALUMINUM FOR STRENGTH AND WEIGHT REDUCTION
• HARD CORE GRAY FINISH

SPECS:

• BARRELS: 4
• BRAND: HOLLEY EFI
• CFM: 1000
• PRODUCT TYPE: THROTTLE BODY
• THROTTLE BORE: 1.750 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
