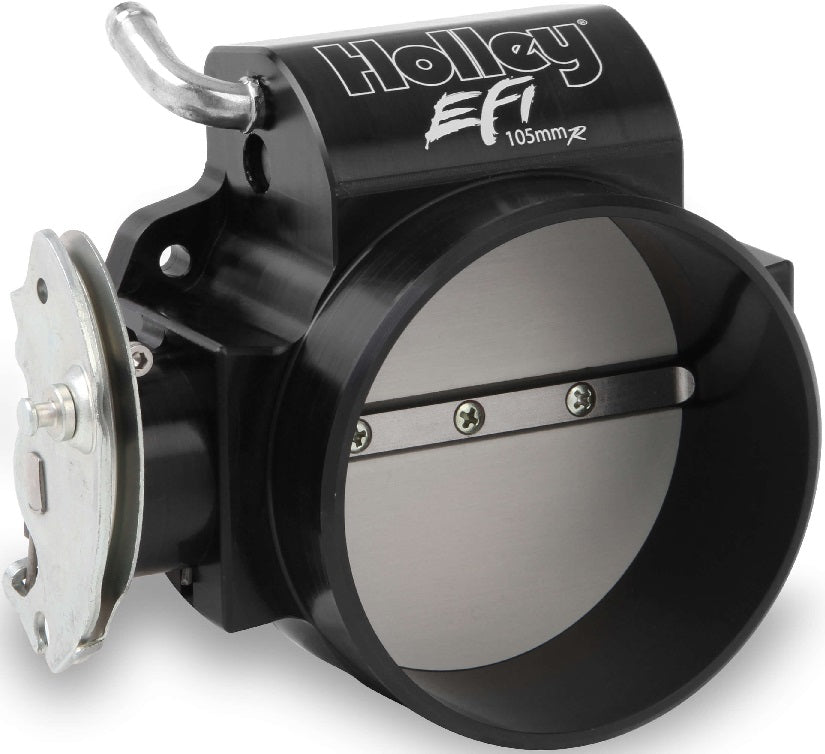

THROTTLE BODY,105MM,STRAIGHT BORE,LS

BRAND NEW HOLLEY 105MM LS THROTTLE BODY STRAIGHT BORE WITH CABLE DRIVE, BLACK FINISH

HOLLEY BILLET LS THROTTLE BODIES ARE THE BIGGEST BORE & MOST FEATURE LOADED AVAILABLE. HOLLEY WENT BACK TO THE DRAWING BOARD & BUILT THE ULTIMATE AIR VALVE FOR YOUR LS ENGINE! THIS ALL NEW DESIGN BOASTS A HUGE 105 MILLIMETER BORE FOR WHEN WOT IS ALL THAT MATTERS. INNOVATIVE FEATURES LIKE IDLE BLEED ADJUSTMENT, TPS CLOCKER & CLOSABLE PCV PASSAGE VALVE, MAKE THEM THE ULTIMATE THROTTLE BODIES FOR EASE OF INSTALL & TUNING.

REGARDLESS OF WHETHER YOU HAVE A TURBO, SUPERCHARGER, OR A BIG CAM ENGINE SUCKING GULPS OF AIR, HOLLEY THROTTLE BODIES ARE MAXIMIZED FOR YOUR APPLICATION. THE BARRIER PROTECTION OF THE BLACK ANODIZED FINISH ALSO OFFERS UP A MODERN TECH LOOK!

FEATURES:

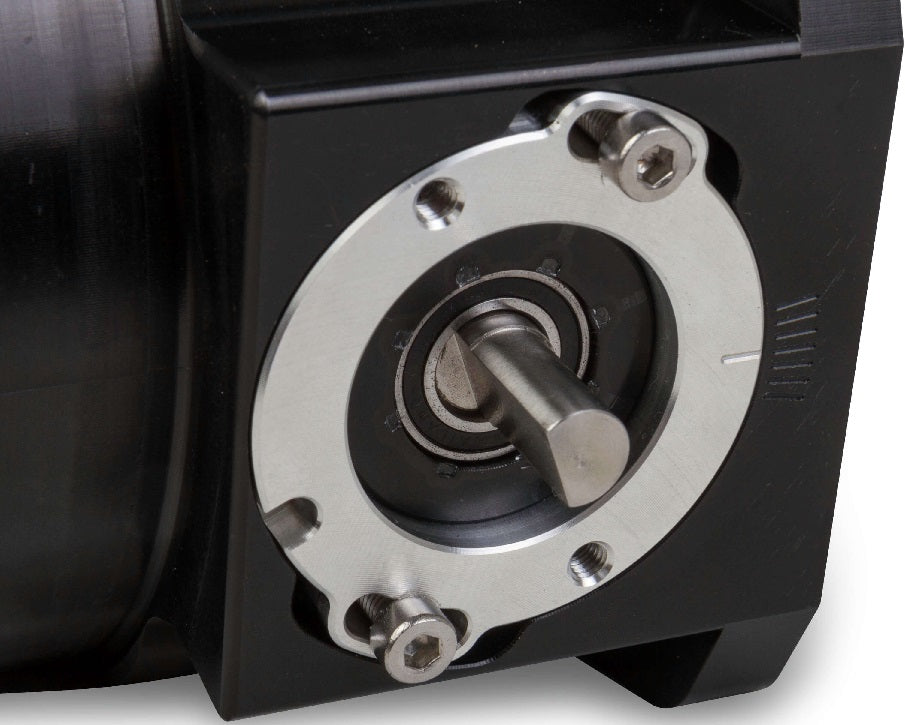

• TPS CLOCKER ALLOWS THE TPS TO BE ROTATED BACK INTO THE ECU REQUIRED IDLE VOLTAGE RANGE.
• MODIFIED ENGINES NO LONGER SUFFER FROM PROBLEMS RELATED TO TPS VOLTAGE!

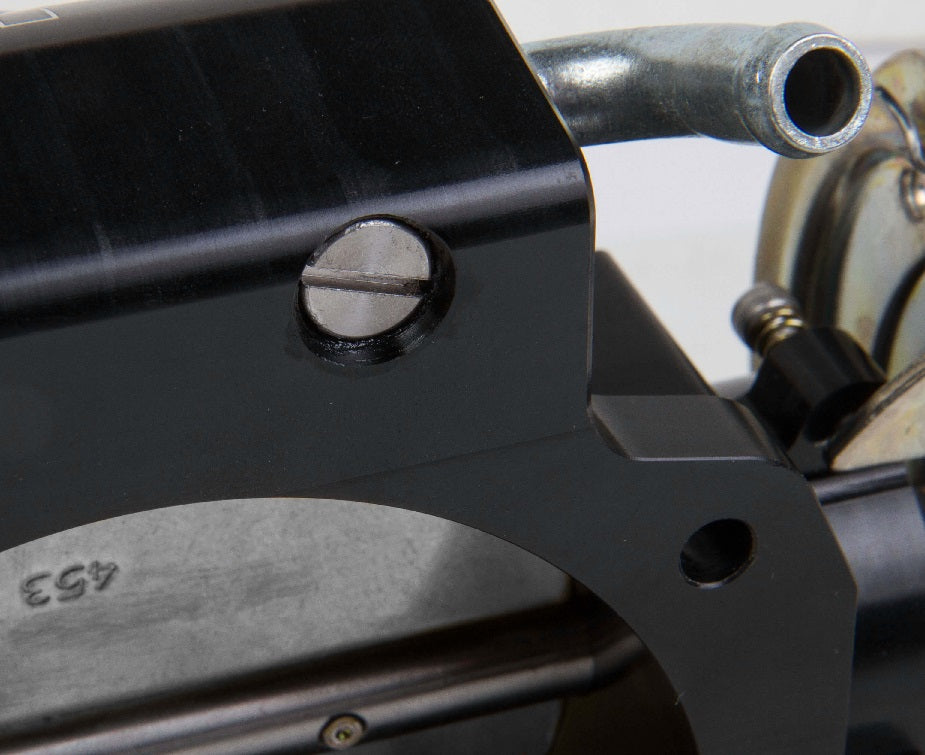

• IDLE BLEED ALLOWS ADJUSTMENT OF YOUR IDLE WITHOUT AFFECTING THROTTLE POSITION OR TPS VOLTAGES AT IDLE!

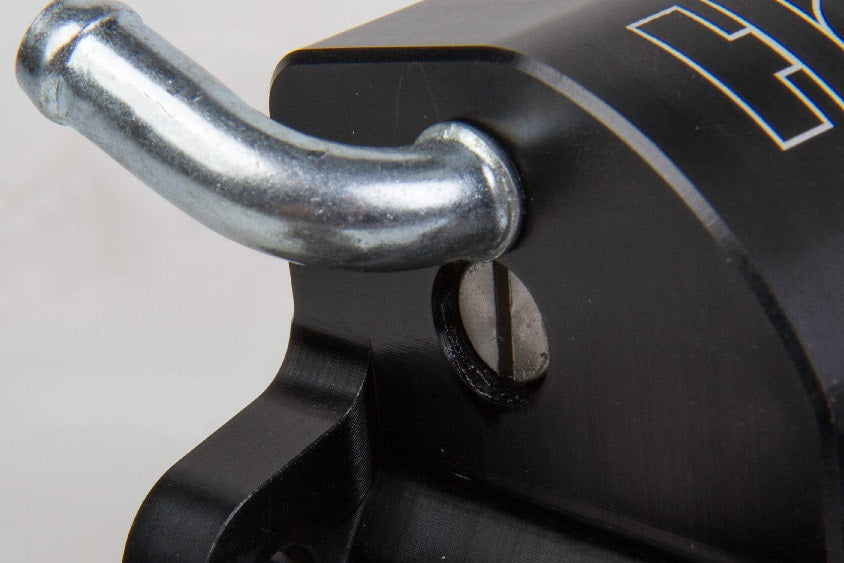

• PCV PASSAGE VALVE CLOSES TO ACCOMMODATE FORCED INDUCTION APPLICATIONS! NO MORE PLUGGING TO BLOCK OFF PCV!
• OVERSIZED BORE COMPARED TO OTHER LS THROTTLE BODIES
• STRAIGHT BORE (NO TAPER) MINIMIZES TURBULENCE & MAXIMIZES AIRFLOW FOR RACE APPLICATIONS
• PREMIUM BILLET BODY SUPPORTS THE HIGH TOLERANCE DESIGN & LOOK YOUR PERFORMANCE ENGINE DESERVES!
• BLACK ANODIZED FINISH FOR SUPERIOR CORROSION RESISTANCE & SERIOUS GOOD LOOKS
• CRUISE CONTROL PROVISION BUILT IN FOR CRUISE CONTROL CABLE
• CABLE DRIVE APPLICATION
• FITS THE FOLLOWING INTAKE MANIFOLDS: HOLLEY 105MM HI-RAM, FAST LSXR & LSXRT, MSD ATOMIC AIRFORCE, MOST OTHER 102 THROUGH 105MM LS INTAKES USING 4 BOLT TBS

SPECS:

• BILLET COLOR: BLACK
• BRAND: HOLLEY EFI
• EMISSION CODE: 8
• MATERIAL: BILLET ALUMINUM
• PRODUCT TYPE: BILLET 105MM LS THROTTLE BODY
• THROTTLE BORE: 105MM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS THROTTLE BODY ADAPTER HERE.
