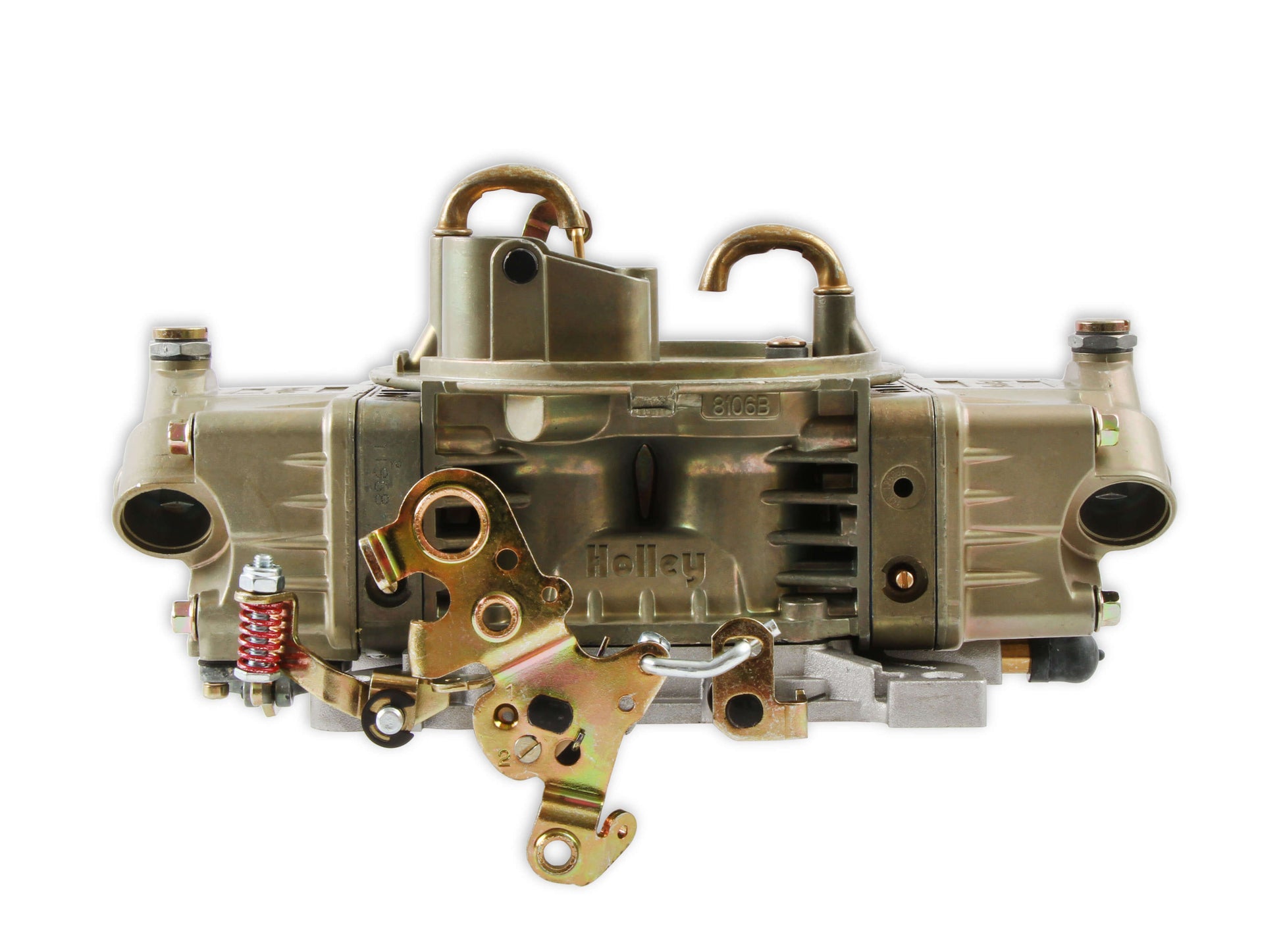

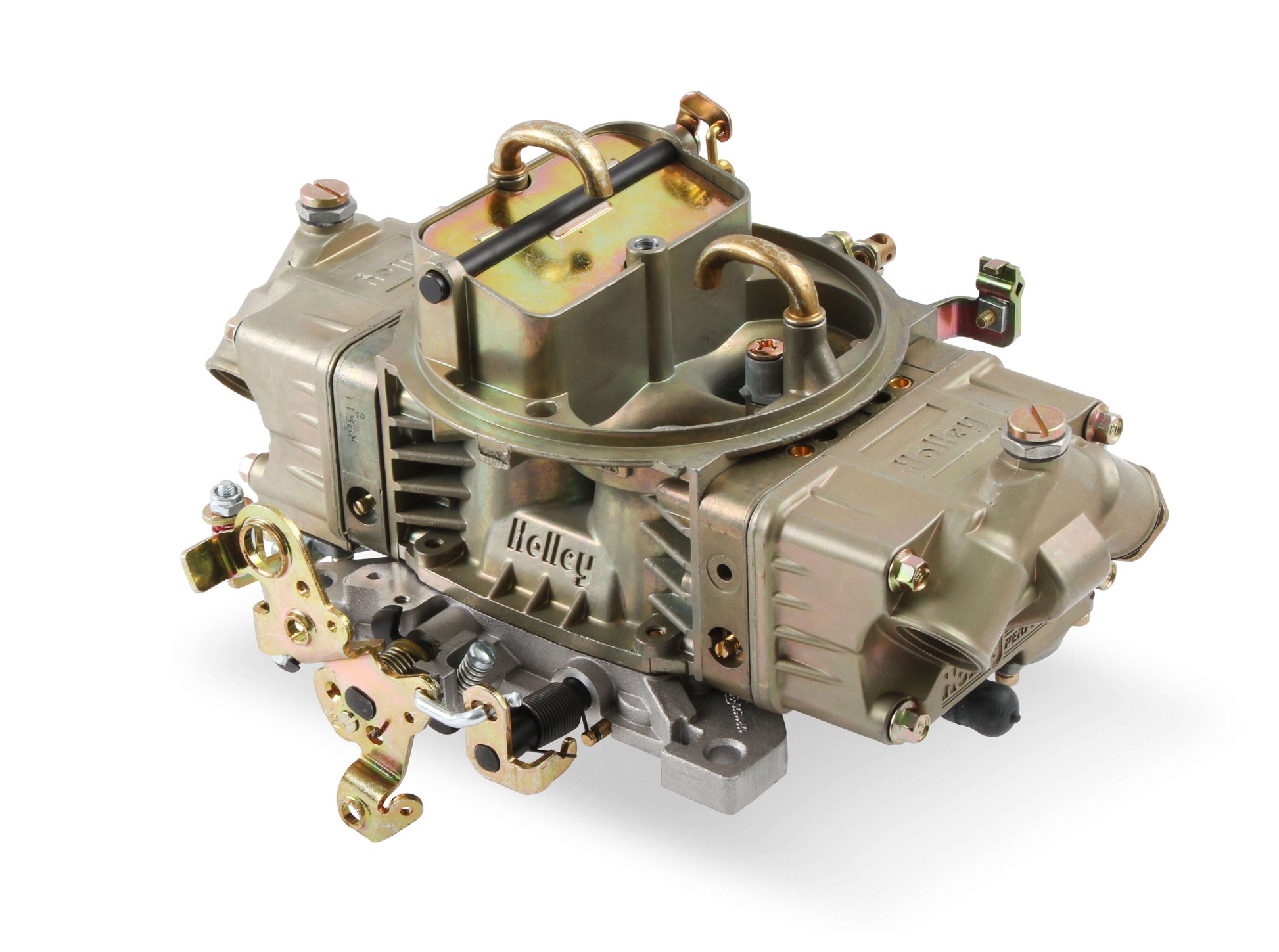

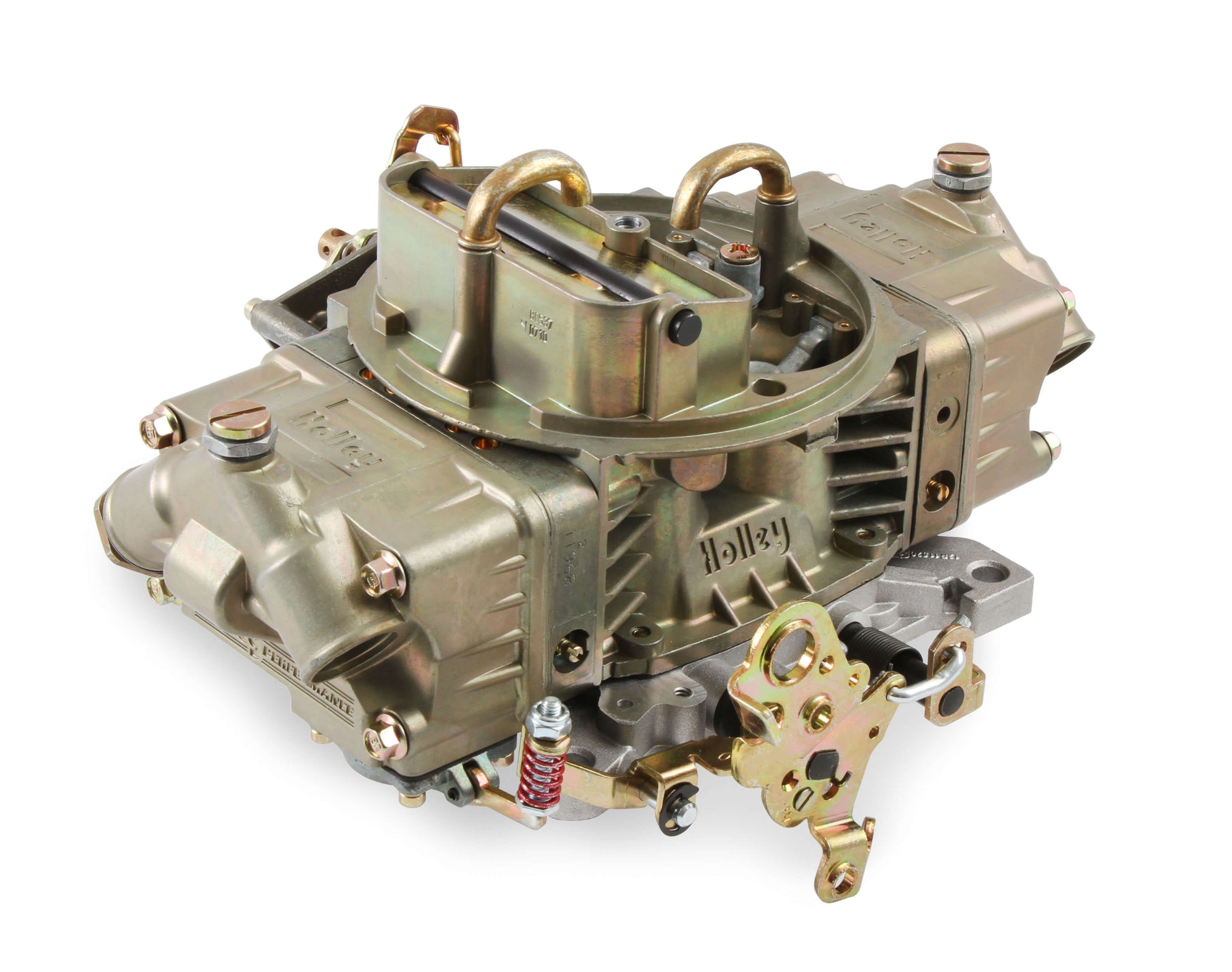

750 CFM MARINE CARBURETOR,4150,UNIVERSAL

BRAND NEW HOLLEY 750 CFM MARINE CARBURETOR, GOLD DICHROMATE, MANUAL CHOKE, COMPATIBLE WITH GASOLINE (PART #0-80537).

ALL HOLLEY MARINE CARBURETORS ARE DESIGNED TO MEET COAST GUARD SPECIFICATIONS. A MARINE CARBURETORS FUEL METERING SYSTEM IS CALIBRATED TO COMPENSATE FOR UNIQUE ENGINE LOADS FOUND ON BOATS. THE J-STYLE VENT TUBES DIRECT FUEL/FUMES BACK INTO THE CARBURETOR FOR SAFE OPERATION WHILE ON ROUGH WATERS.

THE HOLLEY 0-80537 MARINE CARBURETOR IS DESIGNED WITH A UNIVERSAL CALIBRATION GOOD FOR MARINE ENGINES WHERE A 4150 MODEL 4BBL IS REQUIRED

FEATURES:

• GOLD DICHROMATE FINISH FOR CORROSION RESISTANCE AND CLASSIC HOLLEY LOOKS
• PERFORMANCE MARINE CALIBRATION
• MANUAL (CABLE DRIVEN, HAND OPERATED) CHOKE FOR PRECISE COLD START CONTROL
• MECHANICAL SECONDARIES FOR AWESOME PERFORMANCE
• DUAL ACCELERATOR PUMPS FOR ADDITIONAL FUEL UNDER INITIAL ACCELERATION
• DUAL FEED FUEL INLETS FOR CONSTANT HIGH VOLUME FUEL DELIVERY
• 4 CORNER IDLE ALLOWS YOU TO PRECISELY CONTROL YOUR IDLE SYSTEM
• J-STYLE VENT TUBES
• MEETS COAST GUARD SPECIFICATIONS
• POWER VALVE BLOW-OUT PROTECTION
• 100% WET-FLOW TESTED BY HOLLEY TECHNICIANS TO ASSURE IT ARRIVES READY TO RUN!

SPECS:

• BARRELS: 4
• BOOSTER: DOWN LEG
• CARBURETOR USE: MARINE
• CFM: 750
• CHOKE: MANUAL
• FINISH: GOLD DICHROMATE
• FUEL: GASOLINE
• MARINE USE: YES
• MATERIAL: ZINC
• MODEL: 4150
• PRIMARY MAIN JET: 73
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 28
• PRODUCT TYPE: MARINE CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 81
• SECONDARY PUMP NOZZLE SIZE: 31
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.688 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
