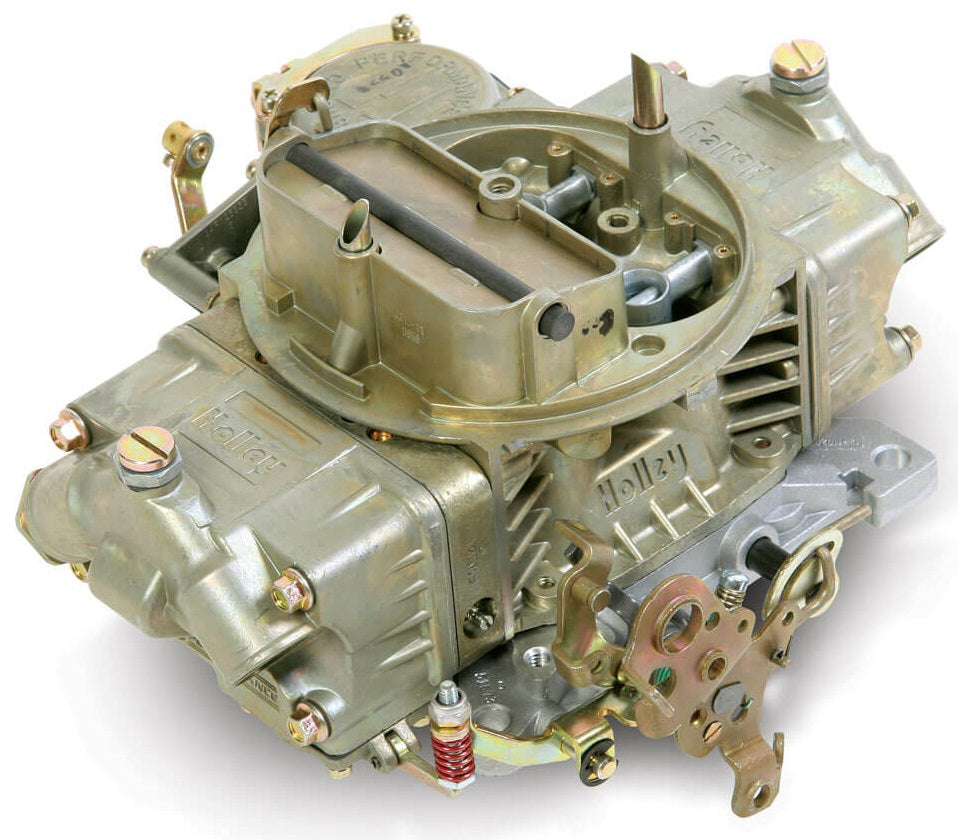

CARBURETOR,4160,750CFM,UNIVERSAL,VACUUM,MANUAL CHOKE

BRAND NEW HOLLEY CLASSIC CARBURETOR WITH GOLD DICHROMATE FINISH, MANUAL CHOKE, VACUUM SECONDARIES, 750 CFM, MODEL # 4160

DUAL FEED FUEL INLETS ASSURE YOU GET ALL THE FUEL YOU NEED WHILE ITS VACUUM SECONDARIES & MANUAL CHOKE MAKE IT AMAZINGLY UNIVERSAL. THE CLASSIC GOLD DICHROMATE FINISH PROVIDES SERIOUS MUSCLE CAR LOOKS & DURABILITY. THE FAMED 0-3310 IS ONE OF THE TEN ORIGINAL INDUCTEES INTO THE HOT ROD MAGAZINE SPEED PARTS HALL OF FAME! ORIGINALLY DEVELOPED FOR THE 1965 424HP 396 CHEVELLE & ITS WELL KNOWN PERFORMANCE CALIBRATION & 750 CFM AIRFLOW KEEP IT ON TOP STILL TODAY.

NOTE: THIS CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB, & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• PERFORMANCE UPGRADE FOR STOCK TO MILDLY MODIFIED VEHICLES. ORIGINALLY DEVELOPED FOR THE 1965 CHEVELLE 425HP 396 CHEVELLE
• UNIVERSAL CALIBRATION FOR EASY BOLT-ON PERFORMANCE
• MANUAL CHOKE (CABLE ACTUATED - HAND CONTROLLED) FOR PRECISE COLD START CONTROL
• VACUUM SECONDARIES FOR USE ON WIDE VARIETY OF VEHICLES. COMPENSATE FOR ALL VEHICLE WEIGHTS, GEARING & TRANSMISSIONS TO ALLOW SMOOTH OPENING OF SECONDARIES
• DUAL FEED FUEL INLETS FOR CONSTANT HIGH VOLUME FUEL DELIVERY
• COMPATIBLE WITH GM, CHRYSLER, AND FORD A/T KICKDOWN LINKAGE. ADDITIONAL PARTS MAY BE REQUIRED
• POWER VALVE BLOW-OUT PROTECTION
• 100% WET-FLOW TESTED BY HOLLEY TECHNICIANS TO ASSURE IT ARRIVES READY TO RUN

SPECS:

• BARRELS: 4
• BILLET COLOR: NONE
• BOOSTER: STRAIGHT
• BRAND: HOLLEY
• CFM: 750
• CHOKE: MANUAL
• CIRCUIT: 2
• EMISSION CODE: 3
• FINISH: GOLD DICHROMATE
• FUEL: GASOLINE
• FUEL INLET: DUAL
• MATERIAL: ZINC
• MODEL: 4160
• PRIMARY MAIN JET: 72
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 31
• PRODUCT TYPE: 4160 MODEL CARBURETOR
• SECONDARIES: VACUUM
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.688"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE, AND THE CARBURETOR NUMERICAL LISTING HERE.
