MANIFOLD; 1965-00 BB CHEVY 395-454, RECT PORT, RPM AIR-GAP

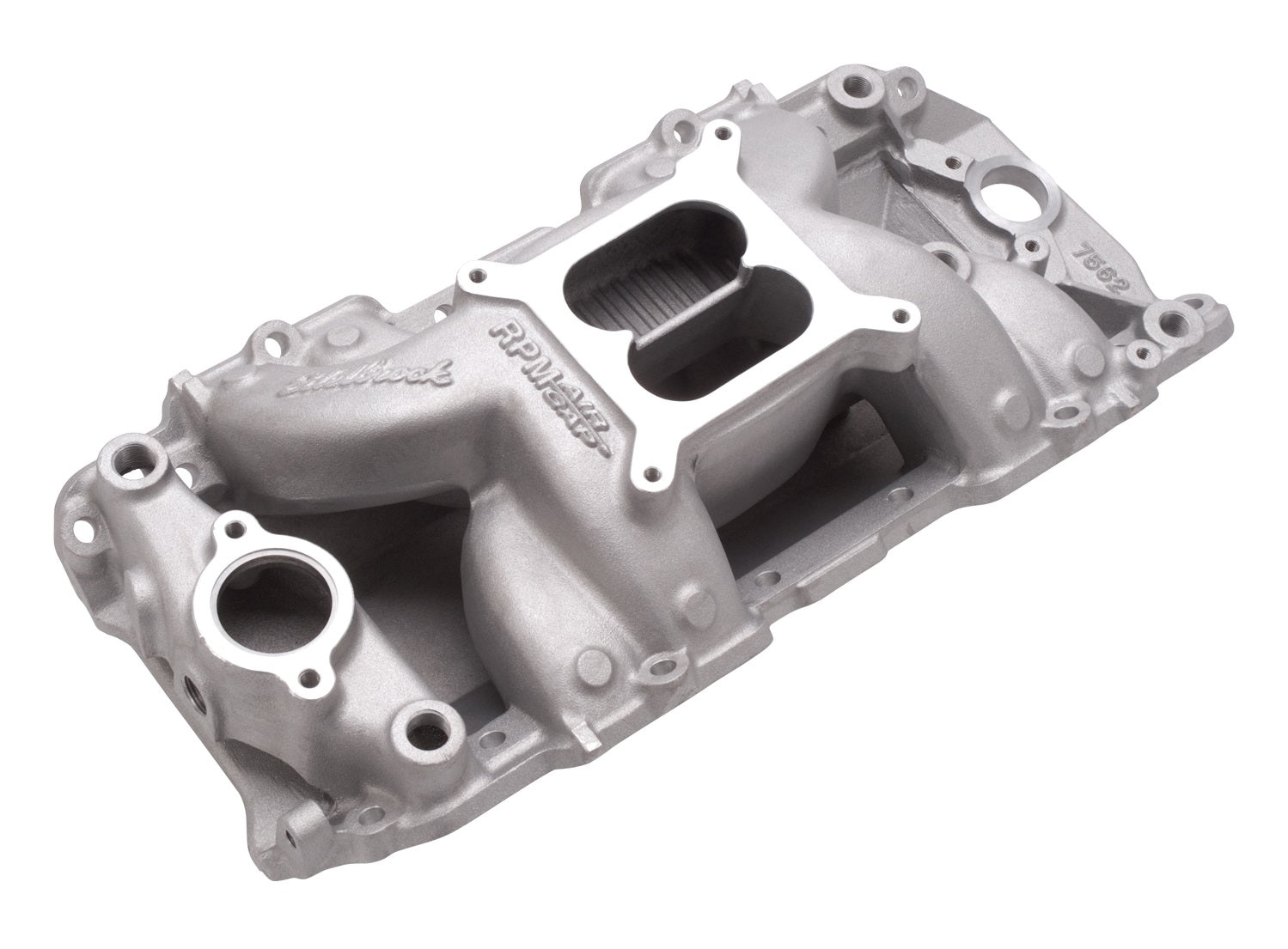

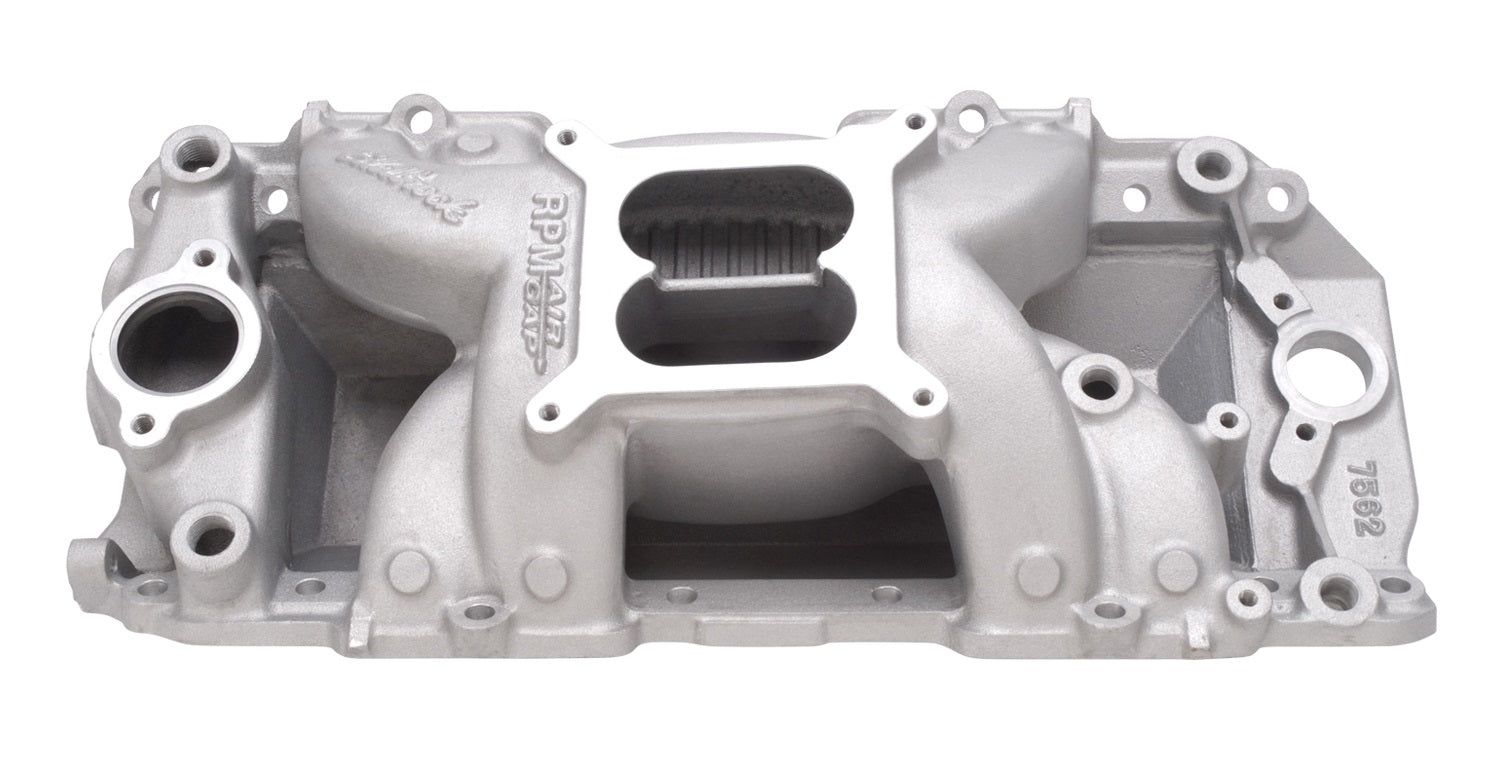

Brand New Edelbrock RPM Air-Gap 2-R Intake Manifold for Chevrolet 396-502 Rectangle Port Big-Block V8 (Part #7562).

The Edelbrock RPM Air-Gap 2-R #7562 intake manifold is designed for street 396-502 C.I.D. Chevrolet V8's with high-performance rectangular-port heads, the RPM Air-Gap incorporates our race-winning technology. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power. The RPM Air-Gap 2-R #7562 intake manifold is a dual-plane, high-rise design with a 180-degree firing order to produce incredible top-end horsepower while retaining good throttle response. The larger plenum and runners match the free-flowing exhaust, high-lift cams and other modifications of a high output engine. They are intended for high-performance street or competition engines that run up to 6500 rpm. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square-bore carbs only. No provision for exhaust heated chokes and no exhaust crossover. The Edelbrock RPM Air-Gap 2-R #7562 also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.

Specs:

• Material: Aluminum

• Finish: Satin
• Gasket Or Seal Included: No

• RPM Range: 1500-6500 RPM

• Rear Maximum Height: 6.0 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
