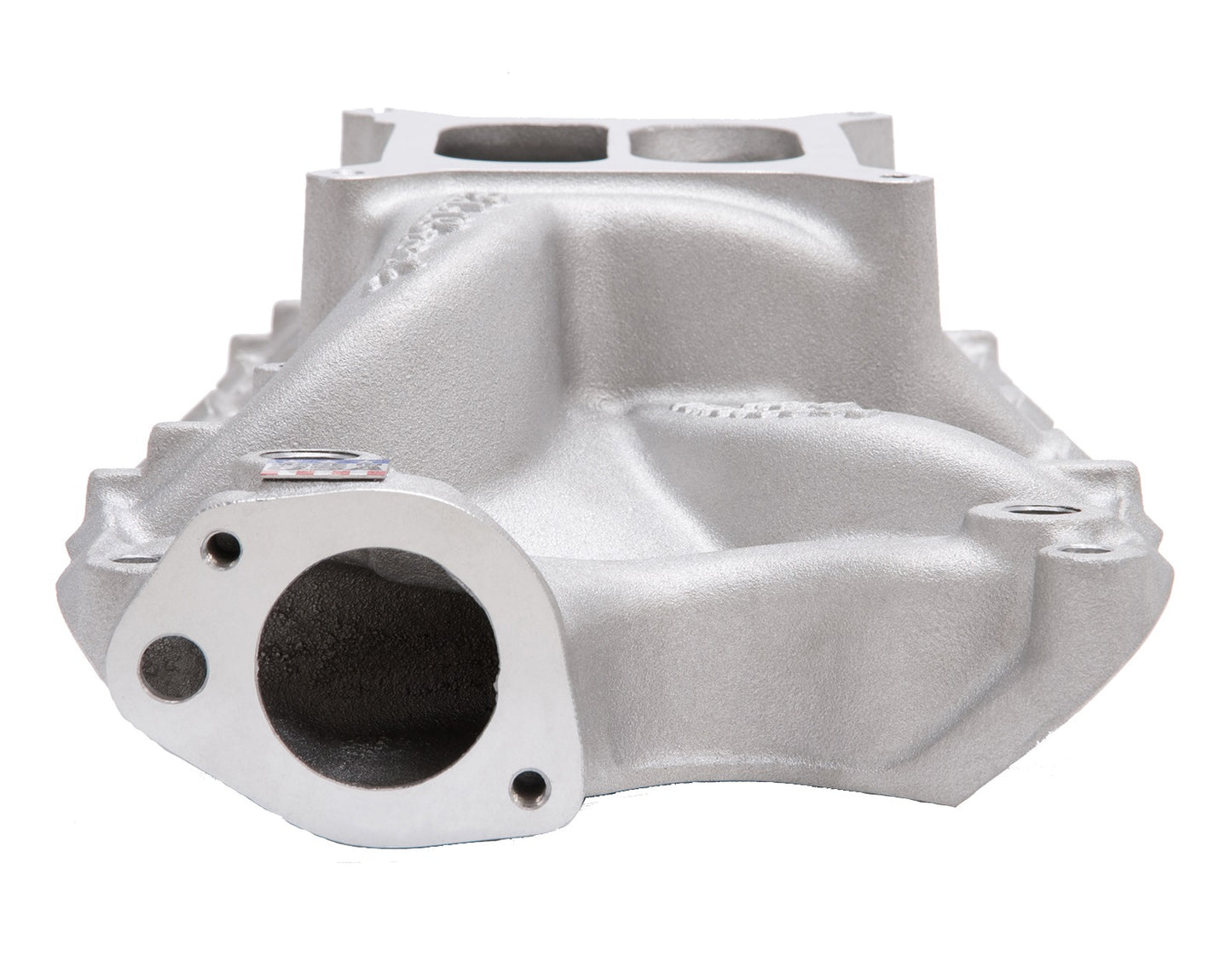

MANIFOLD, 1962-01 FORD 289-302, PERFORMER RPM

MANIFOLD, 1962-01 FORD 289-302, PERFORMER RPM

EDL 7121

$359.95
$359.95
View full details

Brand New Edelbrock Performer RPM 302 Intake Manifold for Ford 289-347 Small-Block V8 (Part #7121).

Edelbrock part #7121 Performer RPM 302 intake manifold is designed for street 289-302 c.i.d. Ford V8's. This dual-plane high rise manifold has excellent high rpm power while retaining throttle response. No provisions for exhaust heated choke. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.

Installation Notes:
  • Will not fit 255 C.I.D. V8.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Performer RPM
  • Material: Aluminum
  • Grade Type: Performance
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7220.
  • Manifold Height: A-4.30", B-5.50"
  • Carb Pad Height: 4.90"
  • Carb Recommendations: Edelbrock AVS2 or Performer Series 600-750 CFM.
  • Port Exit Dimensions: 1.05" x 1.86"
  • Vehicle Model: Ford
  • RPM Range: 1500-6500 RPM
  • Finish: Satin
  • Rear Maximum Height: 5.500 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
