EDELBROCK INTAKE MANIFOLD,BRAWLER CARB,MSD CONTROLLER,CHEVY LS1,CATHEDRAL PORT

Brand New Edelbrock Intake Manifold & Brawler Street Carburetor Kit with Ignition Controller, Carburetor Studs, and Intake Gaskets, Compatible with Cathedral Port GM LS1/LS6 Engines (Part #71187-BR).

Kit Includes:

• Edelbrock Performer RPM LS1 Intake Manifold:
• Edelbrock Performer RPM LS1 intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds
• Also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L)
• Allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm
• A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.
• Dual plane type

• Brawler Street 750 CFM Aluminum Carburetor:
• Electric choke, a beautiful finish, and four-corner idle adjustment

• Black billet metering blocks with the latest technology in air/fuel calibrations
• Black billet throttle bodies for superior durability and throttle shaft stability
• Booster: Down Leg
• Model: 4150
• Choke: Electric
• Circuit: 2
• Fuel Inlet: Dual
• High Speed Air Bleed: 31/31
• Idle Air Bleed Size: 70;70
• Primary Main Jet: 72
• Secondary Main Jet: 80
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Primary Venturii Size: 1.380"
• Secondary Venturii Size: 1.380"
• Secondaries: Mechanical
• Throttle Bore: 1 11/16"

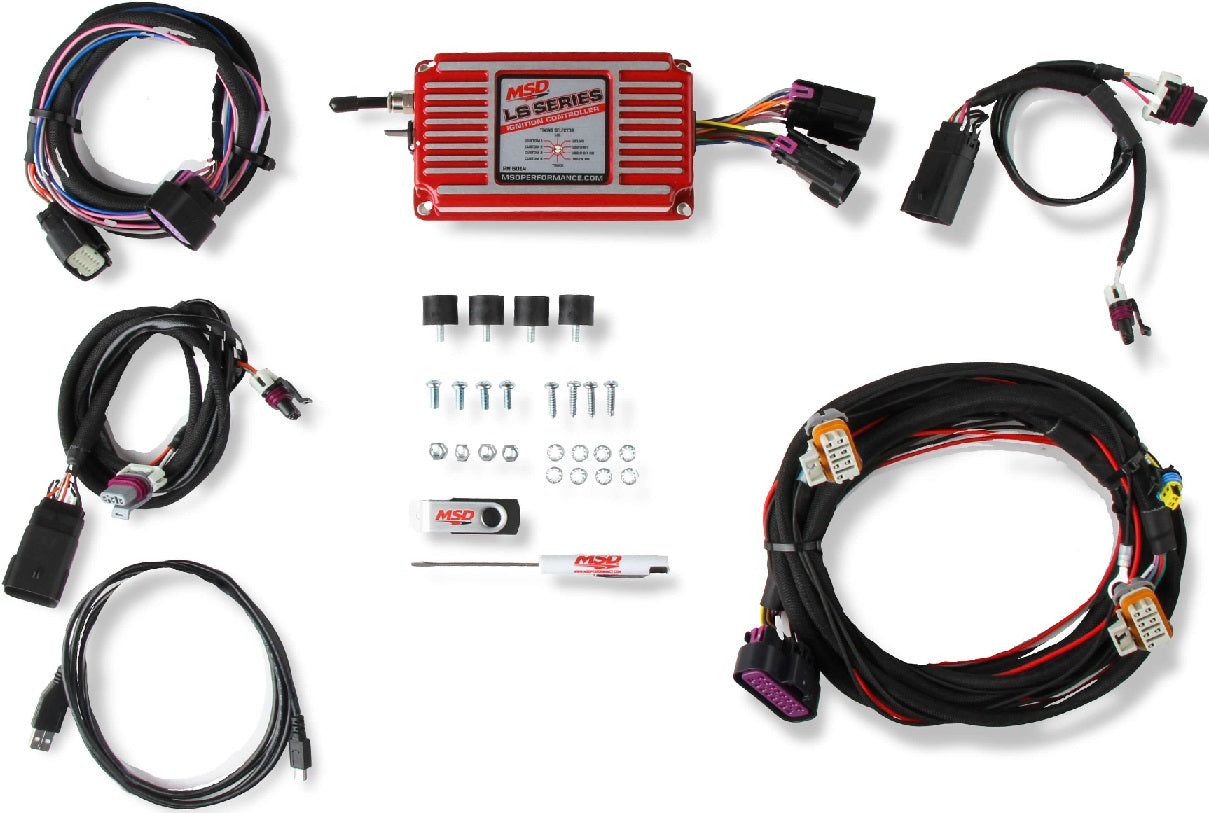

• MSD LS Ignition Control - Red:
• Compatible with 24x/1x and 58x/4x Crank/Cam LS Configurations
• No PC required for basic functionality

• 6 pre-programmed timing tables for easy set-up
• Rotary selector switch allows timing changes on the fly
• Nitrous & boost compatible
• High speed data acquisition
• Fully Sealed direct plugin connectors
• Programmable step retard
• Launch & max rev limiters
• Optional coolant temperature sensor input
• Launch retard
• Idle timing control
• Individual cylinder timing
• Compatible with all MSD, Accel & GM LS coils
• Includes Harnesses
