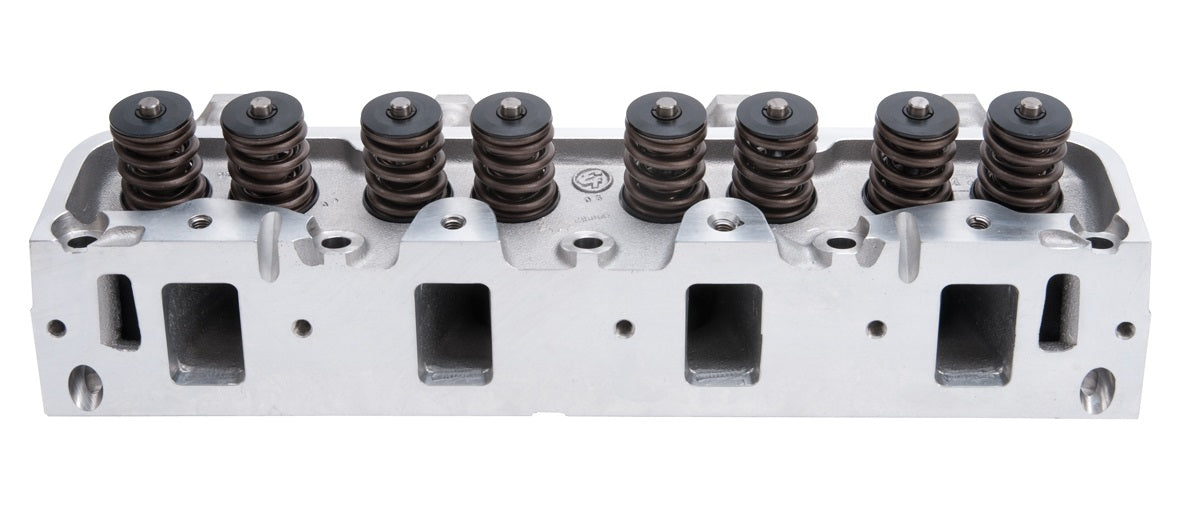

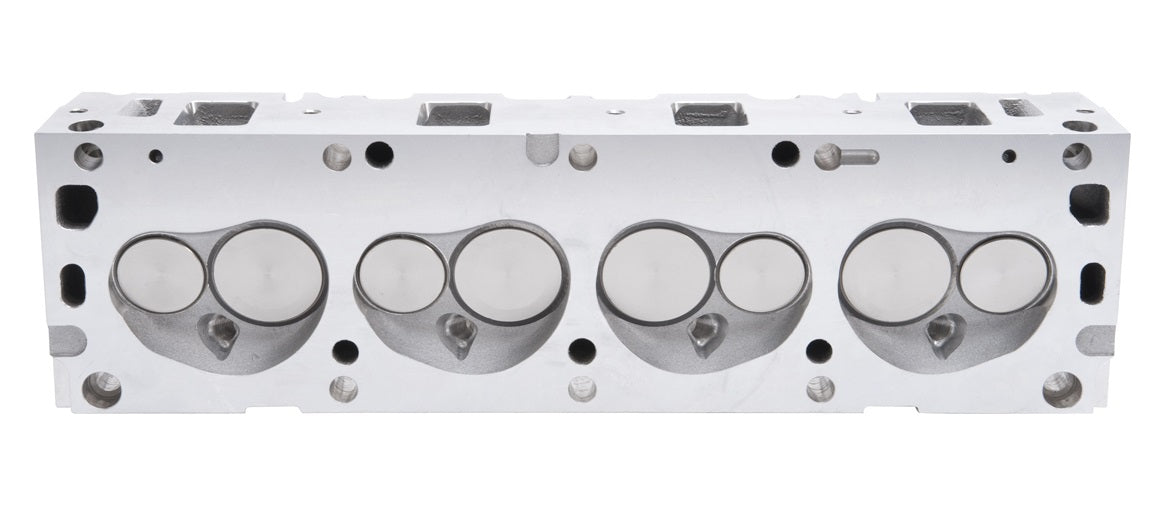

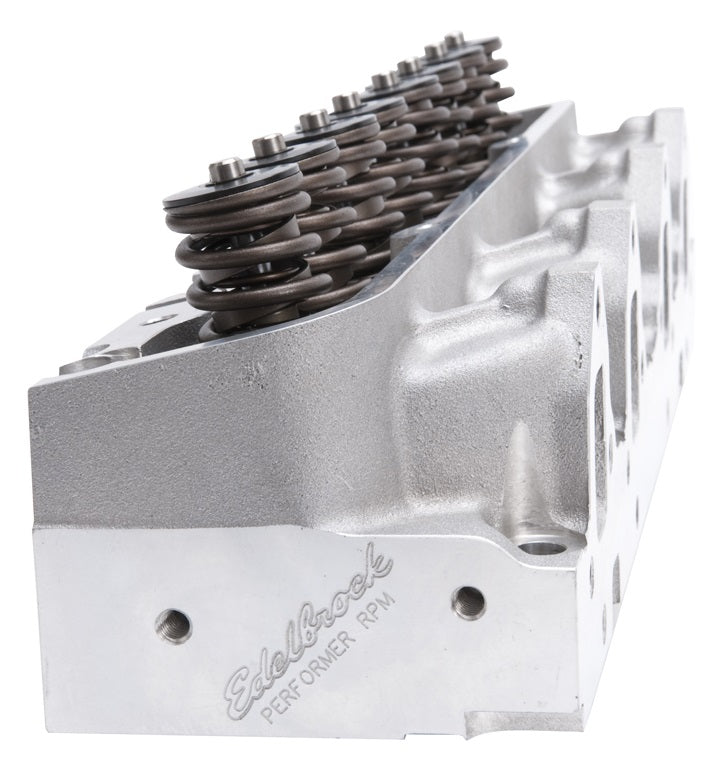

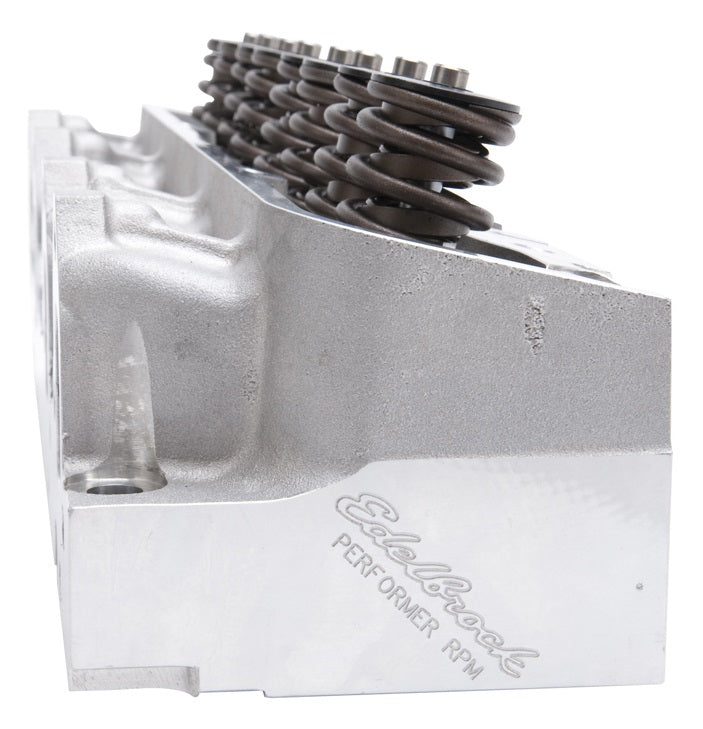

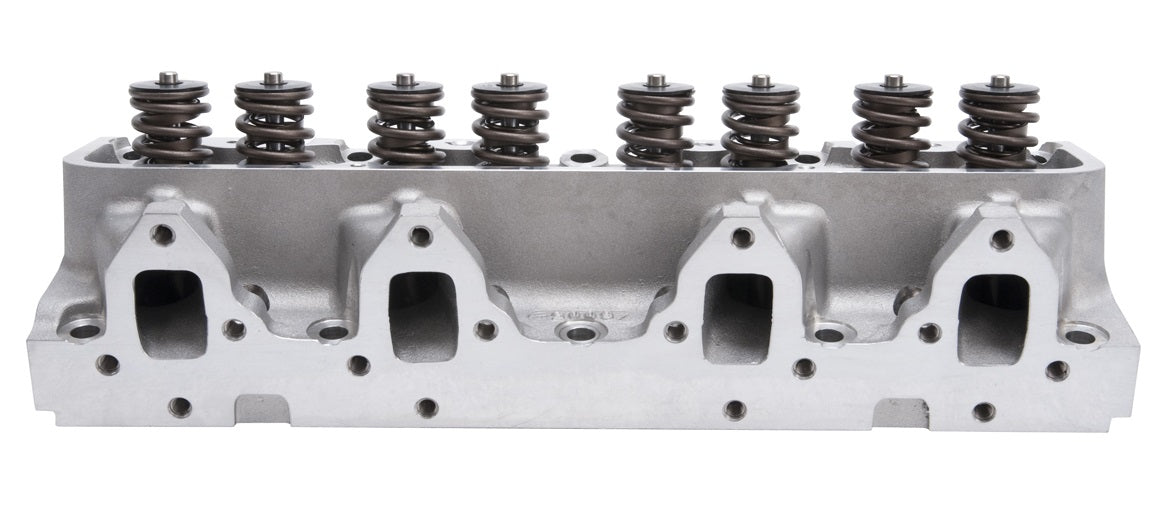

RPM FORD FE 390/428 CYLINDER HEAD

Brand New Edelbrock Performer RPM Cylinder Head Fits 1961-1976 390, 427, & 428 Ford Engines (Part #60065).

The Edelbrock Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Installation Notes:

• 428 Cobra Jet-sized valves promote excellent flow for street-able power;
• Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head
• Match with Edelbrock head gasket sets
• 390 GT exhaust will not fit
• Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using
• Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
• Deck thickness: 5/8"

Specs:

• Series: Performer RPM

• Material: Aluminum

• Horsepower: 400-550 HP

• Seat Angle: Exhaust 45 deg/Intake 60 deg
• Intake Valve Diameter: 2.09 in

• Intake Runner Volume: 170 cc

• Push Rod Diameter: 0.375 in

• Valve Angle: 13 Degree

• Valve Spring Diameter: 1.55 in

• Valve Spring Maximum Lift: 0.600 in

• Valve Stem Diameter: 0.375 in


You can view and download the complete assembly instruction booklet here.
