TORKER-PLUS CAMSHAFT KIT FOR 1962-95 SMALL-BLOCK FORD 289-302 V8

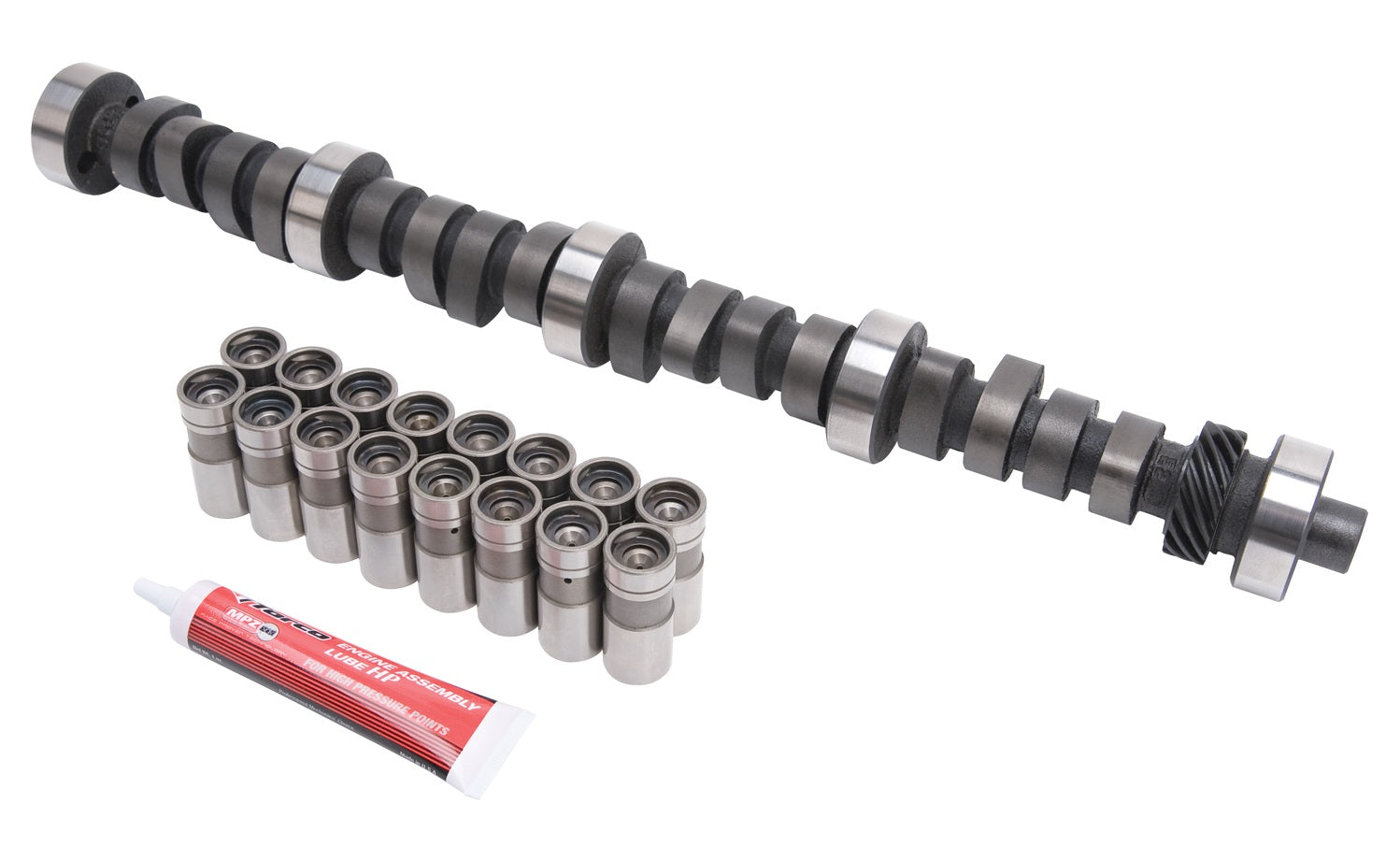

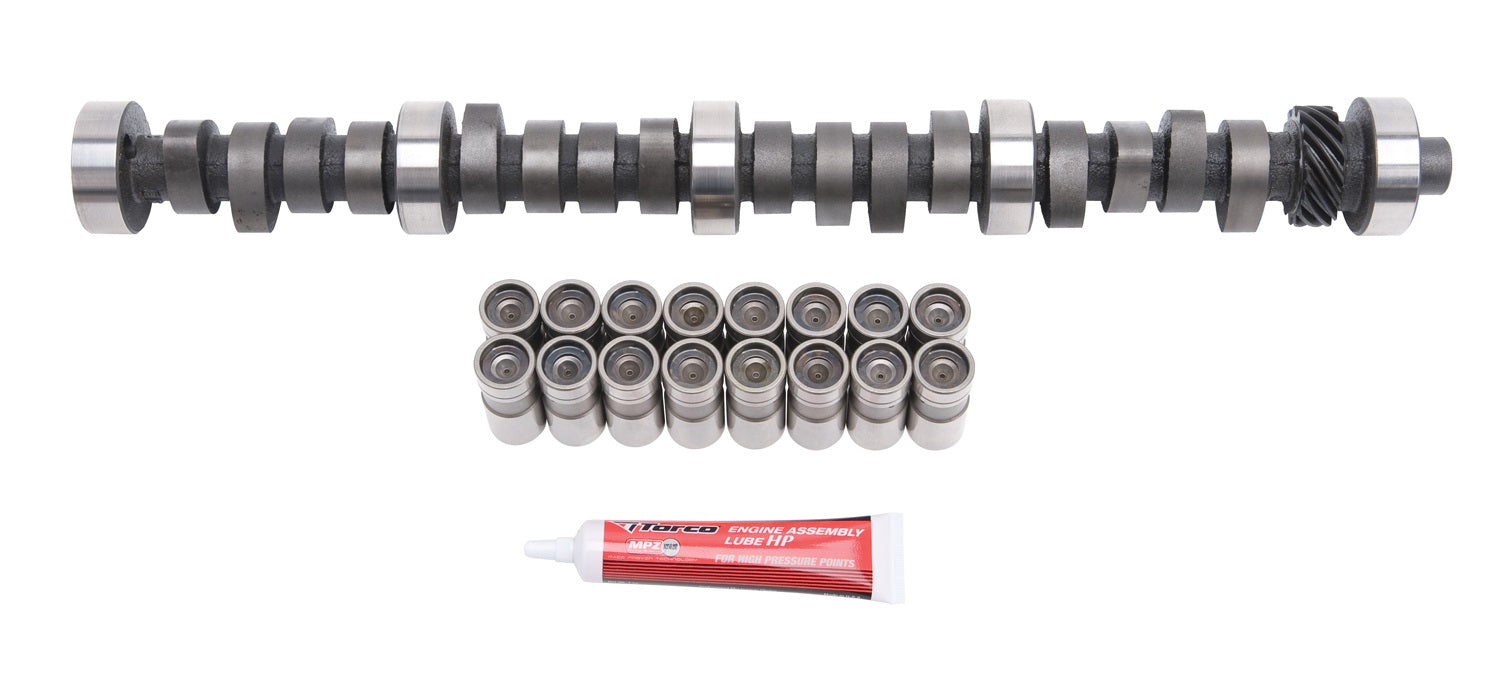

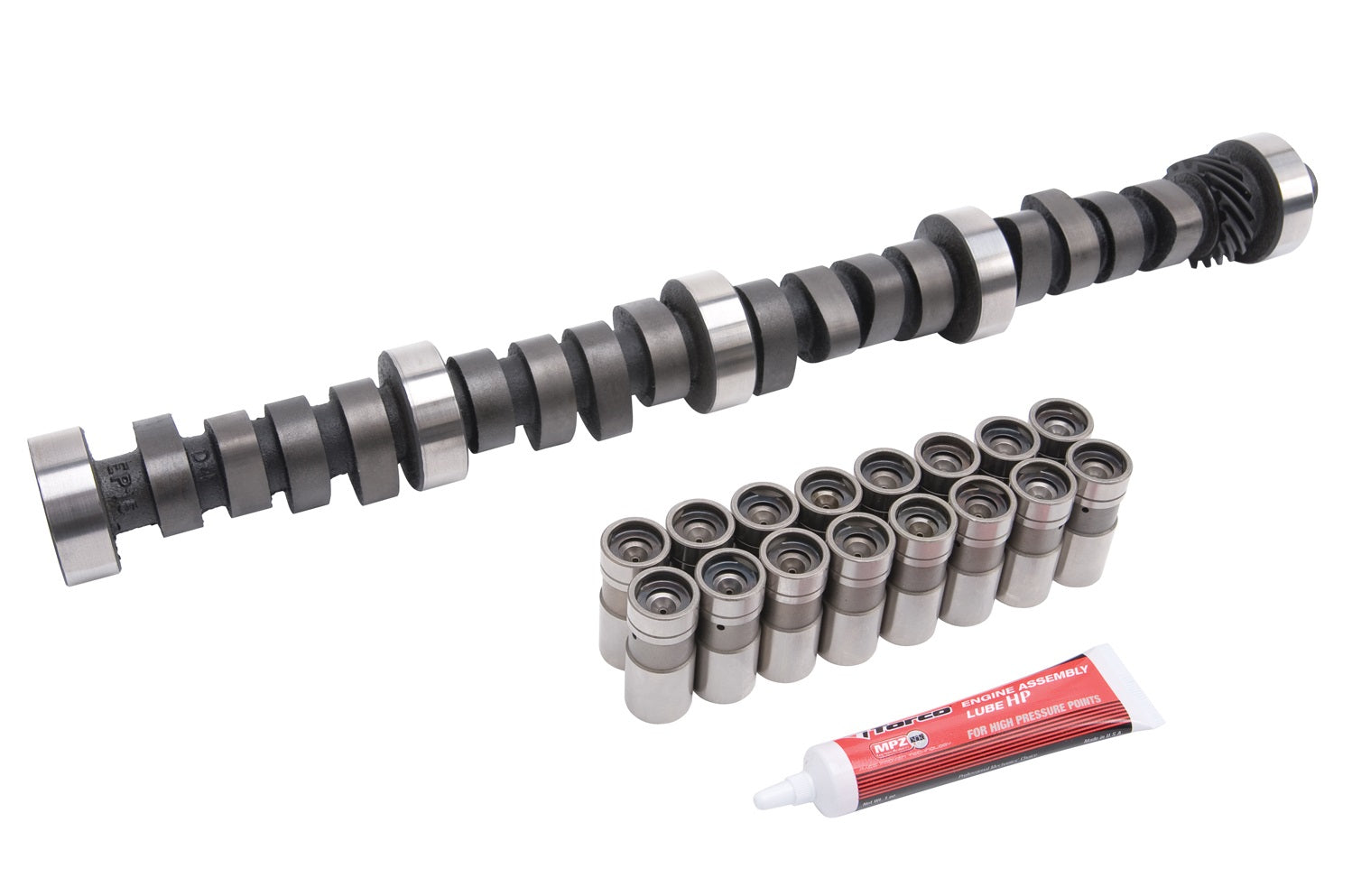

Brand New Edelbrock Torker-Plus Camshaft Kit for 1957-1995 Small-Block Ford 289-302 V8 (Part #5022).

Edelbrock Torker-Plus Camshaft is designed for small-block Ford 289-302 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft.

Installation Notes:

• Recommended Valve Springs for OEM heads: Edelbrock part #5762.
• Adjustable pushrods or rocker arms and screw-in studs required.
• Not for 1985-later engines with roller lifters.
• Use only stock ratio rocker arms.
• Adjustable valvetrain required.
• In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent.
• Do not use rotator type valve springs or retainers for this application.
• Oil/additive must contain Zinc designed for use with flat tappet camshafts.
• Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
•  Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Specs:

• Series: Torker-Plus

• Grade Type: Performance

• Lifter Materials: Hardened Steel

• Computer Controlled Compatible: No
• Duration @ .050 Intake: 214 degrees
• Duration @ .050 Exhaust: 224 degrees
• Lift @ Valve Intake: .472"
• Lift @ Valve Exhaust: .496"
• Lobe Separation: 112 Degrees
• Intake Centerline: 107 Degrees
• Lifter Type: Hydraulic Flat Tappet

You can view and download the complete assembly instruction booklet here.
