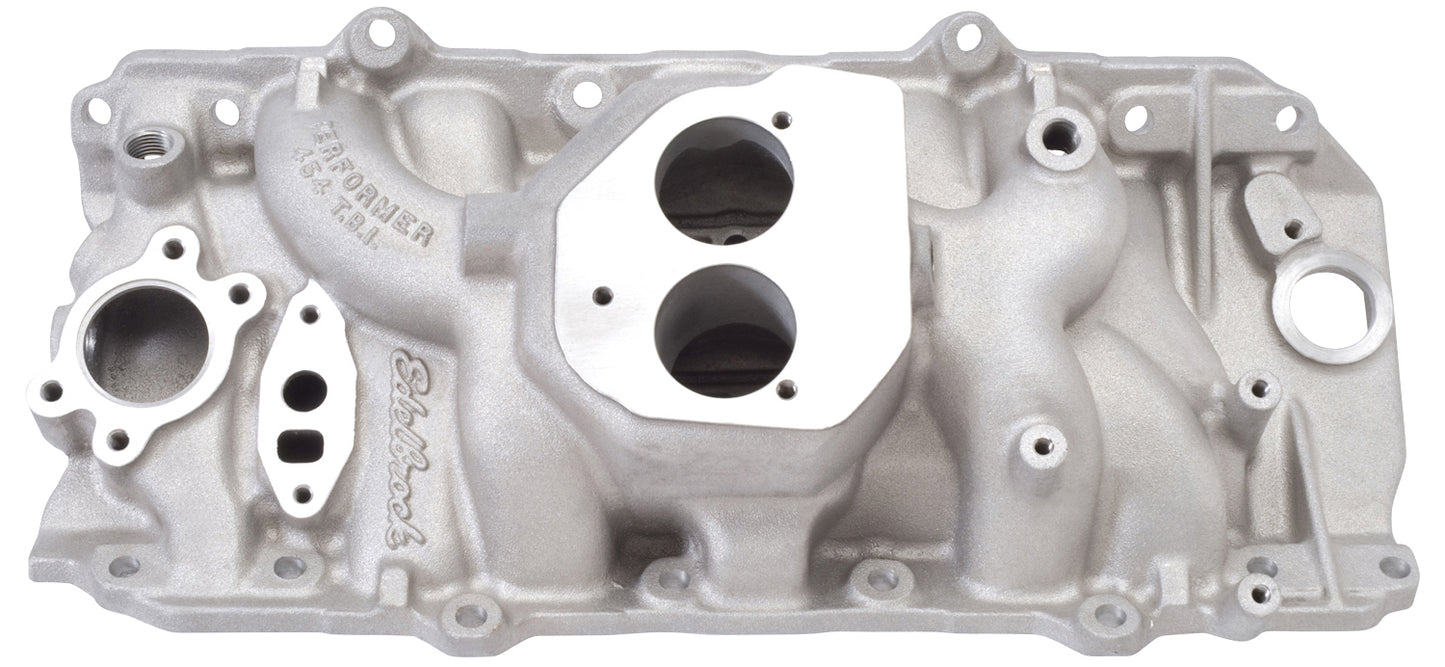

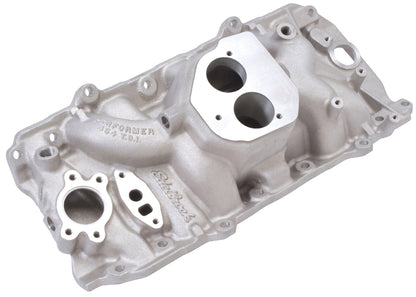

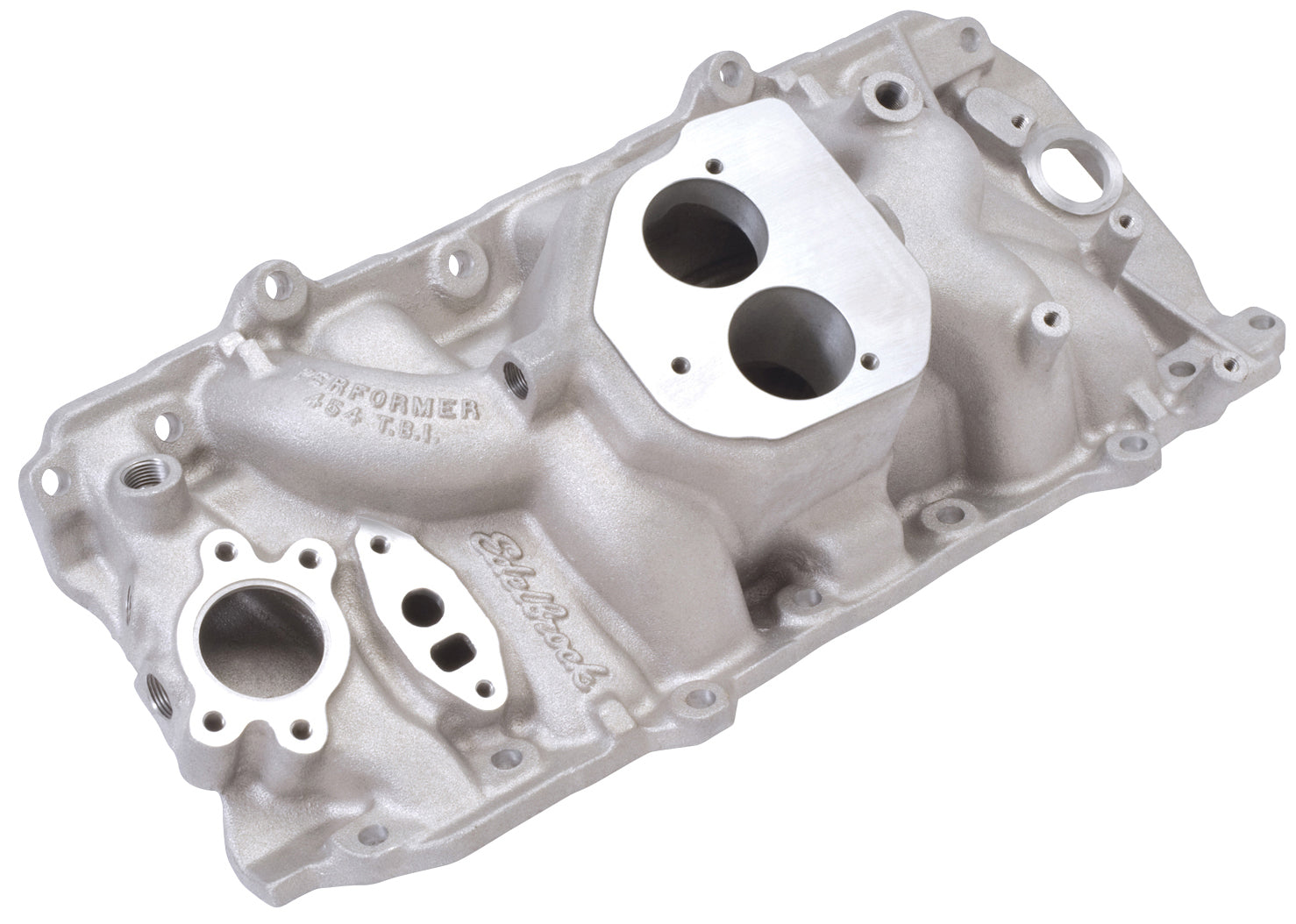

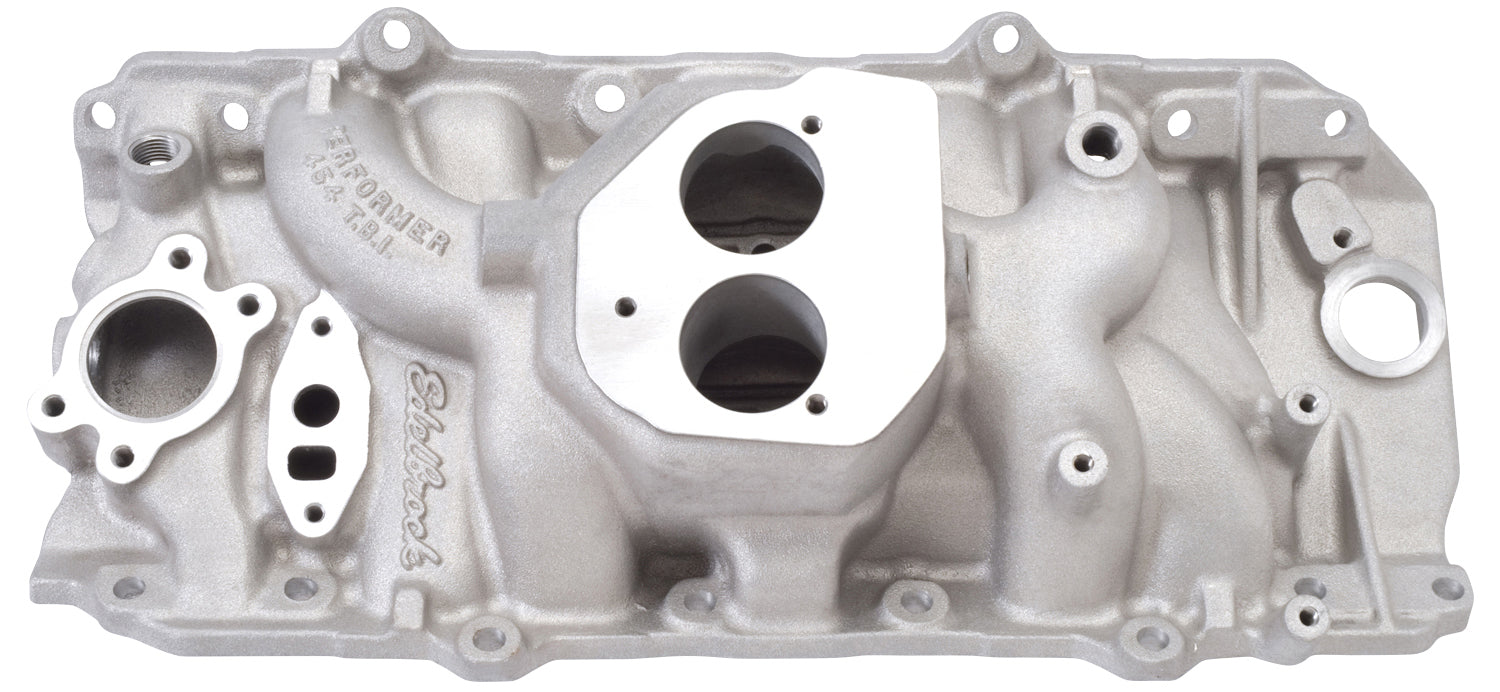

EDELBROCK INTAKE MANIFOLD,PERFORMER 454 TBI,BB CHEVY 454,EGR

BRAND NEW EDELBROCK PERFORMER 454 TBI INTAKE MANIFOLD FOR CHEVY 454 BIG BLOCK V8 ENGINE

EDELBROCK PART #3764 PERFORMER 454 T.B.I. INTAKE MANIFOLD IS DESIGNED FOR STREET 454 C.I.D. CHEVY V8 ENGINES.

NOTE: USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS

NOTE: HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM.

FEATURES:

• FEATURES EGR IN STOCK LOCATION
• MANIFOLDS WILL NOT FIT 1991-95 VEHICLES
• USE STOCK THROTTLE BODY INJECTION UNIT
• RECOMMENDED INTAKE GASKET: GM #10181398
• MANIFOLD HEIGHT: A-4.30", B-6.45" SAME AS STOCK
• CARB PAD HEIGHT: 5.37"
• PORT EXIT DIMENSIONS: 1.41" WIDE X 1.59" TALL
• 1987-1990 CHEVY 454 TRUCKS REQUIRE EDELBROCK GM T.B.I. THROTTLE BRACKET #8019

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
