PERFORMER-PLUS CAMSHAFT KIT FOR SMALL-BLOCK OLDSMOBILE 350-403 V8

PERFORMER-PLUS CAMSHAFT KIT FOR SMALL-BLOCK OLDSMOBILE 350-403 V8

EDL 3712

$371.95
$371.95
View full details

Brand New Edelbrock Performer-Plus Camshaft Kit for Small-Block Oldsmobile 350-403 V8 (Part #3712).

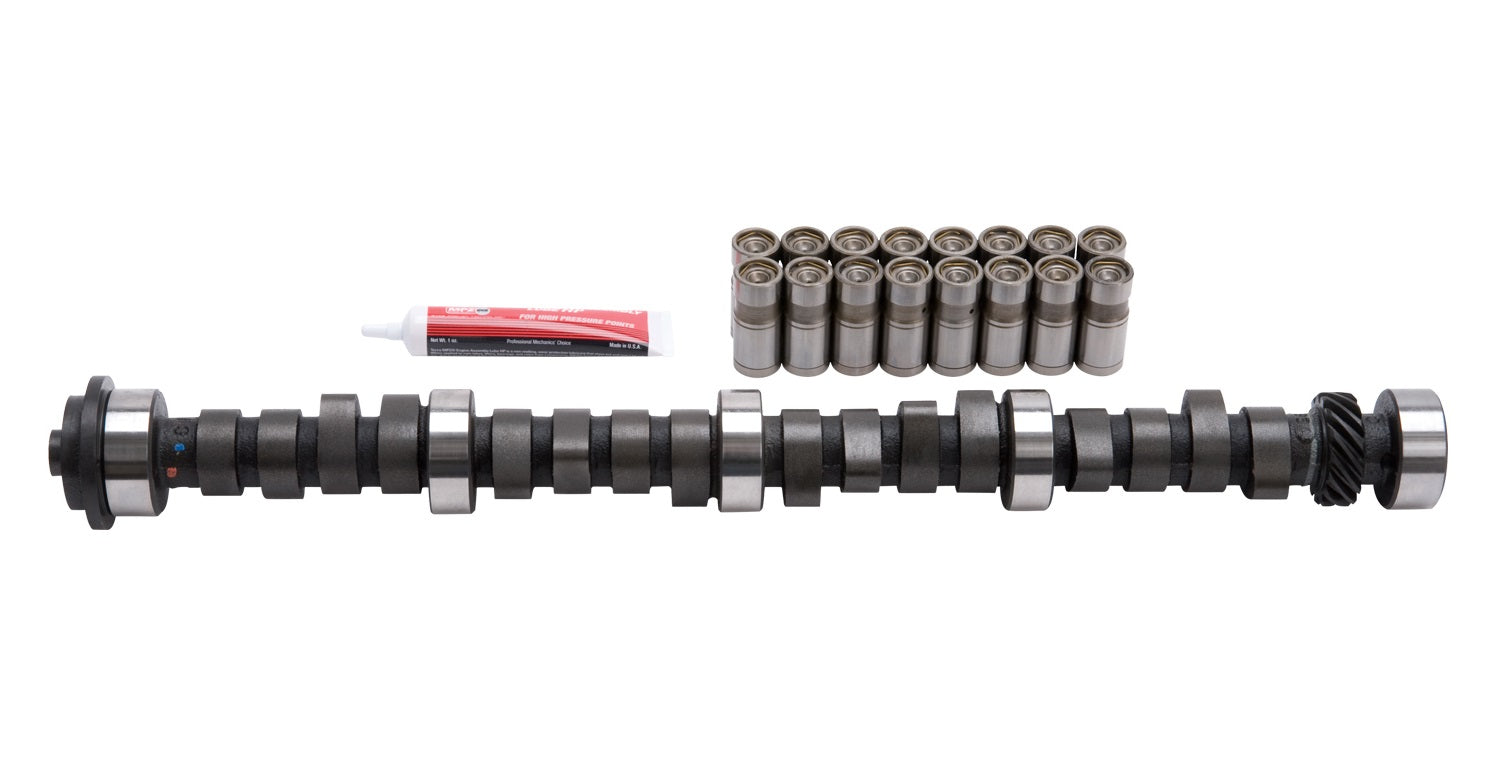

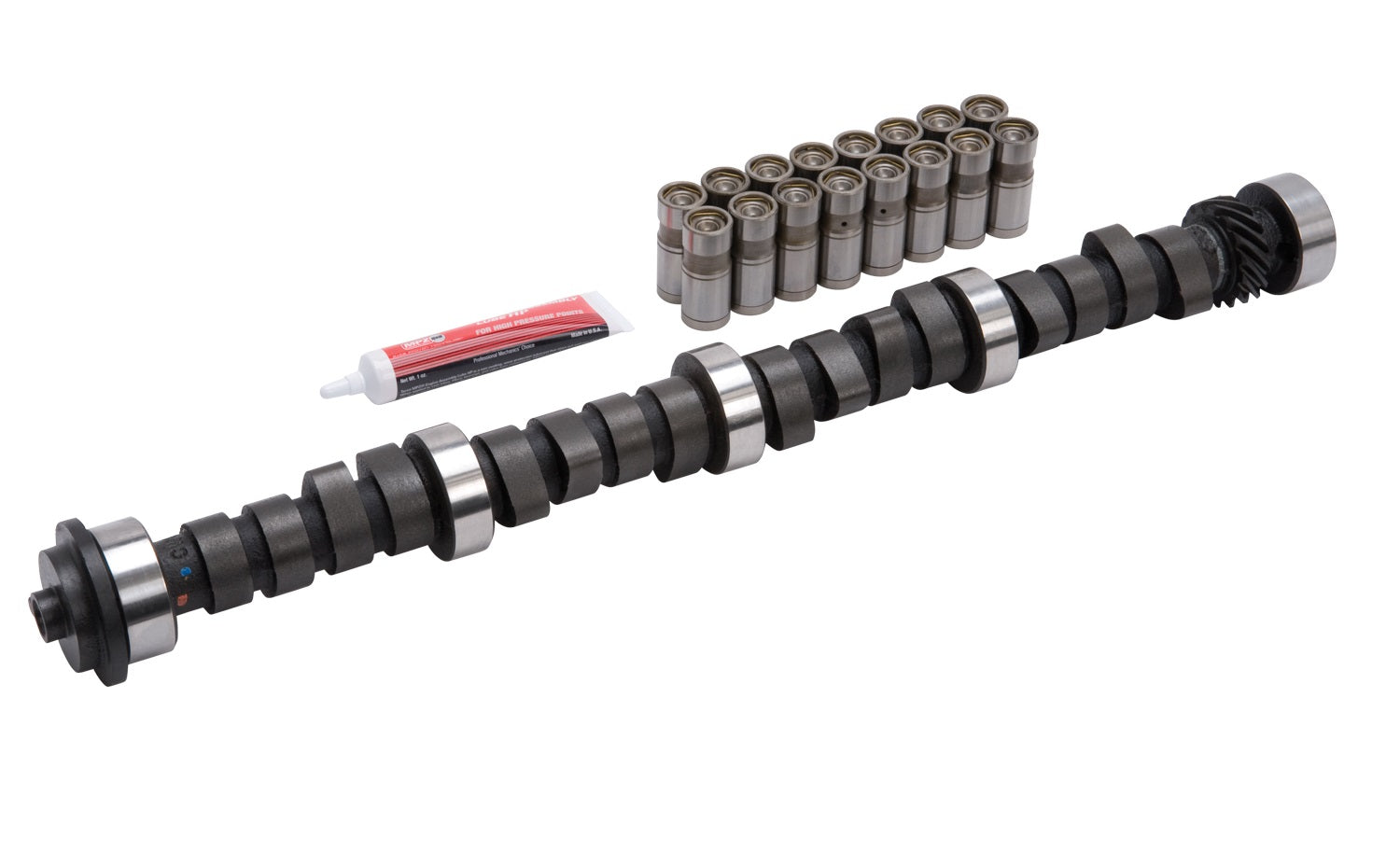

Edelbrock part #3712 Performer-Plus camshaft is designed for small-block Oldsmobile 350-403 V-8 applications. This Edelbrock cam kit produced 330 ft-lbs. of torque when used with #3711 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.

Installation Notes:

  • Recommended Valve Springs for OEM heads: Edelbrock part #5812
  • May require longer than stock pushrods.
  • Will not fit 1966 & earlier.
  • In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs.
  • Oil/additive must contain Zinc designed for use with flat tappet camshafts.
  • Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
  • Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Specs:

  • Series: Performer-Plus
  • Grade Type: Performance
  • Lifter Materials: Hardened Steel
  • Computer Controlled Compatible: No
  • Lifter Type: Hydraulic
  • Duration @ .050 Intake: 204 degrees
  • Duration @ .050 Exhaust: 214 degrees
  • Lift @ Valve Intake: .449"
  • Lift @ Valve Exhaust: .473"
  • Lobe Separation: 114 Degrees
  • Intake Centerline: 106 Degrees
  • Idle Vacuum @ 1000 RPM's: 16"

You can view and download the complete assembly instruction booklet here.
