MANIFOLD, 1987-95 SB CHEVY TBI, PERFORMER

MANIFOLD, 1987-95 SB CHEVY TBI, PERFORMER

EDL 3704

$519.95
$519.95
View full details

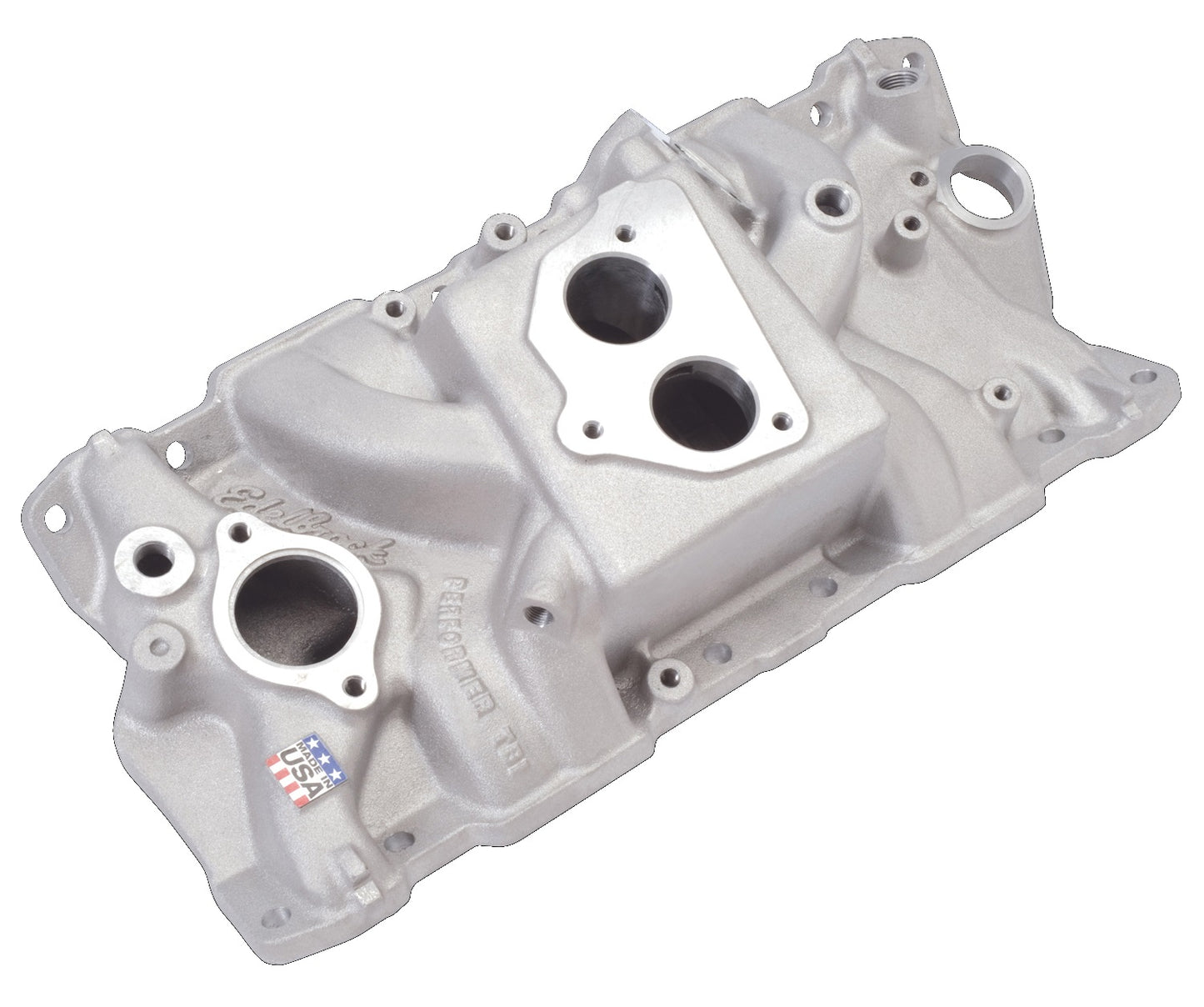

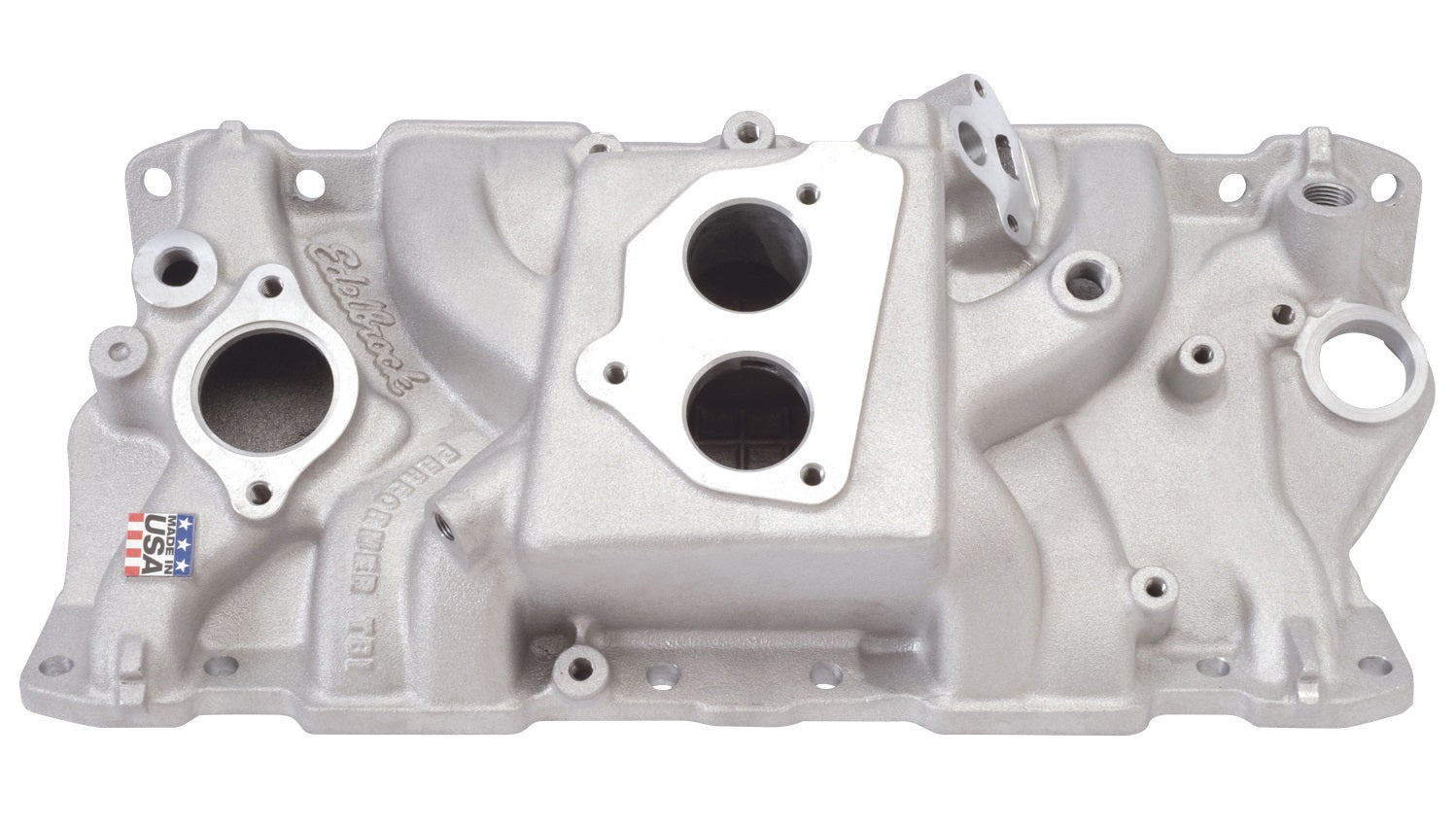

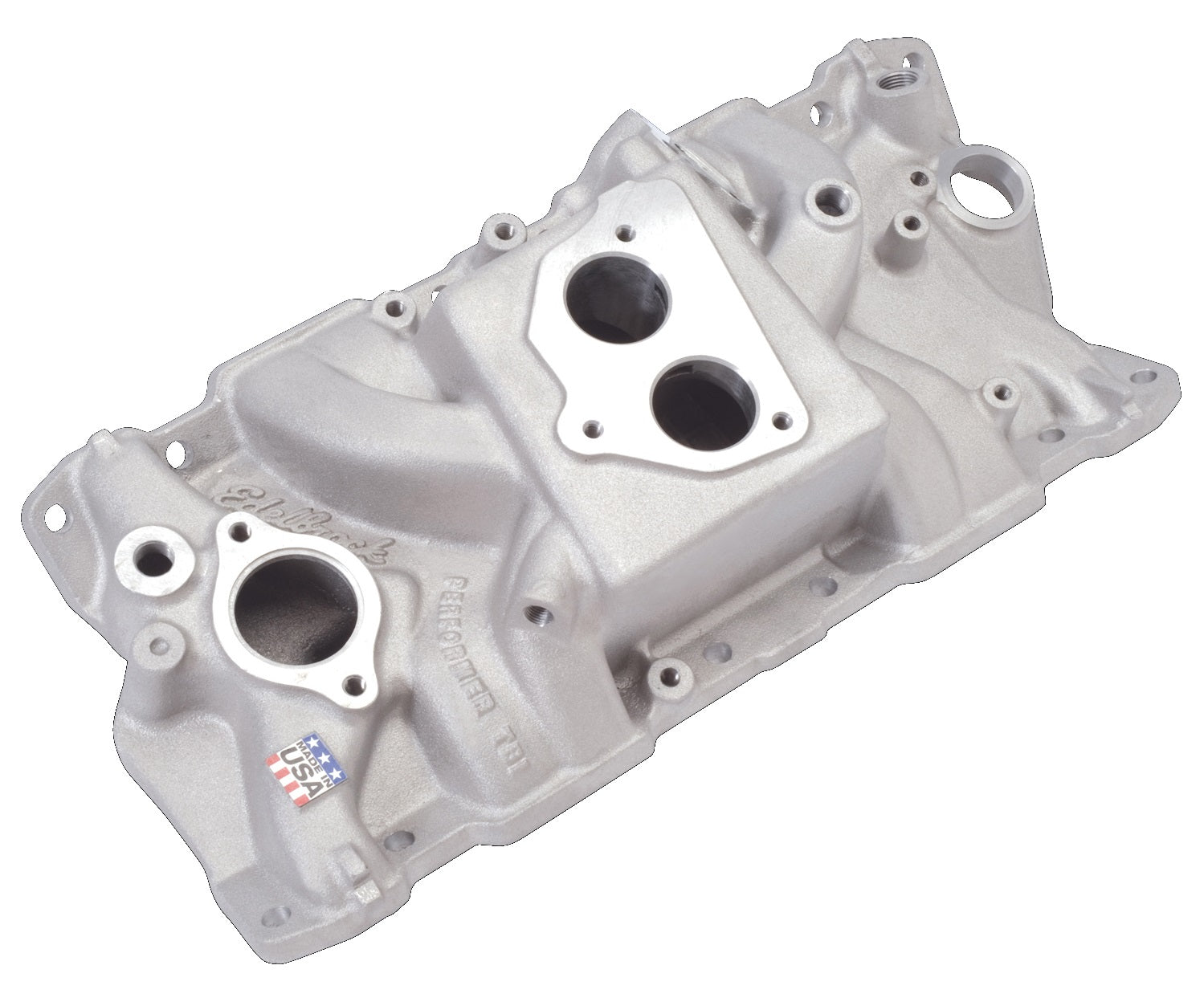

Brand New Edelbrock Performer T.B.I. Intake Manifold Small-Block Chevy (Part #3704).

Edelbrock Performer T.B.I. intake manifold is designed for 1987-95 305/350 C.I.D. 5.0/5.7L Chevy throttle body injected engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Will not fit Caprice or Buick and Cadillac "B" bodies.

Installation Notes:
  • Use stock Throttle Body Injection unit.
  • Made in the USA
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

Specs:

  • Series: Performer
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: GM #10159409
  • Manifold Height: A-3.70", B-5.10"
  • TBI Pad Height: 4.40", .250" taller than stock.
  • Port Exit Dimensions: 1.13" x 1.87".
  • Vehicle Model: Chevrolet
  • RPM Range: Idle-5500 RPM
  • Rear Maximum Height: 5.100 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
