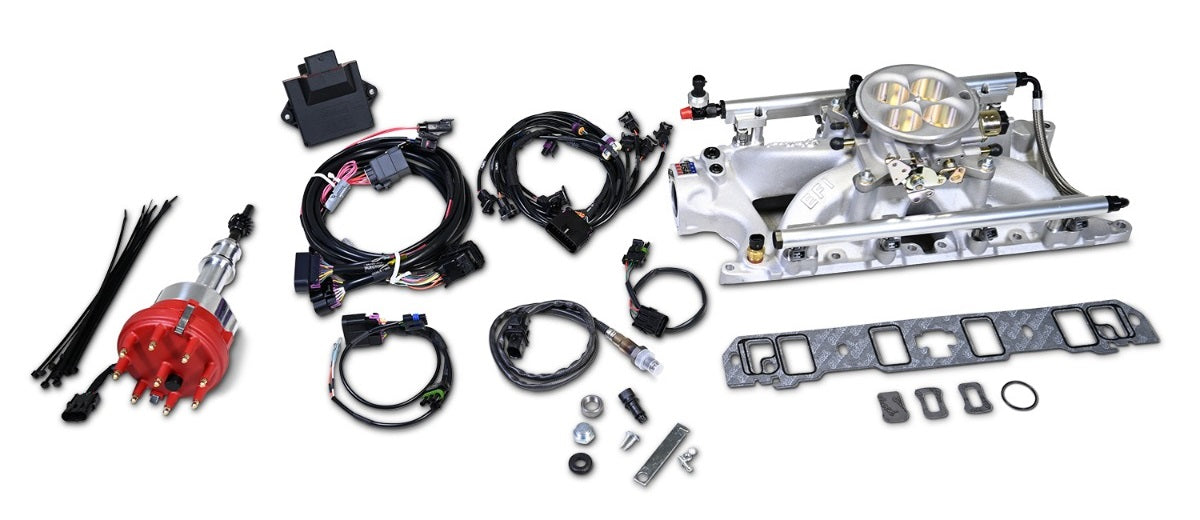

EDELBROCK PRO-FLO 4 EFI SYSTEM,4150,SBF 289W-302W,450 HP,29 LB/HR,58 PSI

Brand New Edelbrock Pro-Flo 4 EFI Traditional 4150-Style Kit #35930 For Ford SB Windsor 289, 302 (Part #35930).

The Edelbrock Pro-Flo 4 XT EFI Kit #35930 for Small-Block Ford 289W-302W C.I. engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation.

The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for.

The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 app features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

Note: This kit will require a high pressure EFI fuel delivery system.

Specs:

• System Type: Traditional 4150-Style Kit

• Gasket Or Seal Included: Yes

• Wiring Harness Included: Yes

• Idle Air Control Motor Included: Yes

• Fuel Pressure Port: 1/8-27 NPT

• Idle Air Control Motor Included: Yes

• Manifold Height: 5.5"
• Throttle Body Height: 2.530"
• Bore Diameter: 1.75

• Fuel Injector Type: 29 lb/hr

• Maximum Horsepower: 450

• Distributor Cap Included: Yes
• Finish: Satin

• Throttle Body Type: 4 Barrel

You can view and download the complete assembly instruction booklet here.
