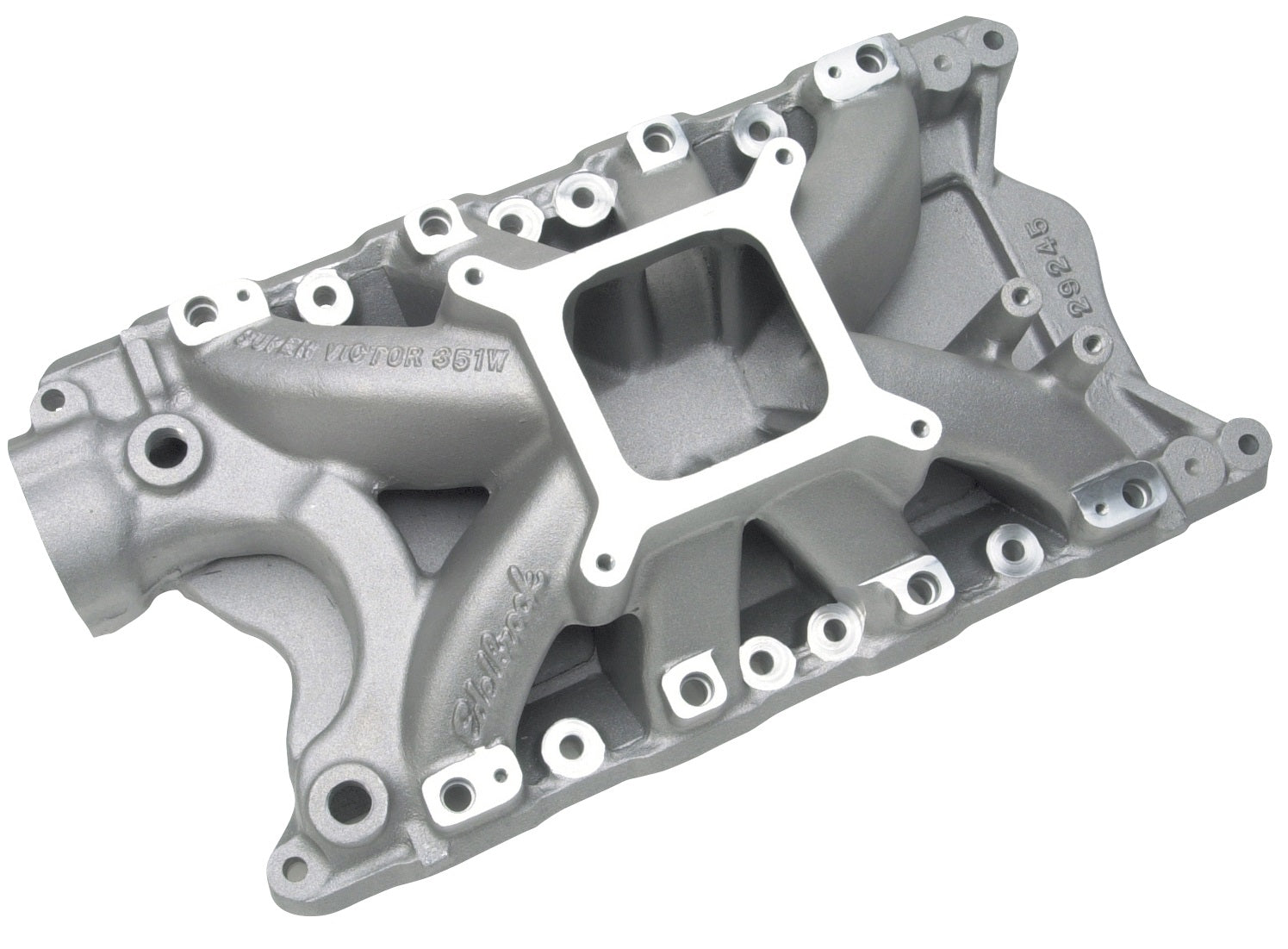

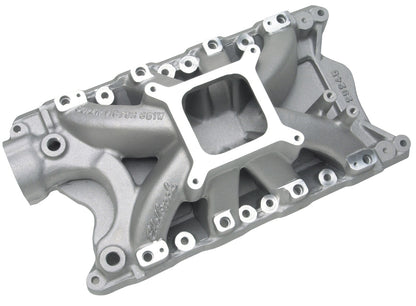

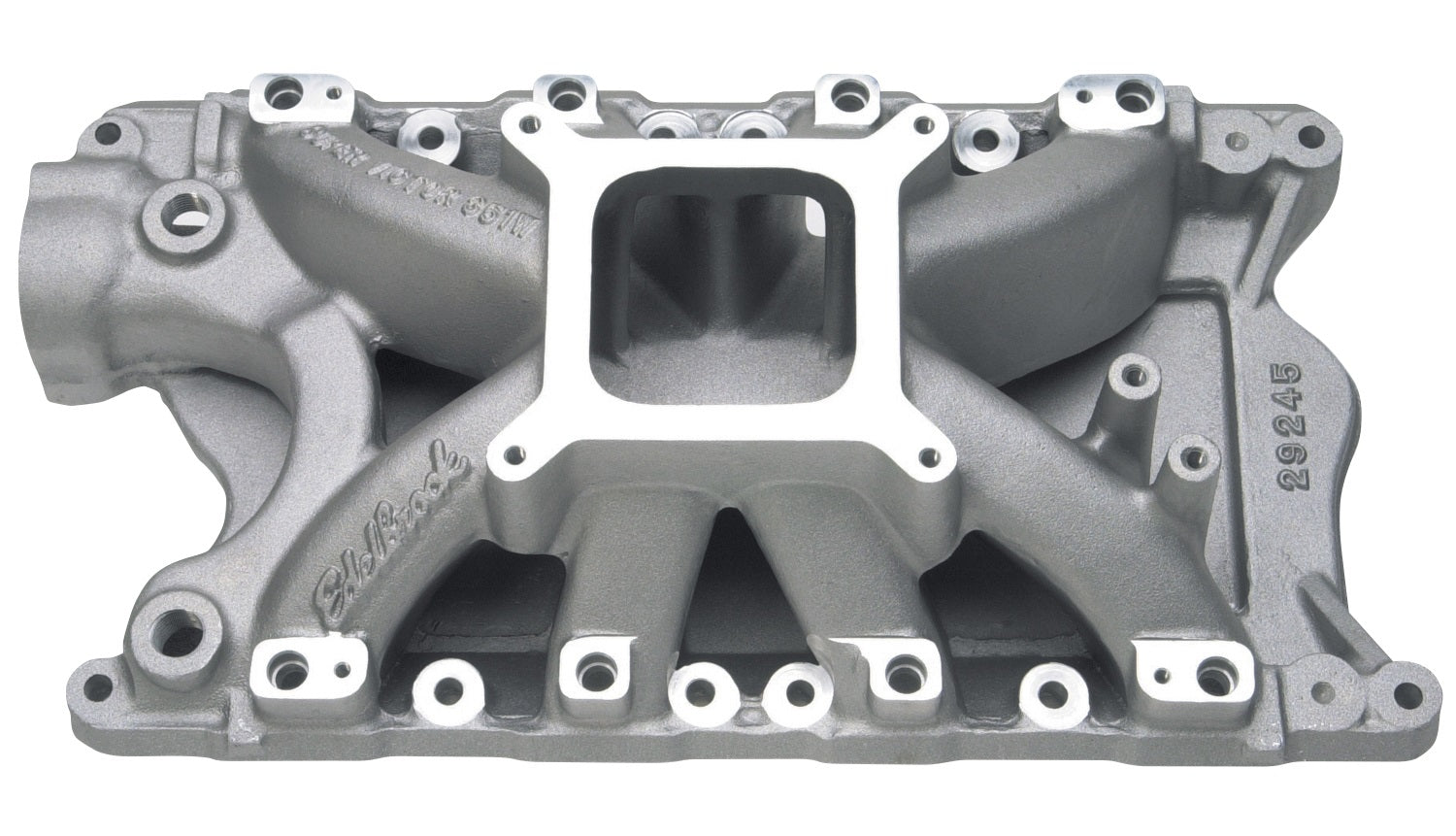

MANIFOLD, 1969-97 FORD 351W, VICTOR JR, EFI

Brand New Edelbrock Super Victor 351W 9.5" Deck EFI Intake Manifold for Ford 351-427 Small-Block Windsor V8 (Part #29245).

Edelbrock Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.

Specs:

• Series: Victor

• Material: Aluminum
• Gasket Or Seal Included: No

• Throttle Body Recommendations: Edelbrock #38783 4150 style 4V or use #3849 EFI elbow and Ford style single 90mm throttle body #3818

• Recommended Intake Gasket: Fel-Pro #1262 or #1262R.

• Fuel Rail Kit: Edelbrock #3620

• Manifold Height: A-6.25", B-6.25"
• Vehicle Model: Ford
• RPM Range: 4500-8500 RPM
• Rear Maximum Height: 6.250 in

• Plane Type: Single

You can view and download the complete assembly instruction booklet here.
