MANIFOLD, FORD 289-302, VICTOR JR

MANIFOLD, FORD 289-302, VICTOR JR

EDL 2921

$474.95
$474.95
View full details

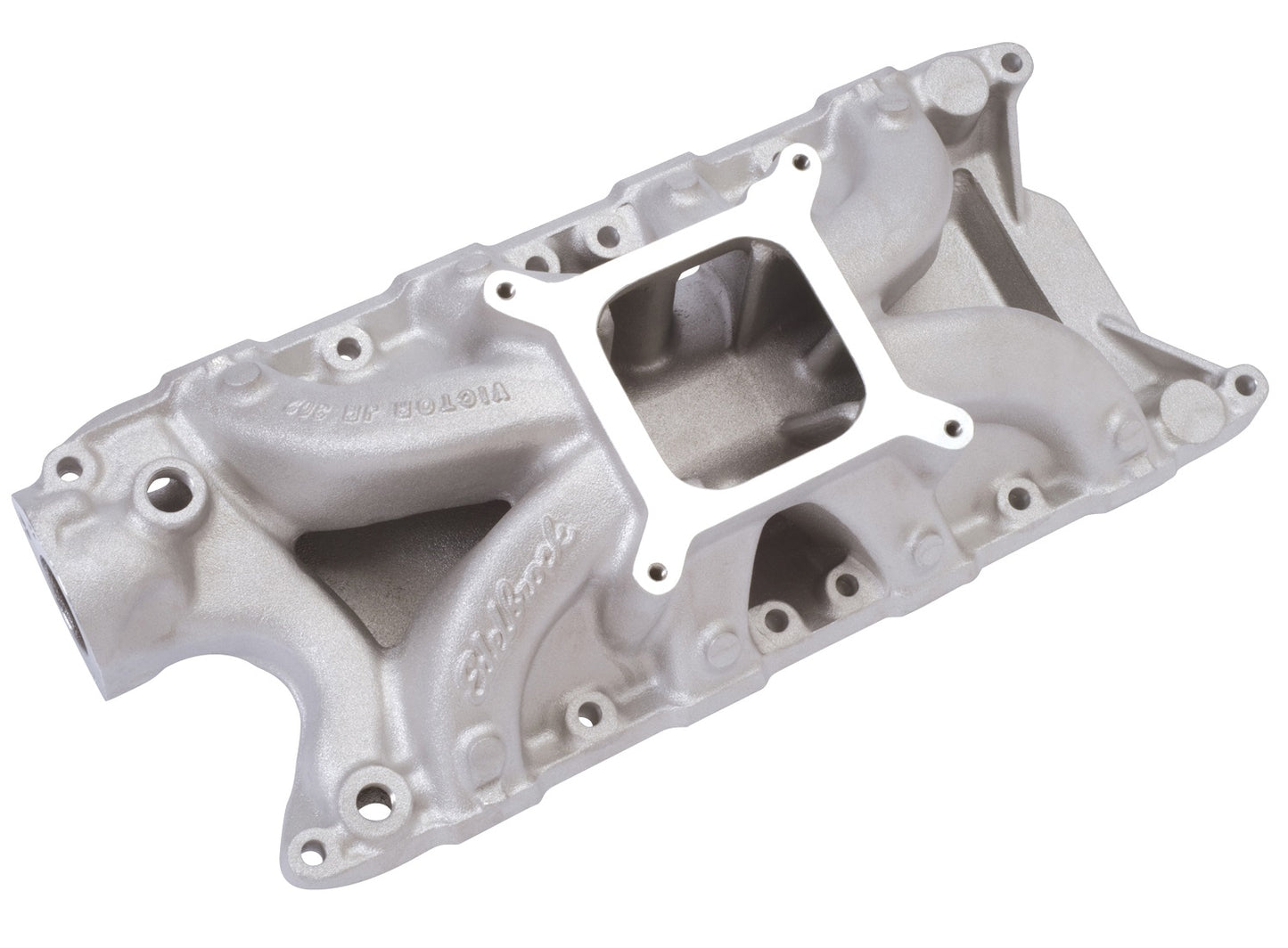

Brand New Edelbrock Victor Jr. 302 Intake Manifold for Small-Block Ford 289-347 V8 (Part #2921).

Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7220 or Fel-Pro #1250
  • Manifold Height: A-5.50", B-5.50"
  • Carb Recommendations: Use appropriate racing carburetor
  • Vehicle Model: Ford
  • RPM Range: 3500-8000 RPM
  • Rear Maximum Height: 5.500 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
