MANIFOLD, BBC SHORT DECK, SUPER VICTOR II FOR CONVENTIONAL HEADS

MANIFOLD, BBC SHORT DECK, SUPER VICTOR II FOR CONVENTIONAL HEADS

EDL 2896

$801.95
$801.95
View full details

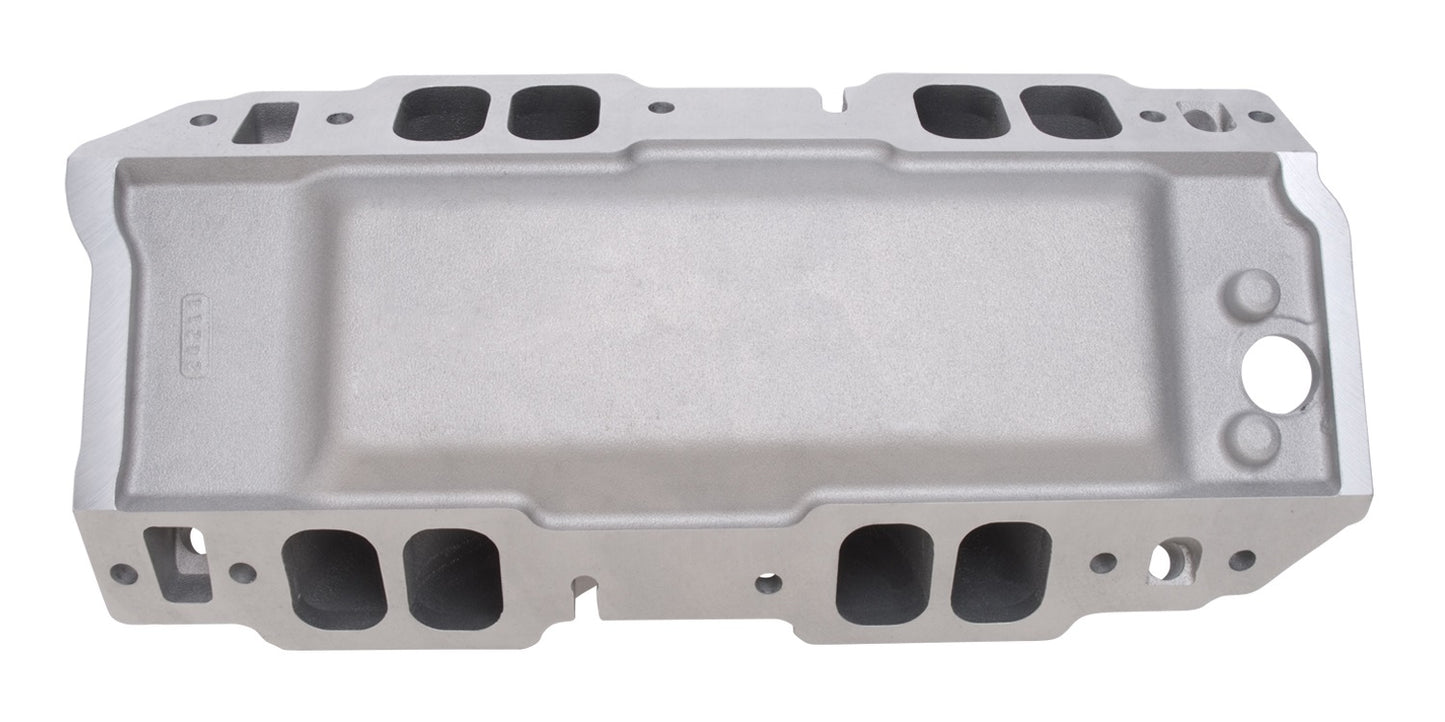

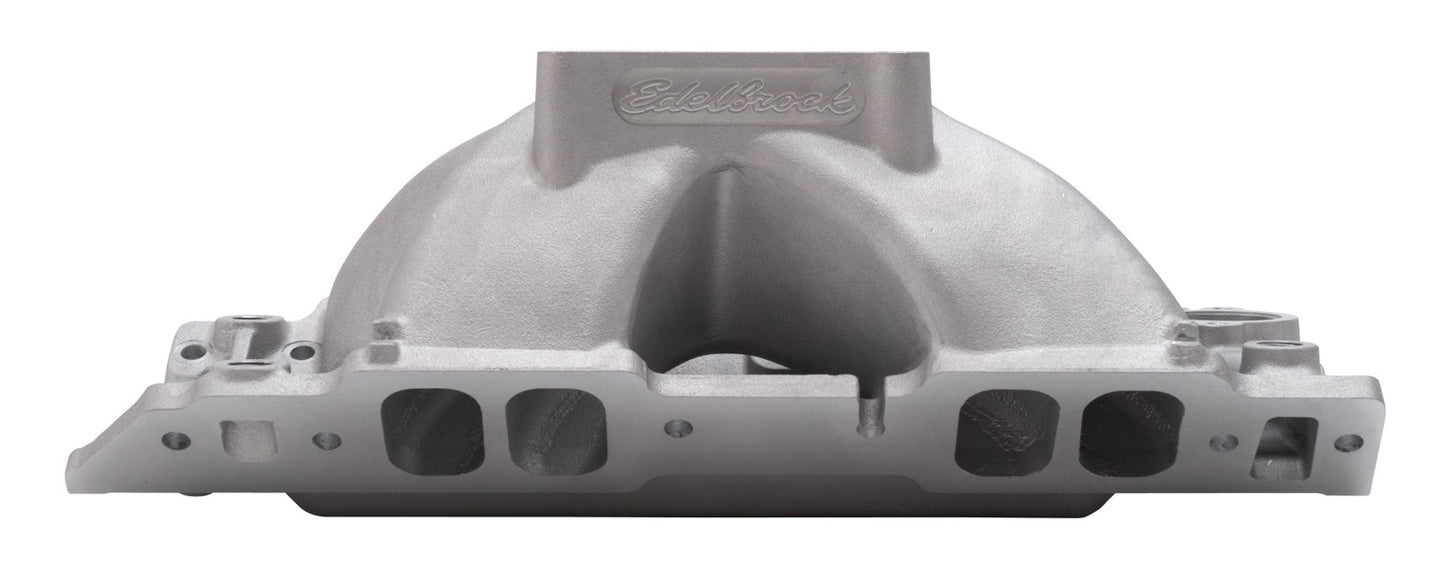

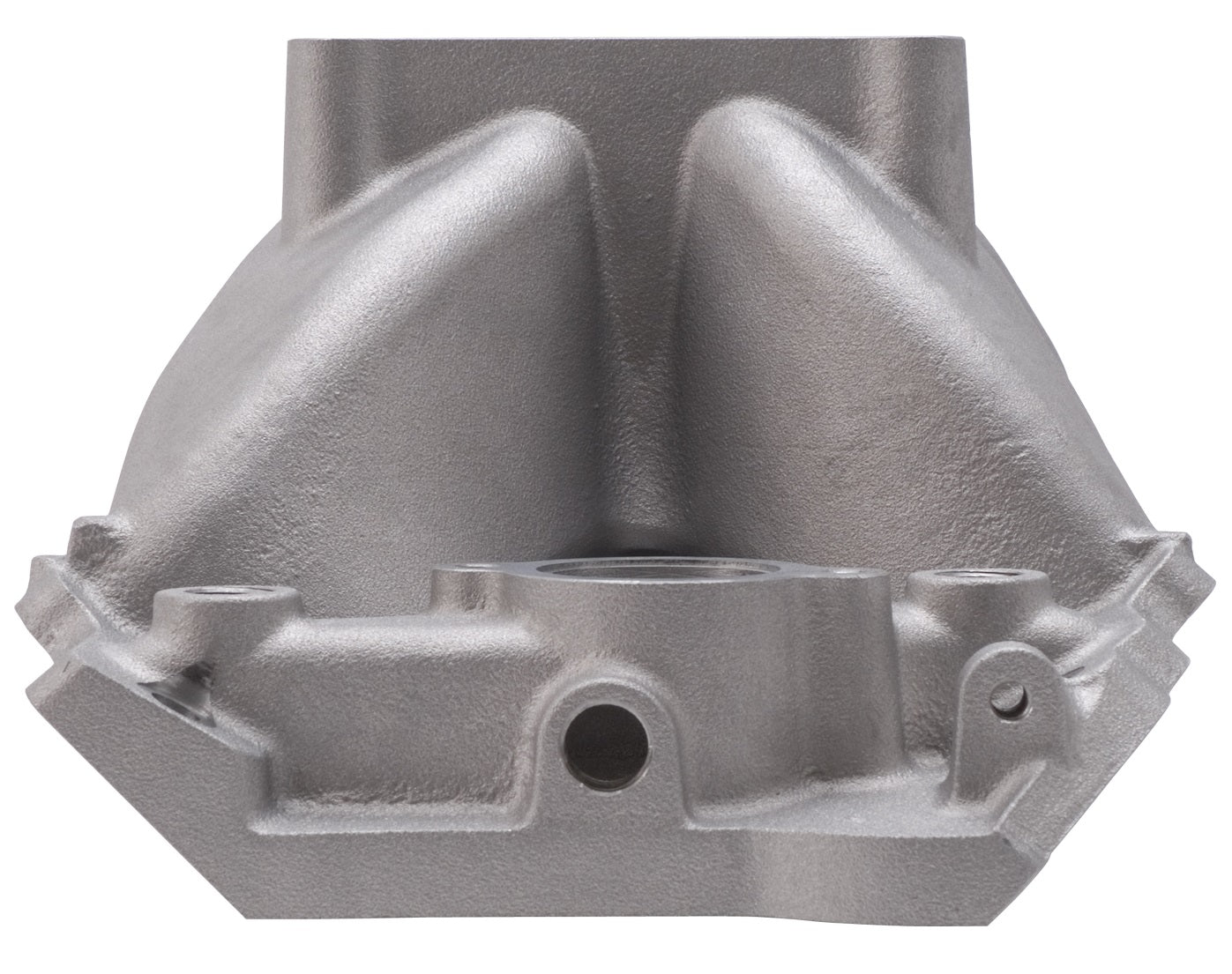

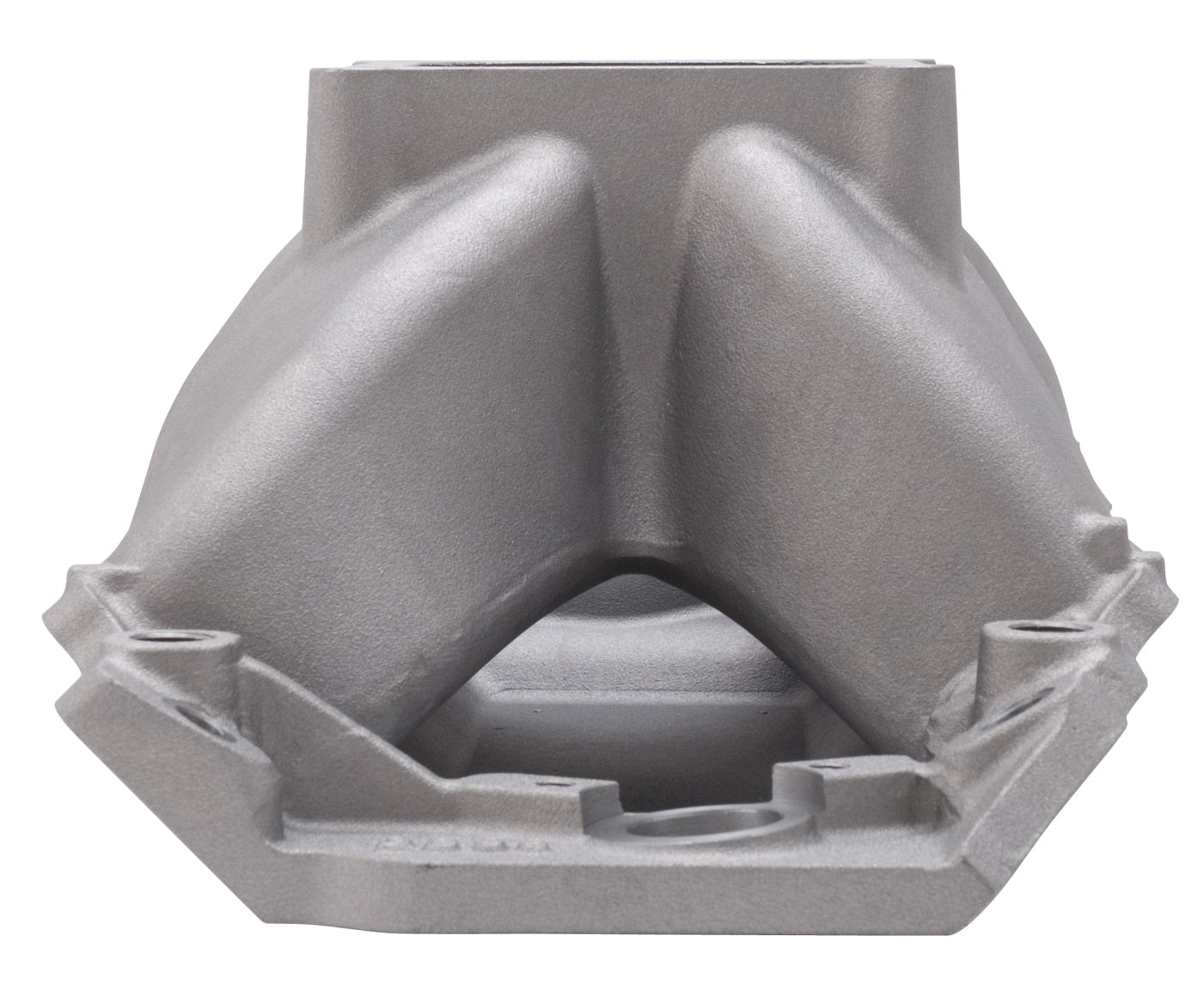

Brand New Edelbrock Super Victor II BBC Intake Manifold 9.8" Deck for Chevrolet Big Block V8 (Part #2896).

Edelbrock Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #1275
  • Manifold Height: A-7.56", B-7.56"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-8500 RPM
  • Rear Maximum Height: 7.560 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
