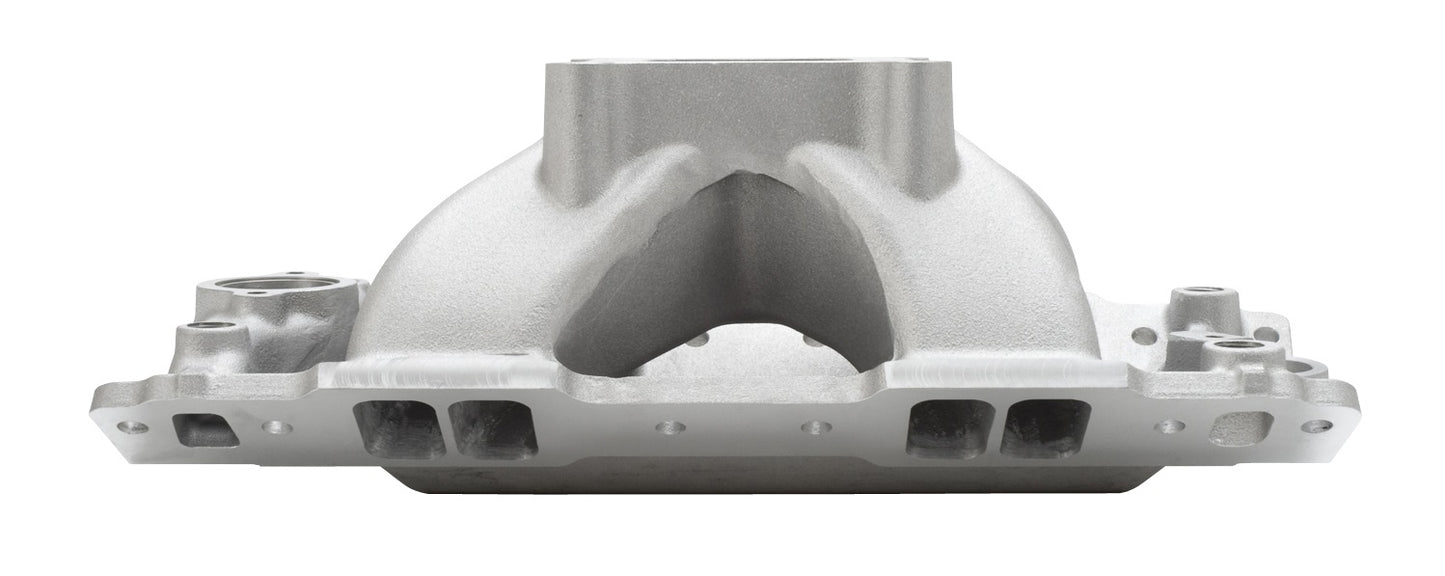

MANIFOLD, CHEVY SBC 23DEG, SUPER VICTOR II
MANIFOLD, CHEVY SBC 23DEG, SUPER VICTOR II
SKU:EDL 2892
Couldn't load pickup availability
Brand New Edelbrock Super Victor II 23 Degree Intake Manifold for 262-400 Small-Block Chevy (Part #2892).
Edelbrock Super Victor II intake manifold is designed to work with modern high flowing 23-degree heads on large cubic inch applications. The runner area at the plenum is 25% larger than our Super Victor #2925, and the port exits are machine-matched for use with a Fel-Pro #1206 intake gasket. Out-of-the-box modern casting techniques create smooth, thin and extended divider walls for "out-of-the-box" performance. This intake is machined for 4150 style carburetors. Can be port matched up to #1207 (1.38" x 2.28"). The Edelbrock Super Victor II is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
- No provisions for exhaust heated chokes or EGR.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
- Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
- To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
Specs:
-
Series: Victor
- Material: Aluminum
-
Gasket Or Seal Included: No
- Recommended Intake Gasket: Edelbrock #7217
- Carb Recommendations: Machined for 4150 style carburetors
- Vehicle Model: Chevrolet
- RPM Range: 4000-8000 RPM
-
Rear Maximum Height: 6.560 in
- Plane Type: Single
You can view and download the complete assembly instruction booklet here.
