KIT, VALVE SPRING- BEEHIVE 1.28" O.D. LS6 PLUS-W/ STEEL RETAINERS

Brand New Edelbrock COMP Cams 0.559" Max Lift LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers (Part #26906CS-KIT).

The COMP Cams® .559" Lift Beehive™ LS6+ Valve Springs are now available in complete valve spring kits that allow for easy installation on popular LS applications.

Features:

• 4% higher load and .030" higher lift capacity than Blue GM LS6 Springs

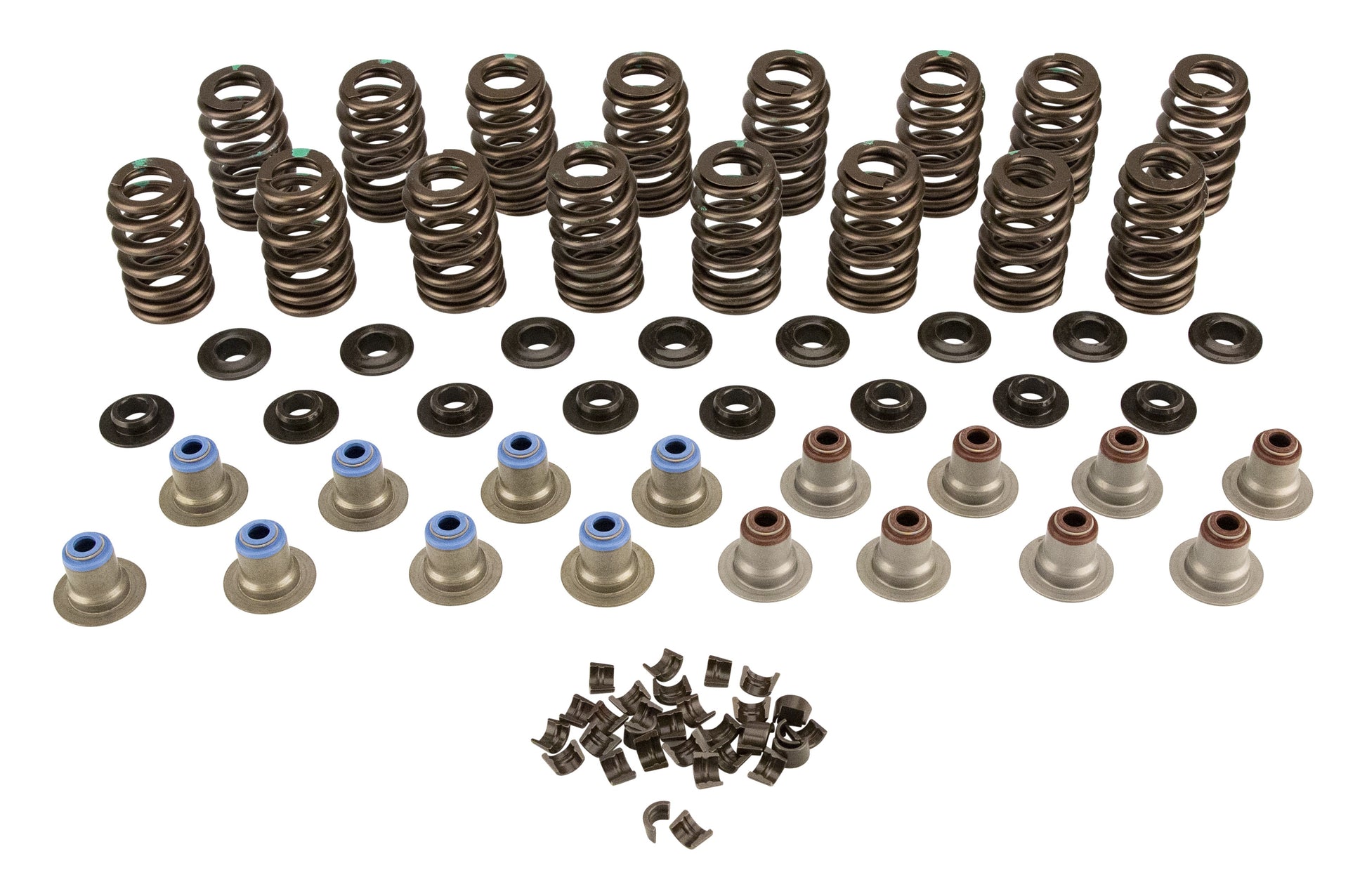

• Includes springs, Chromemoly retainers, valve locks, seals, and spring seats

Specs:

• Retainer Material: Chromemoly Steel

• Max Lift: 0.559

• Installed Height: 1.8

• Coil Bind Height: 1.181

• O.D. of Outer: 1.077/1.282

• I.D. of Outer: .655/.860

• Retainers Part #: 774-16

• Valve Locks Part #: 623-16

• Valve Lock Type: 7° Steel

• Spring Style: Beehive

• Spring Seats Type: I.D. Locator

• Spring Seats Part #: 528-KIT (Seats/Seals)

• Spring Rate: 386

• Valve Seals Part #: 528-KIT (Seats/Seals)

• Spring Part #: 26906-16

• Seat Pressure: 92

• Make: GM
