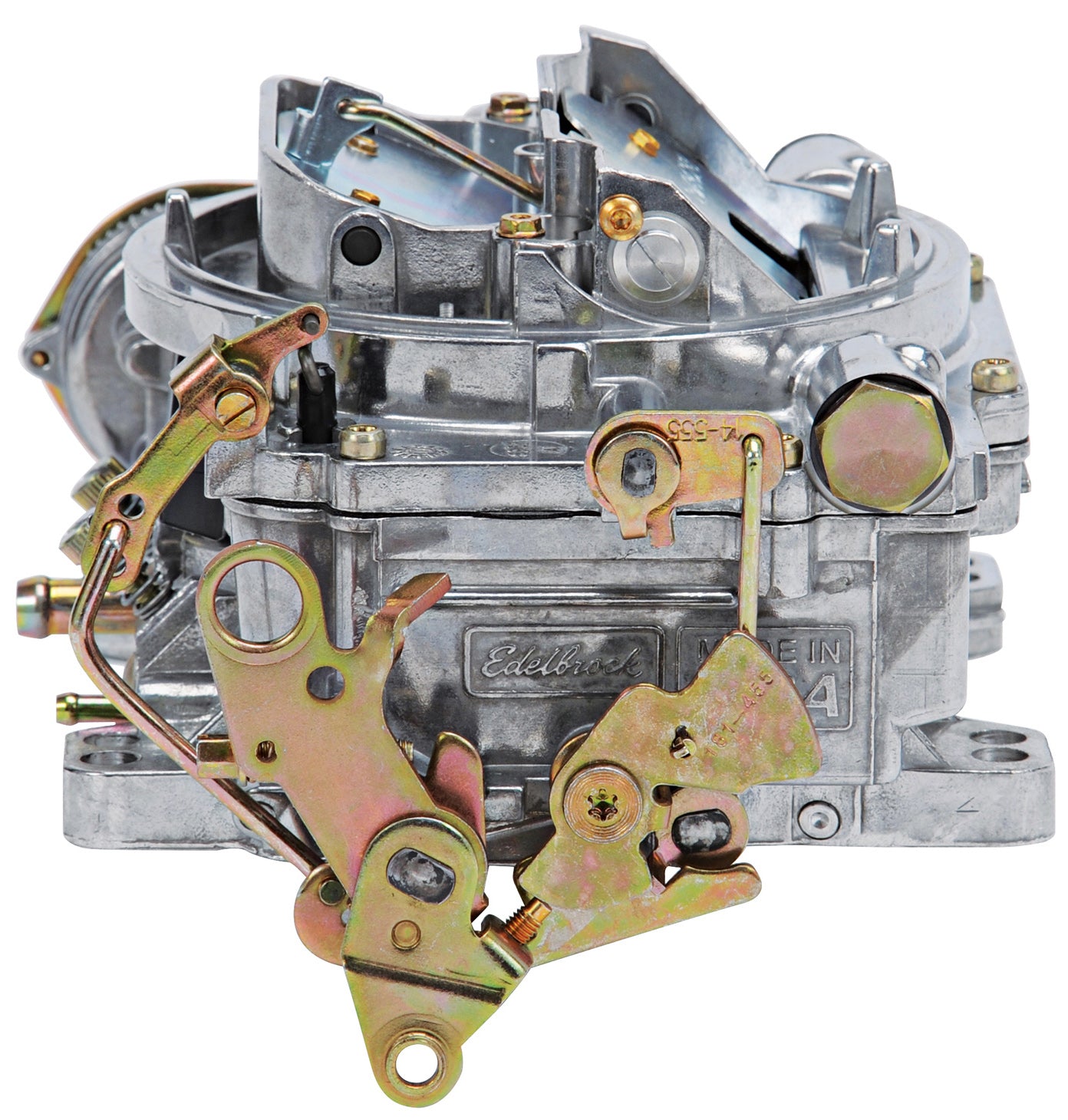

EDELBROCK CARBURETOR,AVS2,ANNULAR BOOSTER,500 CFM,ELECTRIC CHOKE

Brand New Edelbrock 500 CFM AVS 2 Carburetor, Satin Finish, Electric Choke, Annular Booster (Part #1901).

The Edelbrock #1901 AVS2 Series 500 CFM Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS Manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance.

#1901 is calibrated for single-quad applications and factory equipped with: metering jets - primary .095, secondary .095, primary rod .070 x .052, orange spring (5 hg). Use carb studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Features:

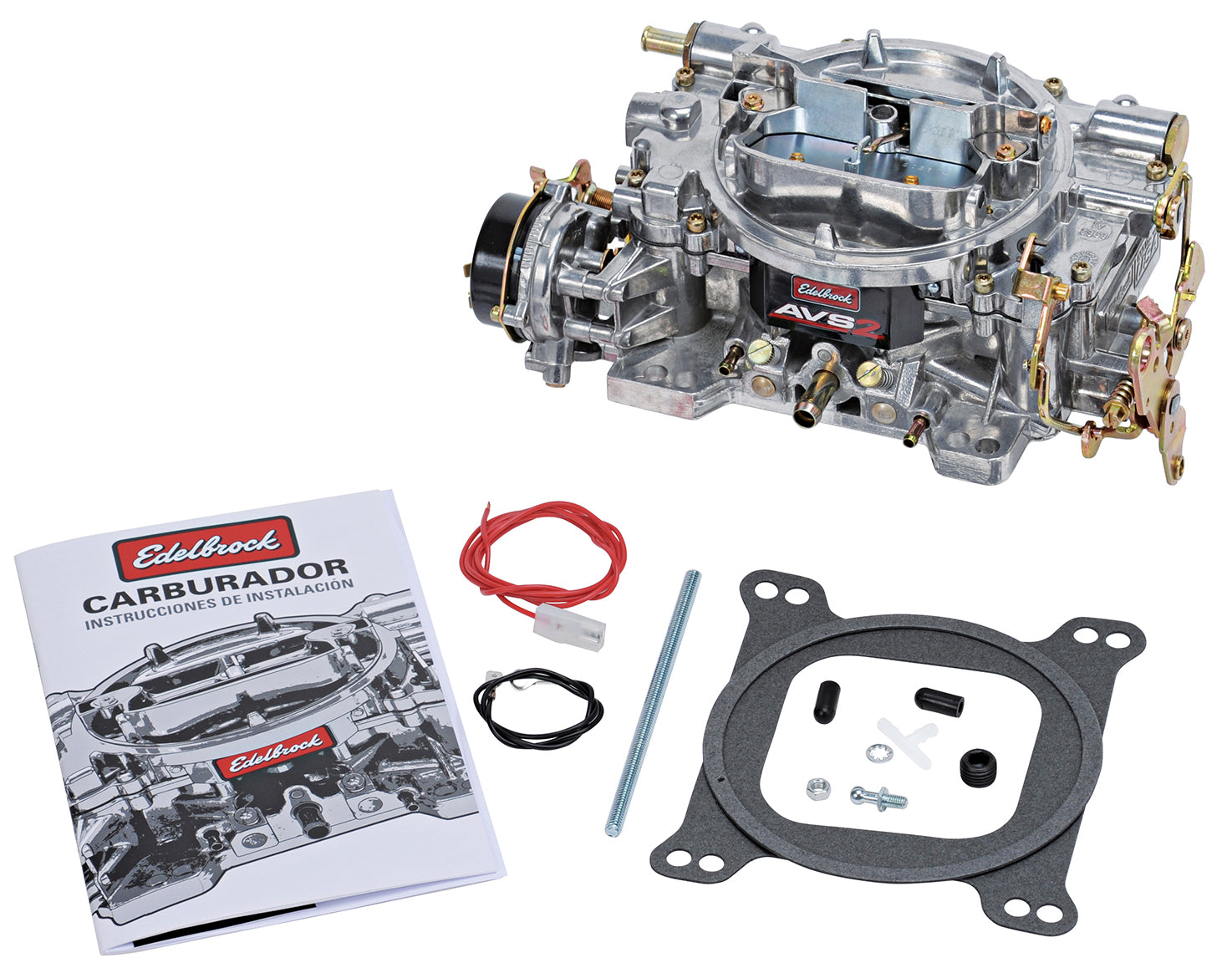

• Gasket: Included

• Finish: Satin

• Material: Aluminum

• Barrels: 4

• Flange: Square

• Primary Jet Diameter: 0.095"

• Secondary Jet Diameter: 0.095"

• Main Venturi Diameter: 1.19"

• Metering Rod Size: .070" x .052"

• Body Height: 3.25"

• Primary Bore: 1.44"

• Secondary Bore: 1.6875"

• Spring Force: 5" Hg (orange)

You can view and download the complete assembly instruction booklets for this carburetor here.
