CYLINDER HEADS,ALUMINUM,FLAT HEAD FORD,38-48,V-8,PAIR,SCRIPT LOGO

CYLINDER HEADS,ALUMINUM,FLAT HEAD FORD,38-48,V-8,PAIR,SCRIPT LOGO

EDL 1125

$987.50
$987.50
View full details

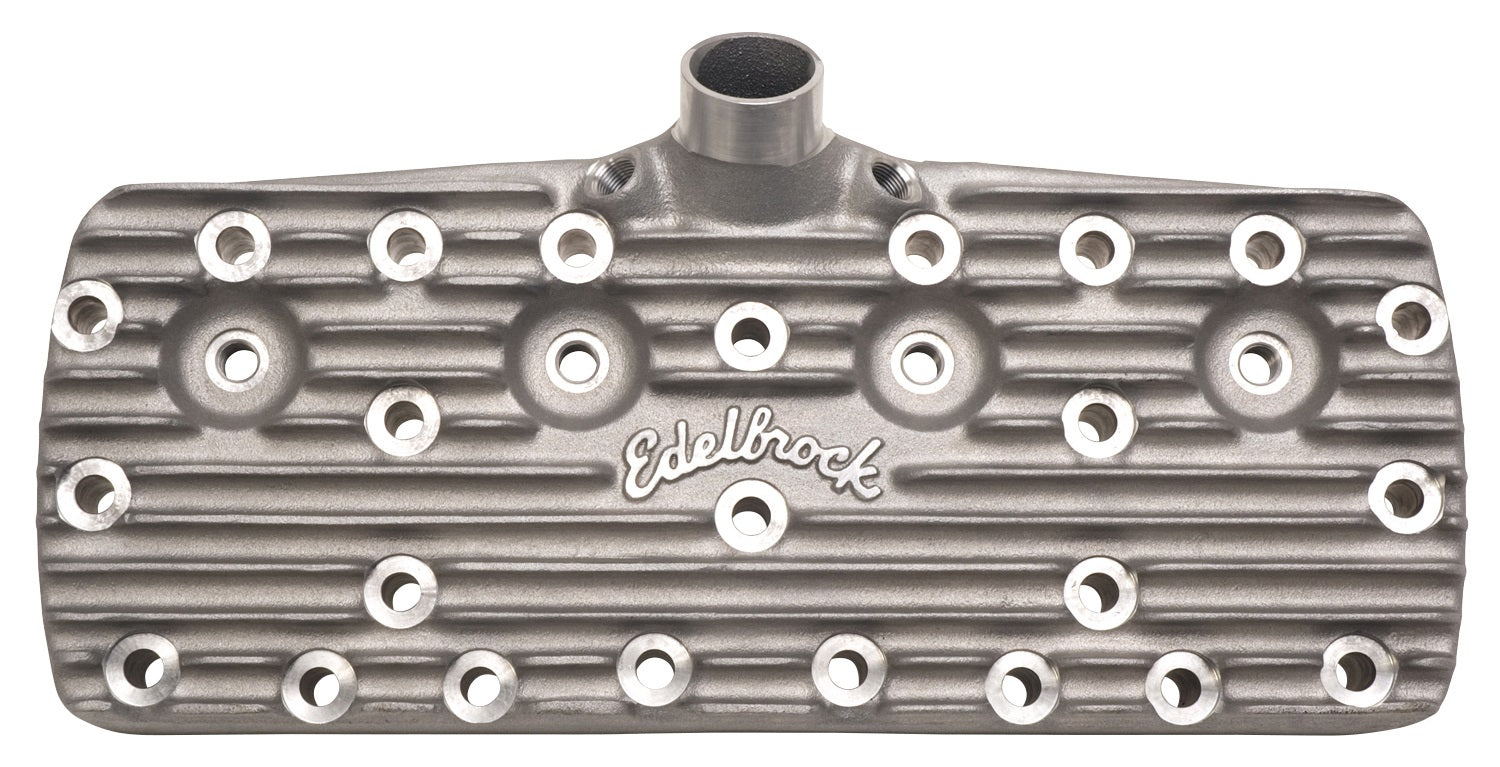

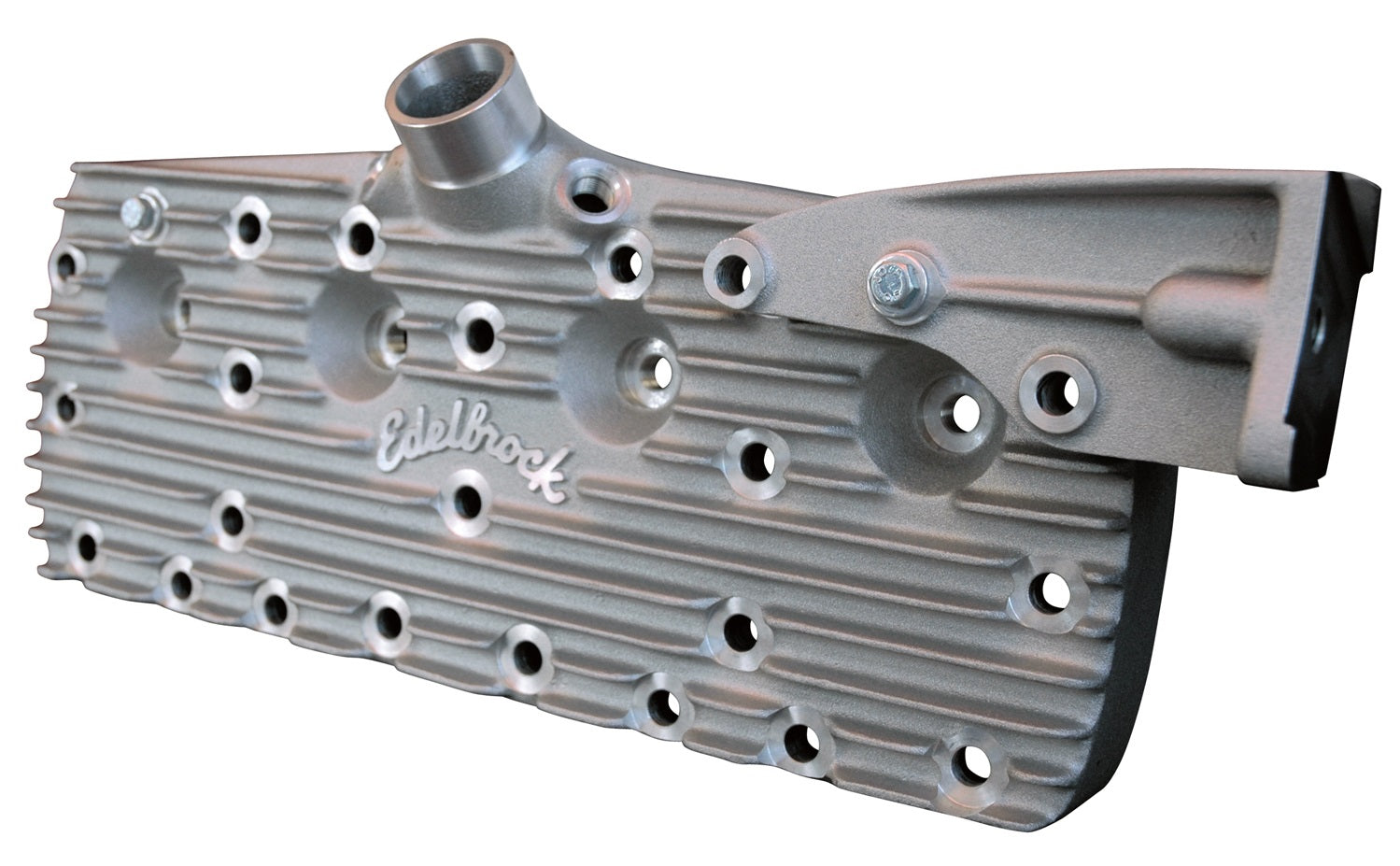

Brand New Edelbrock Flathead Ford Cylinder Heads With Script Logo (Part #1125).

The Edelbrock Ford Flathead cylinder heads features the original Edelbrock script logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

Compatible with:

  • 1938-1948 Ford & Mercury Flathead Engines
Installation Notes:
  • Gaskets for 1938-48 use Victor #3036 or Fel-Pro #7548 or Edelbrock Head Gasket Set #7394
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat
  • Head stud kit for 1938-48 use #8505
  • Generator stud kit for 1938-48 use #8506

Specs:

  • Series: Flathead
  • Material: Aluminum
  • Quantity: Set of 2

You can view and download the complete assembly instruction booklet here.
