ANTI-ROLL BAR SET,12-20 BMW 228i,320i

ANTI-ROLL BAR SET,12-20 BMW 228i,320i

DIN D120-0585

$899.95
$899.95
View full details

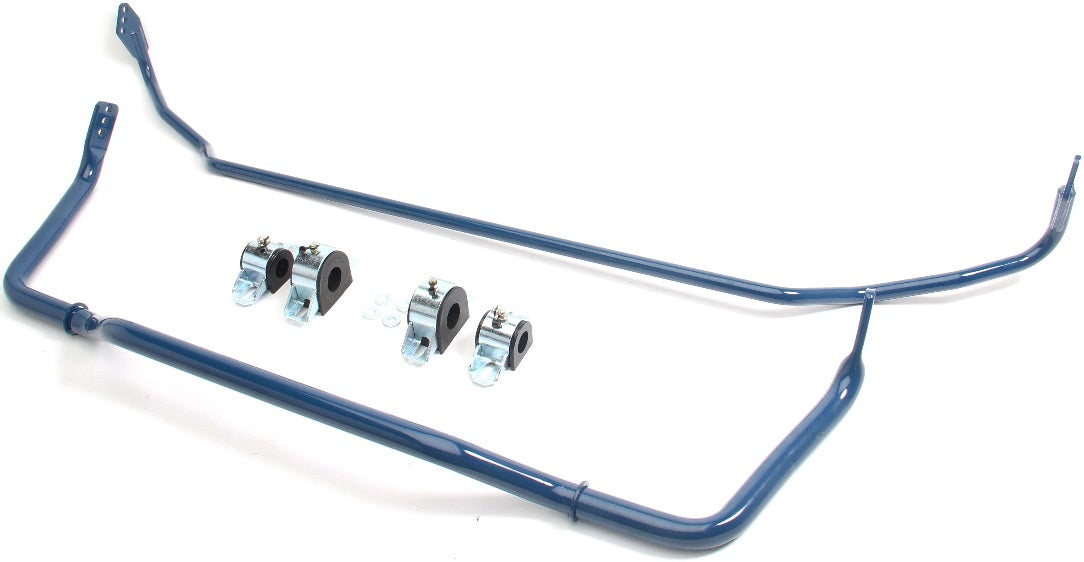

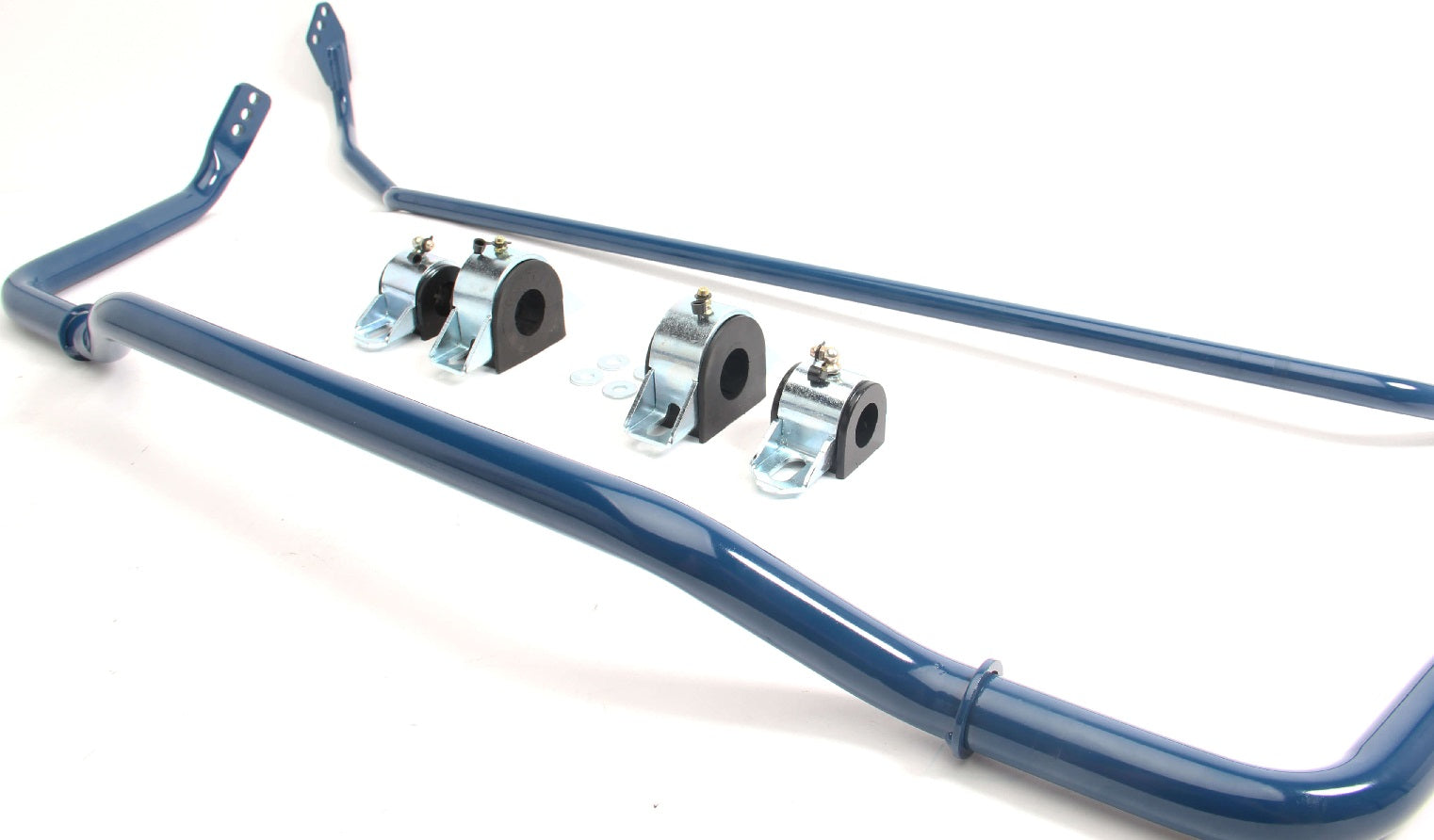

BRAND NEW DINAN LIGHTWEIGHT TUBULAR ANTI-ROLL BAR SWAY BAR SET, FRONT 28MM, REAR 22MM, COMPATIBLE WITH 2012-2018 BMW 320I

FRONT ANTI-ROLL BAR: STOCK BAR IS 22.2 MM ON THE M235I/M240I WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 45% TO 76% STIFFER THAN THE STOCK FRONT SWAY BAR. THE STOCK BAR IS 24.2 MM ON THE 328I/330I W M-SPORT WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 50% TO 81% STIFFER THAN THE STOCK FRONT SWAY BAR.

THE STOCK BAR IS 21.2 MM ON THE 335I/340I/435I/440I WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 63% TO 97% STIFFER THAN THE STOCK FRONT SWAY BAR. THE STOCK BAR IS 22.2 MM ON THE 335I/340I/435I/440I W M-SPORT WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 54% TO 87% STIFFER THAN THE STOCK FRONT SWAY BAR.

REAR ANTI-ROLL BAR: STOCK BAR IS 15 MM ON THE M235I/M240I WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 84% TO 130% STIFFER THAN THE STOCK REAR SWAY BAR. STOCK BAR IS 12 MM ON THE 335I/340I/435I/440I WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 359% TO 474% STIFFER THAN THE STOCK REAR SWAY BAR.

STOCK BAR IS 13 MM ON THE 328I/330I/335I/340I/435I/440I W M-SPORT WHICH MEANS THE NEW BAR CAN BE ADJUSTED FROM 243% TO 329% STIFFER THAN THE STOCK REAR SWAY BAR.

NOTE: NOT COMPATIBLE WITH XDRIVE VEHICLES OR THE WAGON AND GT BODY STYLES.

COMPATIBLE WITH:

  • BMW:
    • 2014-2016 F22 228I/M235I
    • 2015-2016 F23 228I/M235I CONVERTIBLE
    • 2013-2016 F30 320I
    • 2012-2016 F30 328I
    • 2012-2015 F30 335I
    • 2016 F30 LCI 340I
    • 2014-2016 F32 428I/435I
    • 2014-2016 F33 428I/435I CONVERTIBLE
    • 2015-2016 F36 428I/435I GRAN COUPE

FEATURES

  • FRONT - LARGE 28MM SIZE (STOCK BAR IS 21.2 TO 24.2MM DEPENDING ON APPLICATION); REAR - LARGE 19MM SIZE (STOCK BAR IS 12-15MM DEPENDING ON APPLICATION)
  • FRONT - 3 HOLE BAR WITH 3 POSSIBLE POSITIONS ON BAR; REAR - 3 HOLE BAR WITH 3 POSSIBLE POSITIONS ON BAR TUBULAR (HOLLOW) CONSTRUCTION
  • ONLY TUBULAR ANTI-ROLL BARS WITH A LARGE RANGE OF ADJUSTMENT ON THE MARKET
  • LESS BODY ROLL
  • MORE MECHANICAL GRIP
  • MORE STABLE AT THE LIMIT

SPECS:

  • BRAND: DINAN
  • DINAN POINT VALUE: 2
  • HEIGHT: 4
  • LENGTH: 40
  • WIDTH: 10
  • PRODUCT TYPE: SWAY BAR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE SWAY BARS HERE.
