REAR KIT,65-76 GM,B-BODY/IMPALA

REAR KIT,65-76 GM,B-BODY/IMPALA

CUR CE-GMB6576X

$1,799.99
$1,799.99

Yes, we have this item in stock and ready to ship immediately!
This item requires an additional shipping fee of $50 over standard shipping.
View full details

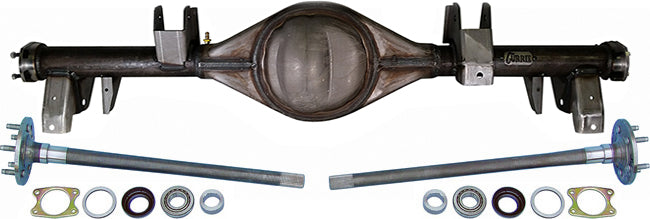

  • BRAND NEW CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW. CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

  • FITS:
    • CHEVROLET:
      • 1965-1970 BEL AIR, BISCAYNE, CAPRICE, AND IMPALA
  • FEATURES:
    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (63 1/2") AND PINION OFFSET SPECS
      • 63 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • ALL NEW LASER-CUT AND FORMED TRAILING ARM AND SHOCK MOUNT BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
  • AXLES INCLUDE:
    • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
    • WE HAVE CURRIE DRUM BRAKE KITS, CURRIE DISC BRAKE KITS, AND WILWOOD DISC BRAKE KITS AVAILABLE TO BOLT DIRECTLY ON THIS REAR END
