HI-TEK DEEP TRANSMISSION PAN,07-22 GM 1500,6L80E,ALUM

Brand New B&M Hi-Tek Deep Transmission Pan - 6L80E - Aluminum (Part #70392).

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation.

Note:  Fits Various 2007-2022 GM 1500 trucks and 2007-2022 Full-Size SUV's with 6L80E Transmission. Please Verify the Transmission Type Prior to Purchase. Does Not fit Camaro 6L80E transmission. See Part# 70391 for 2010-2015 Camaro 6L80E trans pan.

Compatible with:

• Chevrolet:
  • 2009-2013 Avalanche
  • 2009-2022 Silverado 1500

  • 2019 Silverado 1500 LD
  • 2009-2014 Suburban 1500
  • 2015-2022 Suburban
  • 2009-2022 Tahoe
• Cadillac:
  • 2007-2015 Escalade

  • 2007-2015 Escalade ESV
  • 2007-2013 Escalade EXT
• GMC:
• 2007-2022 Sierra 1500
• 2007-2022 Yukon
• 2007-2014 Yukon XL 1500
• 2015-2022 Yukon XL
• Hummer:
  • 2008-2009 H2

Features:

• Drain Port & Magnetic Drain Plug for Easy Servicing
• Features Temperature Sensor Port
• Additional 2-quart Fluid Capacity
• Improved Cooling Properties
• Lifetime Limited Warranty

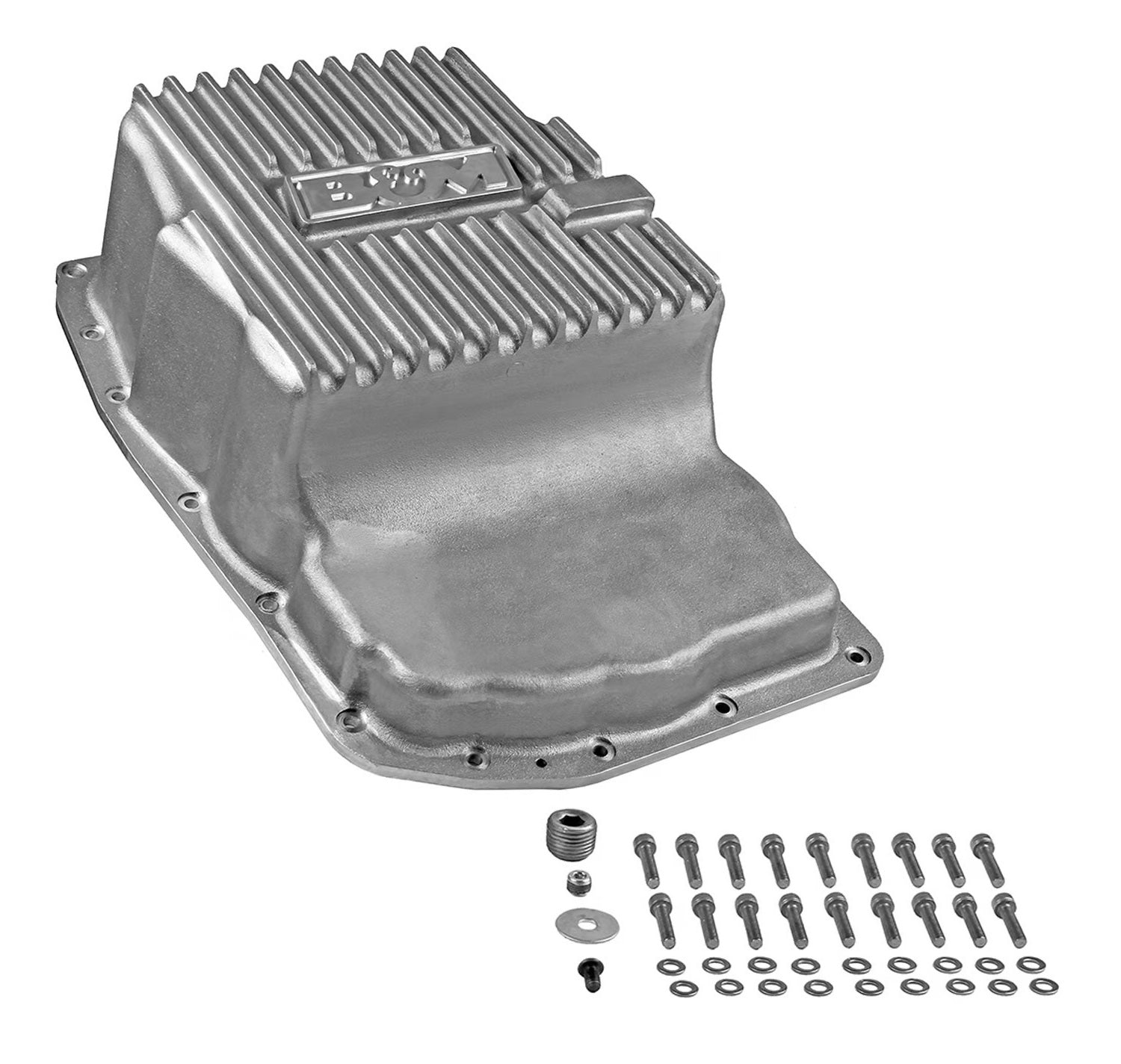

• Includes Hardware
• Utilizes stock filter
• Easy Installation
• B&M Quality

Specs:

• Additional Fluid Capacity (qts): 2
• Bolt Count: 18
• Bolt/Studs Included: Yes
• Brand: B&M
• Color/Finish: Natural
• Drain Plug Included: Yes
• Filler Plug Included: No
• Gasket Included: No
• Material: A356.0-T6 Aluminum
• Transmission: 6L80E
• Transmission Type: Automatic

You can view and download the complete assembly instruction booklet here.
