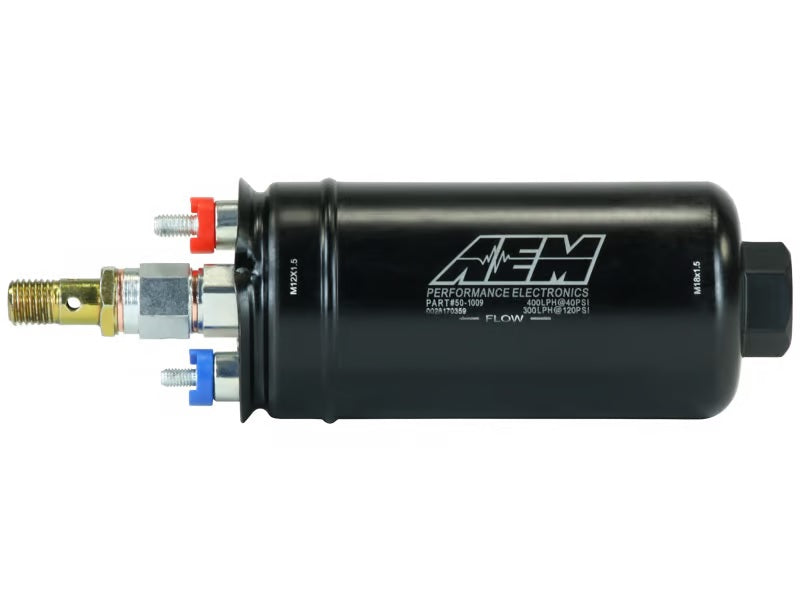

FUEL PUMP,ELECTRIC,INLINE,400LPH,18X1.5 FEMALE IN,12X1.5 MALE OUT,GAS,METHANOL,E

Brand New AEM 400LPH Inline High Flow Fuel Pump, 105 GPH at 40 PSI, E85-90, Gas, “044 Style” Physical Configuration But with AN Inlet & Discharge Port Connection. (Part #50-1009).

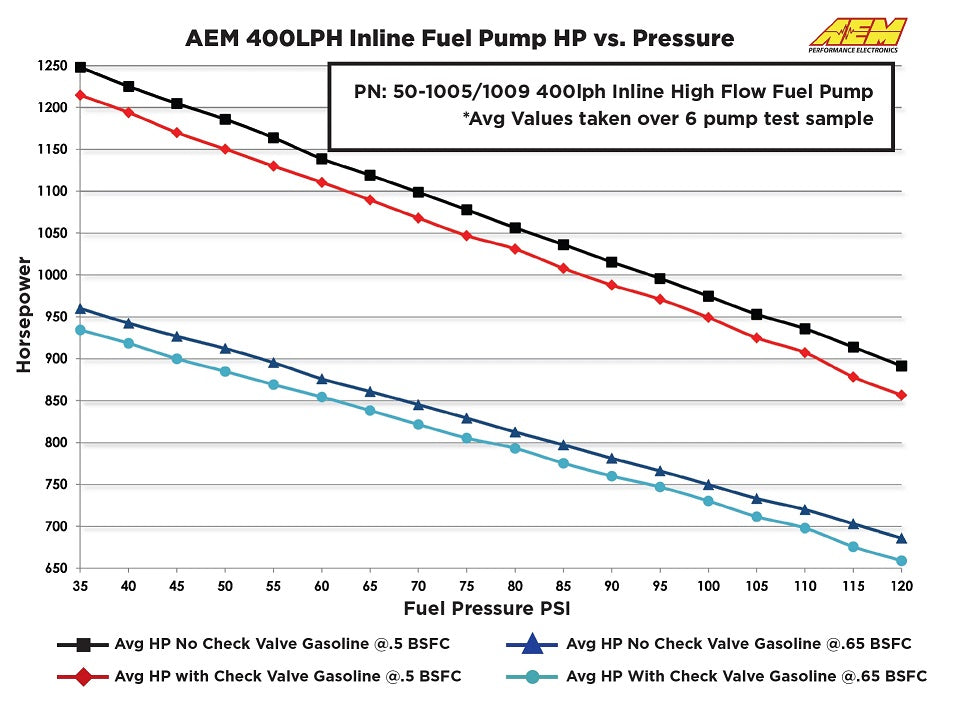

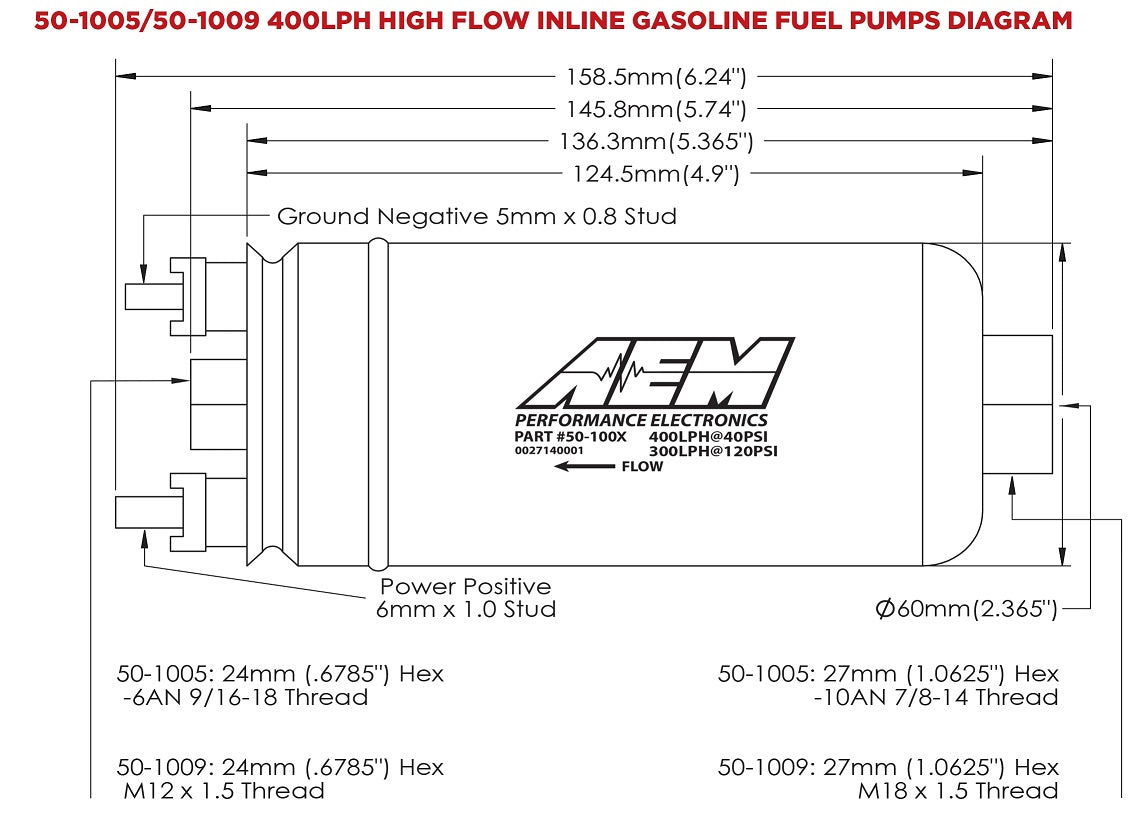

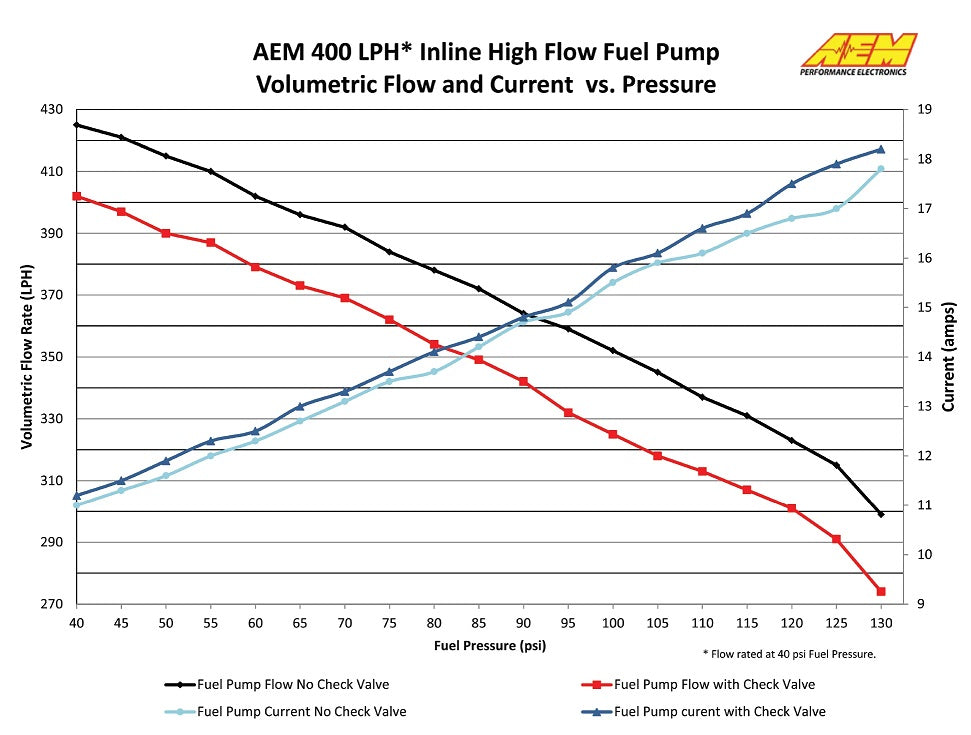

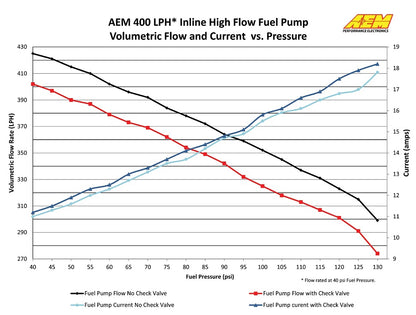

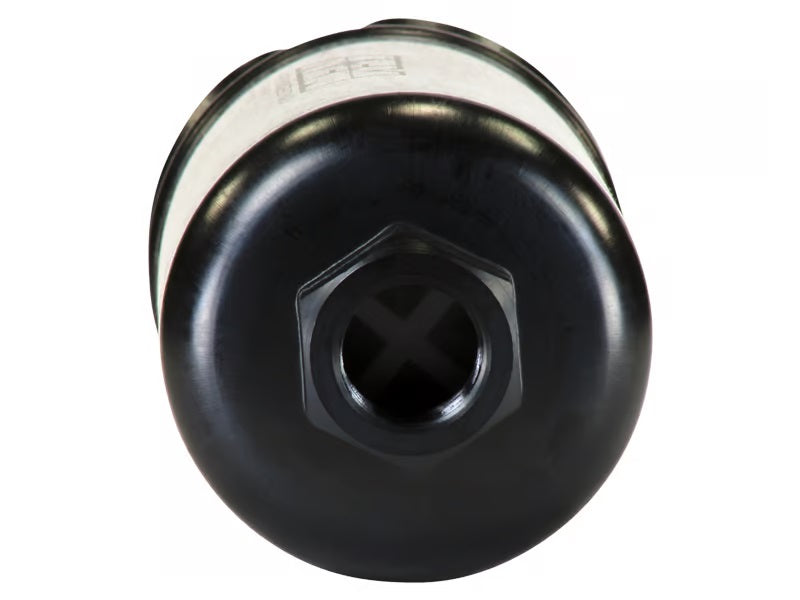

The 400LPH Metric High-Flow Inline Fuel Pump has an M18X1.5 female inlet and M12x1.5 male outlet. It utilizes the industry standard "044 Style" envelope. It is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 PSI boost!* It flows 400LPH (105 GPH) at 40 PSI, 340 LPH (90 GPH) at 73 PSI, and 270 LPH (71 GPH) at 120 PSI.

AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 PSI boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI.

The AEM 400LPH AN Fittings High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels.

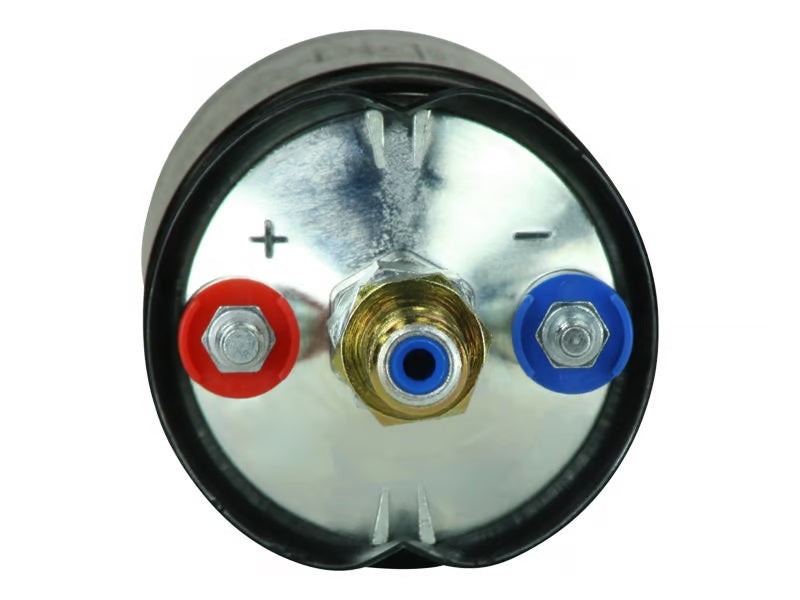

NOTE: Ensure polarity of the electrical plug in your tank is correct for your pump. If it is not correct you can re-pin it or use the supplied plug. Although AEM's Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. Check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump. AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made. Flow capability for horsepower support is dependent on fuel hose diameter, system electrical voltage, and amperage capabilities.

Features:

• Designed for high output naturally aspirated and forced induction EFI vehicles

• Popular "044 Style" physical configuration but with AN inlet & discharge port connections
• Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
• Installs externally or in-tank
• Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
• Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
• Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
• Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves
