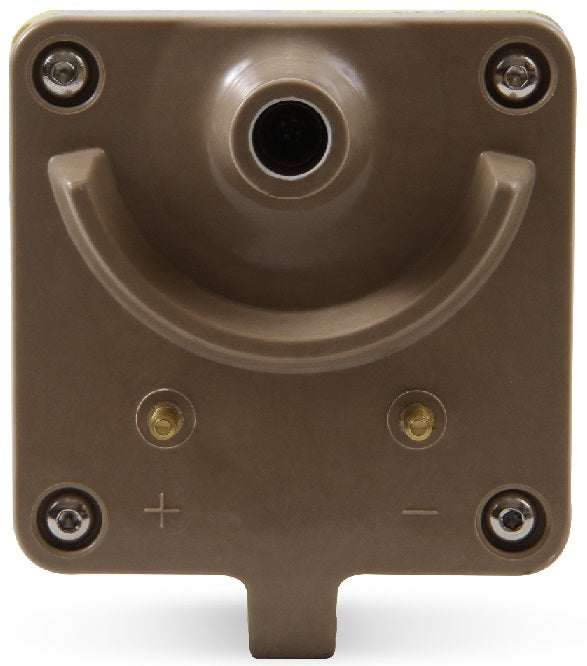

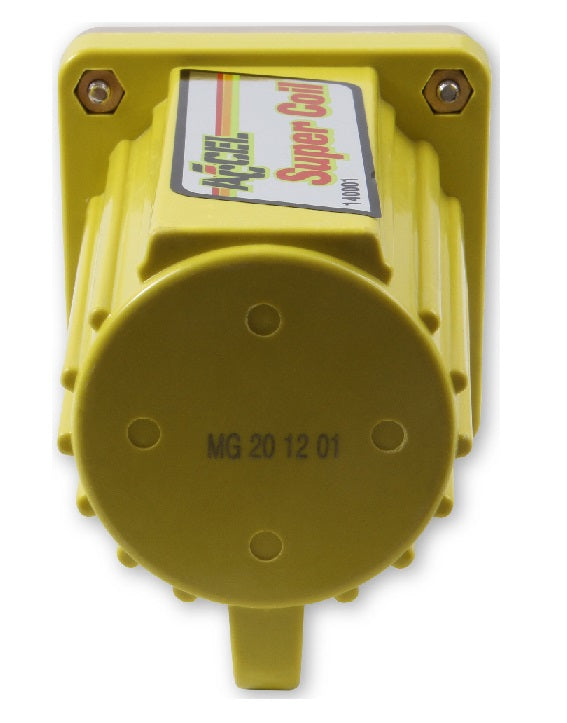

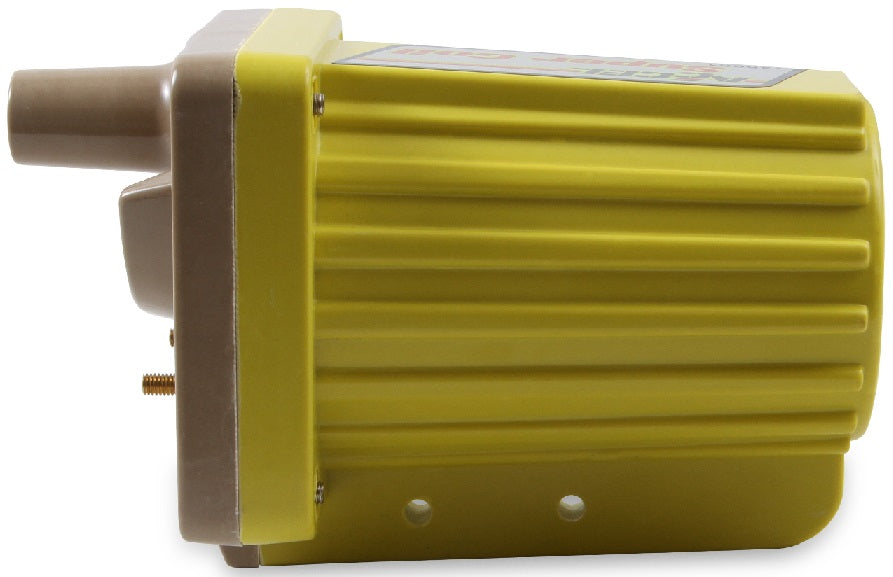

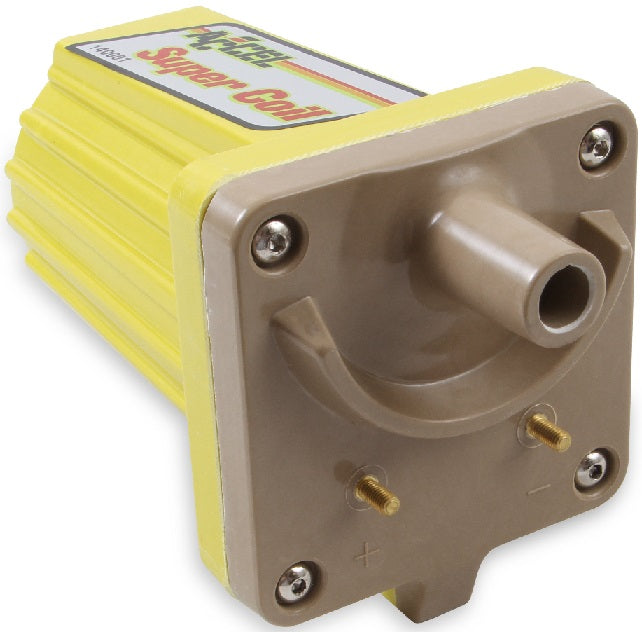

IGNITION COIL,SUPER COIL

BRAND NEW ACCEL SUPER COIL IGNITION COIL, INCLUDES 0.85 OHM BALLAST RESISTOR & MOUNTING HARDWARE, UP TO 65,000 RPM, 45,000 VOLTS

ENGINEERED FOR FASTER RISE TIME, LONGER SPARK DURATION AND INCREASED PERFORMANCE. UNIQUE DESIGN WITH PREMIUM GRADE WIRE, SPECIAL LOW RESISTANCE, HIGH TURNS RATIO WINDINGS. PRODUCES HIGHER SPARK ENERGY WITH BREAKERLESS ELECTRONIC IGNITION SYSTEMS. FOR POINTS APPLICATION THE SUPPLIED 0.85 OHM BALLAST RESISTOR MUST BE USED IN CONJUNCTION WITH THE VEHICLE ORIGINAL BALLAST RESISTOR, IF SO EQUIPPED.

OVERSIZED MOLDED CASE WITH INTEGRAL COOLING FINS AND HIGH CAPACITY OIL FILLED CONSTRUCTION PROVIDE HIGH THERMAL CONDUCTIVITY ENSURING COOL OPERATION AND LONG LIFE. EXTRA TALL TAN ALKYD TOWER AND INTEGRAL VOLTAGE DAM ELIMINATE "FLASHOVER" TO PRIMARY TERMINALS. COMES COMPLETE WITH MOUNTING HARDWARE AND 0.85 OHM BALLAST RESISTOR. EFFECTIVE UP TO 6,500 RPM.

FEATURES:

• OIL FILLED FOR BETTER COOLING

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: ACCEL
• COLOR: YELLOW
• FINISH: ACCEL YELLOW
• MATERIAL: POLYMER
• PRODUCT TYPE: IGNITION COILS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
