BUSHING KIT,CROSS SHAFT Z-BAR,55-57 CHEVY

BUSHING KIT,CROSS SHAFT Z-BAR,55-57 CHEVY

650-4624

$44.99
$44.99

Yes, we have this item in stock and ready to ship immediately!
View full details
  • BRAND NEW SOUTHWEST SPEED FACTORY REPLACEMENT CLUTCH PEDAL CROSS SHAFT BOLT & BUSHING KIT THAT FITS 1955-1957 TRI-FIVE CHEVYS WITH MANUAL TRANSMISSIONS.

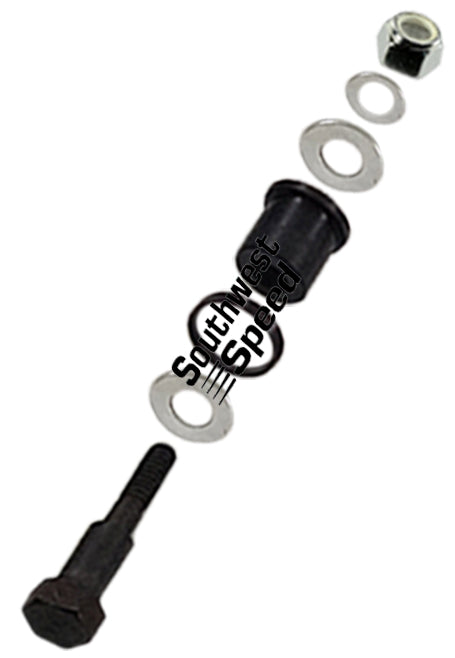

  • THIS SOUTHWEST SPEED CLUTCH PEDAL CROSS SHAFT BOLT & BUSHING KIT ARE A REPRODUCTION OF THE ORIGINAL CLUTCH PEDAL PUSH ROD BOLT & BUSHING USED ON 1955-1957 CHEVY PASSENGER CARS WITH MANUAL TRANSMISSIONS. THIS BOLT & BUSHING KIT ARE USED FOR ATTACHING THE CLUTCH PEDAL PUSH ROD TO THE CROSS SHAFT. THIS KIT INCLUDES A STEEL BOLT, TWO DELRIN BUSHINGS, 3 FLAT WASHERS, & AN NYLON LOCKING NUT. THE BOLT OR BUSHINGS DO NOT HAVE THE GM CASTING NUMBER BUT WILL LOOK, FIT, AND PERFORM JUST LIKE ORIGINAL. IF YOU ARE DOING A RESTORATION OF A 1955-1957 CLASSIC TRI-FIVE CHEVY OR JUST WANT THE CORRECT CLUTCH PEDAL CROSS SHAFT BOLT & BUSHING TO FINISH THAT ROD PROJECT, THESE ARE THE PERFECT PARTS.

    FEATURES:

    • STEEL BOLT WITH BLACK OXIDE FINISH
    • FACTORY REPRODUCTION
    • CORROSION-RESISTANT LOCK NUT WITH NYLON INSERT
    • REQUIRED FOR ATTACHING THE CLUTCH PEDAL PUSH ROD TO THE CLUTCH CROSS SHAFT
    • DELRIN BUSHINGS DESIGNED TO PROVIDE SMOOTHER MOVEMENT & GREATER DURABILITY
    • INCLUDES ONE STEEL BOLT, TWO DELRIN BUSHINGS, & THE NECESSARY HARDWARE TO MOUNT THE CLUTCH PEDAL PUSH ROD TO THE CLUTCH CROSS SHAFT

    APPLICATIONS:

    • 1955-1957 CHEVY BEL AIR
    • 1955-1957 CHEVY 150
    • 1955-1957 CHEVY 210
    • 1957 CHEVY DELRAY
    • 1955-1957 CHEVY NOMAD
    • 1955-1957 CHEVY SEDAN DELIVERY

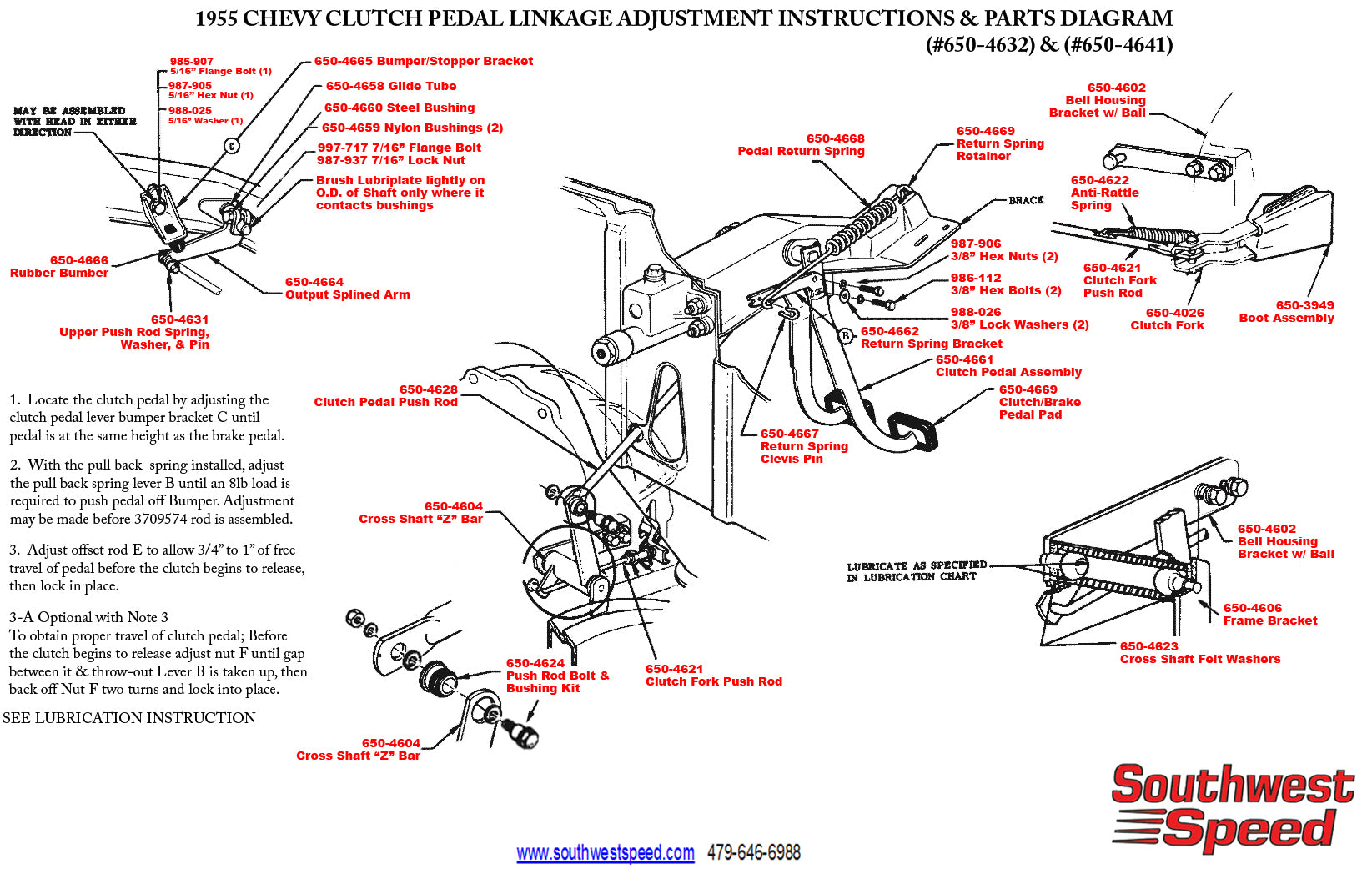

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE 1955 CHEVY CLUTCH LINKAGE ADJUSTMENT INSTRUCTIONS WITH DETAILED PARTS DIAGRAM HERE.

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE 1956 CHEVY CLUTCH LINKAGE ADJUSTMENT INSTRUCTIONS WITH DETAILED PARTS DIAGRAM HERE.

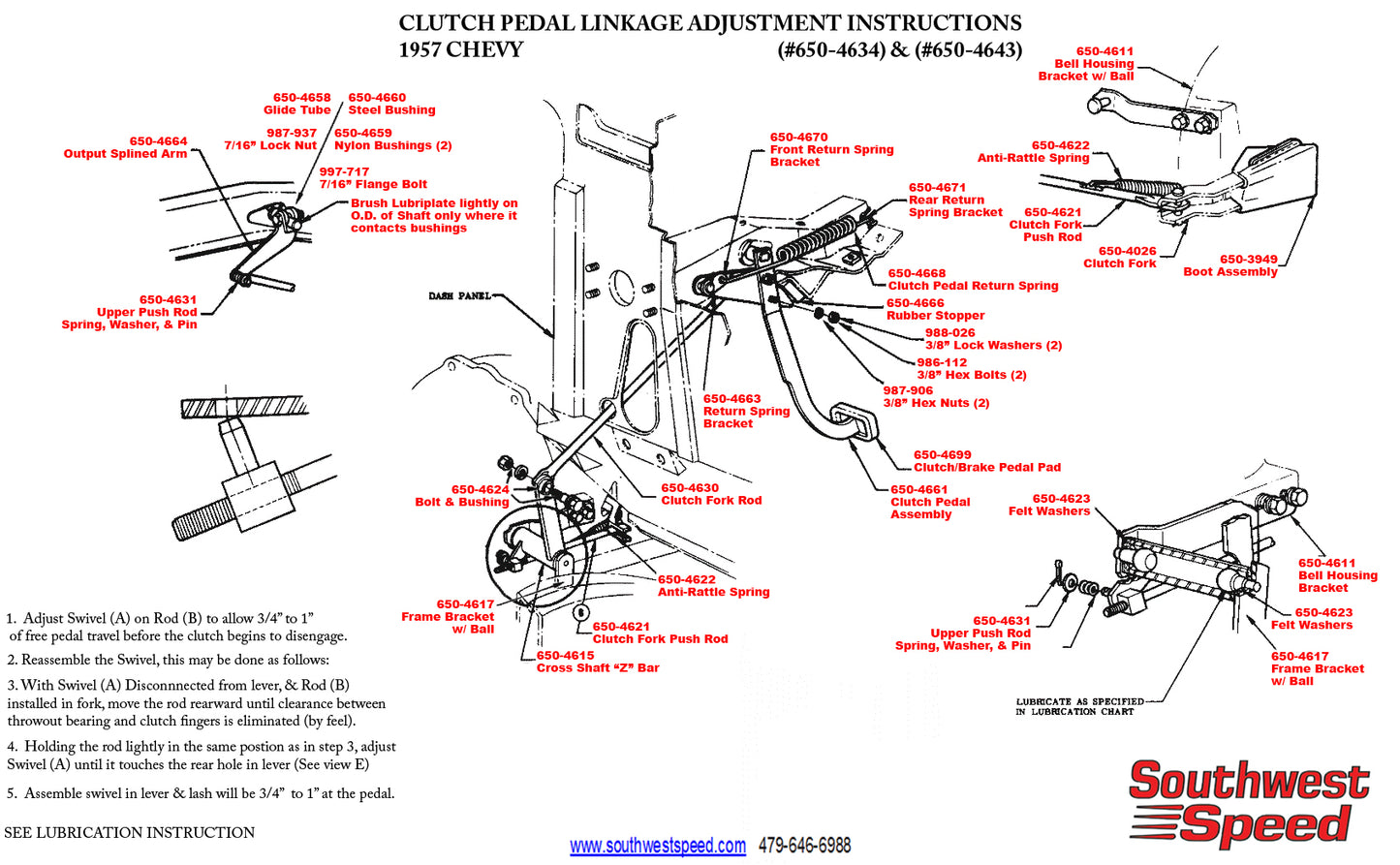

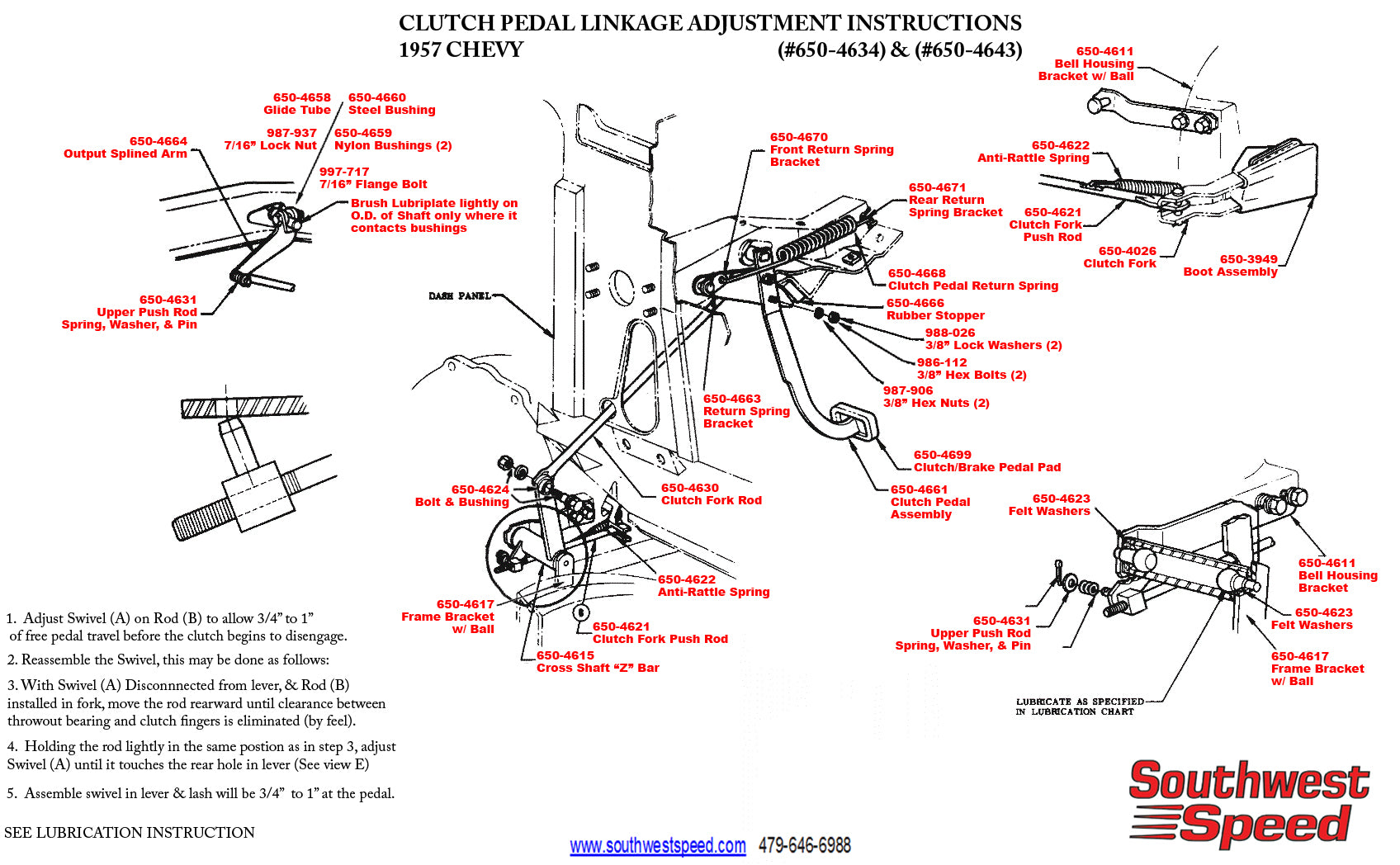

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE 1957 CHEVY CLUTCH LINKAGE ADJUSTMENT INSTRUCTIONS WITH DETAILED PARTS DIAGRAM HERE.
