MUSTANG II CROSSMEMBER,47-54 CHEVY PICKUP,WELD-IN

BRAND NEW SOUTHWEST SPEED MUSTANG II WELD-IN FRONT END SUSPENSION CROSSMEMBER KIT FOR 1947-1954 GMC AND CHEVY 1/2 TON AND 3/4 PICKUP CHASSIS (SWS PART #098-9013).

THIS CROSSMEMBER KIT IS FOR INSTALLING A MUSTANG II FRONT END INTO 1947-1954 GMC AND CHEVY 1/2 TON AND 3/4 PICKUP CHASSIS. IT ADAPTS TO 28" OUTSIDE-TO-OUTSIDE FRAME RAIL SPACINGS.

NOTE: THE STOCK FRAME IS SLIGHTLY TAPERED TO THE FRONT. THE INSIDE DIMENSION AT THE AXLE CENTERLINE IS 23-1/2" AND THE OUTSIDE DIMENSION IS 28". STANDARD MUSTANG II SPINDLES WILL SET THE PIN AT 1/2" BELOW FRAME RAILS AND A 2" DROP WILL SET IT AT 1-1/2" ABOVE FRAME RAILS. THE TRACK WIDTH IS STANDARD 56-1/2" DEPENDING ON WHICH BRAKE KIT IS USED.

FEATURES:

WELD-IN UNIT

INTERLOCKING DESIGN FOR ULTIMATE STRENGTH

BASED ON PROVEN MUSTANG II GEOMETRY

WELD-IN BOXING PLATES TO REINFORCE THE FRAME

MUSTANG II LOWER A-ARMS ARE REQUIRED FOR THIS CROSSMEMBER

REQUIRES THE USE OF A POWER RACK AND PINION STEERING

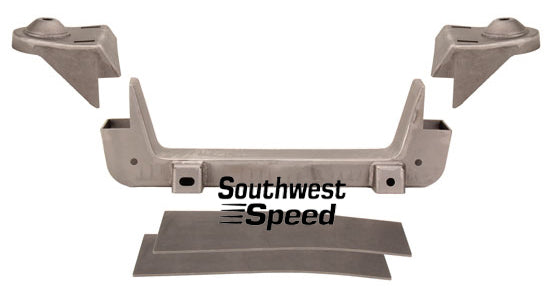

KIT INCLUDES:

28" MUSTANG II FRONT END CROSSMEMBER

LEFT SPRING TOWER

RIGHT SPRING TOWER

LEFT FRAME BOXING PLATE

RIGHT FRAME BOXING PLATE

APPLICATIONS:

CHEVY:

• 1947-1954 TRUCK:
  • BASE (3.5L 217CU IN INLINE 6 CYLINDER), & (3.8L 235CU IN INLINE 6 CYLINDER)
  • 3100 (3.5L 217CU IN INLINE 6 CYLINDER), & (3.8L 235CU IN INLINE 6 CYLINDER)
  • 3600 (3.5L 217CU IN INLINE 6 CYLINDER), & (3.8L 235CU IN INLINE 6 CYLINDER)
  • 3700 (3.5L 217CU IN INLINE 6 CYLINDER), & (3.8L 235CU IN INLINE 6 CYLINDER)
  • 3800 (3.5L 217CU IN INLINE 6 CYLINDER), & (3.8L 235CU IN INLINE 6 CYLINDER)
  • 3900 (3.5L 217CU IN INLINE 6 CYLINDER), (3.8L 235CU IN INLINE 6 CYLINDER), & (4.3L 261CU IN INLINE 6 CYLINDER)

GMC:

• 1947-1954 TRUCK:
  • BASE (3.7L 228CU. IN. INLINE 6 CYLINDER), & (4.1L 248CU. IN. INLINE 6 CYLINDER)

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS CROSSMEMBER HERE
