CHASSIS KIT,A,BODY/TIN/+ ,RA RAIL,87,STD

CHASSIS KIT,A,BODY/TIN/+ ,RA RAIL,87,STD

SKU:XXX SCCH100287

Regular price $3,949.99
Regular price Sale price $3,949.99
This item requires an additional shipping fee of $350 over standard shipping.
View full details

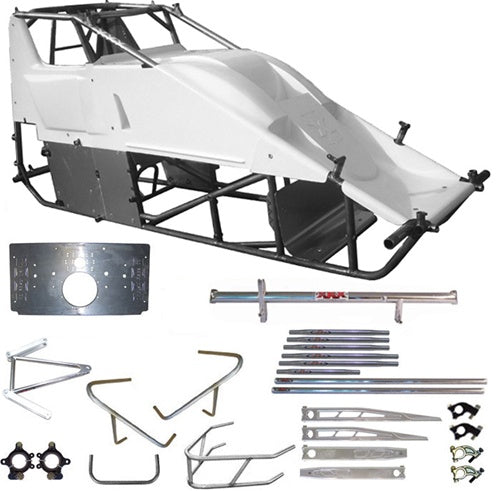

  • XXX SPRINT CAR CHASSIS KIT A
  • LENGTH: 87/40
  • HEIGHT: STANDARD
  • KIT INCLUDES:
    *CHASSIS
    *NOSE- CLEAN AIR STYLE
    *HOOD- CLEAN AIR STYLE
    *LEFT ARM GUARD- FIBERGLASS
    *RIGHT ARM GUARD- FIBERGLASS
    *DASH- ALUMINUM
    *FLOOR PAN- ALUMINUM
    *LEFT SIDE KICK PANEL- ALUMINUM, SHORT
    *RIGHT SIDE KICK PANEL- ALUMINUM, LONG 2 PIECE
    *FRONT AIR BOX- ALUMINUM
    *FRONT BUMPER- STAINLESS STEEL
    *LEFT NERF BAR- RAISED RAIL, STAINLESS STEEL
    *RIGHT NERF BAR, STAINLESS STEEL
    *REAR BUMPER- NO BASKET, STAINLESS STEEL
    *LEFT FRONT TORSION ARM- ALUMINUM
    *RIGHT FRONT TORSION ARM- ALUMINUM
    *FRONT TORSION STOPS (2)- ALUMINUM
    *LEFT REAR TORSION ARM- ALUMINUM
    *RIGHT REAR TORSION ARM- ALUMINUM
    *REAR TORSION STOPS (2)- ALUMINUM
    *LEFT FRONT RADIUS RODS (2)
    *RIGHT FRONT RADIUS ROD
    *LEFT REAR RADIUS ROD
    *RIGHT REAR RADIUS ROD
    *COMPLETE BIRDCAGE SET WITH BEARINGS & BOLTS
    *JACOBS LADDER (13 5/8")- PLATED 4130 WITH ALUMINUM STRAPS
    *FRONT AXLE- 50" x 2 1/4" PLATED 4130
    *STEERING DRAG LINK- 45 3/4" PLATED 4130
    *TIE ROD- 48" PLATED 4130
    *PANHARD ROD- 18 1/2" ALUMINUM
    *REAR MOTOR PLATE- ALUMINUM
  • TRIPLE X CHASSIS ARE MADE FROM HIGH-GRADE 4130 CHROMEMOLY TUBING THAT IS PRE-TESTED FOR CHEMICAL COMPOSITION, HARDNESS, & STRENGTH
  • THE CHASSIS INCLUDES LEFT SIDE SAFETY BAR, DRIVE HOOP, THROTTLE STAND, & WING SPUDS (2 ON EACH SIDE)
  • THE TRIPLE X SPRINT CAR HAS THE SAME DESIGN AS ALMOST ALL OTHER CHASSIS ON THE MARKET TODAY, INCLUDING THE EXACT PICKUP POINTS, MOTOR PLATE LOCATION, TORSION TUBE LOCATION, ETC.
  • THE LEFT SIDE BOTTOM RAIL IS RAISED 1" TO ALLOW PROPER GROUND CLEARANCE IN CORNERS
  • YOU CAN CLICK ON THE DIAGRAMS BELOW TO SEE THE DETAILED DIMENSIONS ON THE CHASSIS


  • Click Picture
    For Larger View



    Click Picture
    For Larger View
