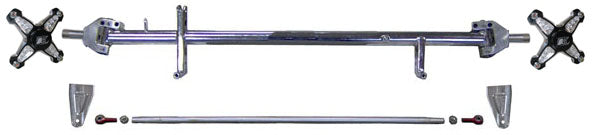

COMPLETE FRONT AXLE,W/O SPACERS & BOLTS

COMPLETE FRONT AXLE,W/O SPACERS & BOLTS

XXX 600FE9023

$679.99
$679.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • FRONT AXLE
    • CHROME PLATED 4130 CHROMOLY
    JIG BUILT FOR QUALITY & EXACT FIT
    AXLE DIAMETER: 1 1/2"
    AXLE WALL THICKNESS: .120"
    LENGTH: 40" CENTER OF KING PIN BOSS TO CENTER OF KING PIN BOSS
    AXLE KING PIN BOSSES ARE REEMED AND HONED FOR PERFECT FIT, NO NEED TO REEM ANYMORE
    BOSS: 1 3/4" IN LENGTH
    LEFT FRONT: 10 DEGREE
    RIGHT FRONT: 10 DEGREE
    PANHARD MOUNT: THREADED 3/8" STUD
    SHOCK MOUNTS: THREADED
    TORSION BAR ROLLER: BRACKET ON RIGHT SIDE ONLY; ROLLER NOT INCLUDED
  • TIE ROD
    • PLATED 4120 CHROMOLY
    WELDED/THREADED INSERTS
    3/8" X 36 1/2" LONG
    GOES FROM LEFT FRONT STEERING ARM TO RIGHT FRONT STEERING ARM
  • LEFT FRONT SPINDLE
    • POLISHED, 6061-T6 BILLET ALUMINUM SPINDLE BODY
    MACHINED ALUMINUM SPINDLE SNOUT
    COMES COMPLETE WITH NUT, SPACERS, BRASS BUSHINGS, & GREASE FITTING
  • RIGHT FRONT SPINDLE
    • POLISHED, 6061-T6 BILLET ALUMINUM SPINDLE BODY
    MACHINED ALUMINUM SPINDLE SNOUT
    COMES COMPLETE WITH NUT, SPACERS, BRASS BUSHINGS, & GREASE FITTING
  • LEFT FRONT COMBO STEERING ARM
    • POLISHED, 2024 ALUMINUM
    CNC MACHINED
  • RIGHT FRONT STEERING ARM
    • POLISHED, 2024 ALUMINUM
    CNC MACHINED
  • KING PINS (2)
    • STEEL PINS COME WITH CLIPS
    RECESSED ON ONE SIDE FOR SET SCREW
  • THRUST BEARINGS (4)
    • SITS BETWEEN 2 THRUST WASHER SHIMS TO ELIMINATE WEAR ON THE SPINDLE AND KEEP PLAY TO A MINIMUM
  • THRUST BEARING SHIMS(8)
  • DIRECT MOUNT FRONT HUBS (2)
    • 6061-T6 BILLET ALUMINUM
    HUBS COME COMPLETE WITH BEARINGS & DUST CAP
    THESE BUTTERFLY BILLET FRONT HUBS ARE THE LIGHTEST & STRONGEST AVAILABLE
    A VERY EXTENSIVE MACHINING PROCESS IS USED TO GET THESE LIGHT, YET VERY STRONG PIECES TO THEIR CURRENT FORM
    THEY WEIGH APPROXIMATELY 1.6 LBS EACH
    4 BOLT X 7" BOLT PATTERN
  • 3/8" LEFT HAND ROD END
  • 3/8" RIGHT HAND ROD END
  • 3/8" LEFT HAND JAM NUT
  • 3/8" RIGHT HAND JAM NUT
