CHASSIS KIT,B,BODY & TIN

CHASSIS KIT,B,BODY & TIN

XXX 600CH1001

$2,199.99
$2,199.99
This item requires an additional shipping fee of $350 over standard shipping.
View full details

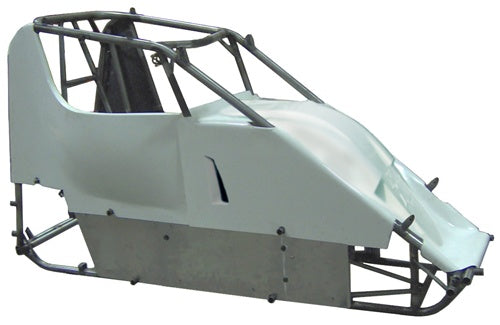

  • XXX 600 MICRO/MINI-SPRINT CHASSIS KIT B WITH BODY & TIN
  • KIT INCLUDES:
    *CHASSIS
    *HOOD
    *LEFT ARM GUARD
    *RIGHT ARM GUARD
    *DASH
    *FRONT FLOOR PAN
    *REAR FLOOR PAN
    *2 PIECE LEFT SIDE KICK PANEL
    *3 PIECE RIGHT SIDE KICK PANEL
    *CHAIN GUARD
    *MOTOR SHROUD
    *ELECTRONICS PANEL
    *RADIUSED FRONT AIR BOX
  • THE TRIPLE X CHASSIS IS MADE FROM HIGH-GRADE 4130 CHROMEMOLY TUBING THAT IS PRE-TESTED FOR CHEMICAL COMPOSITION, HARDNESS, & STRENGTH
  • INCLUDES 40 DZUS SPRINGS ALREADY ON CHASSIS
  • THE TRIPLE X 600 SPRINT HAS THE SAME DESIGN AS ALMOST ALL OTHER CHASSIS ON THE MARKET TODAY, INCLUDING THE EXACT PICKUP POINTS, MOTOR PLATE LOCATION, TORSION TUBE LOCATION, ETC.

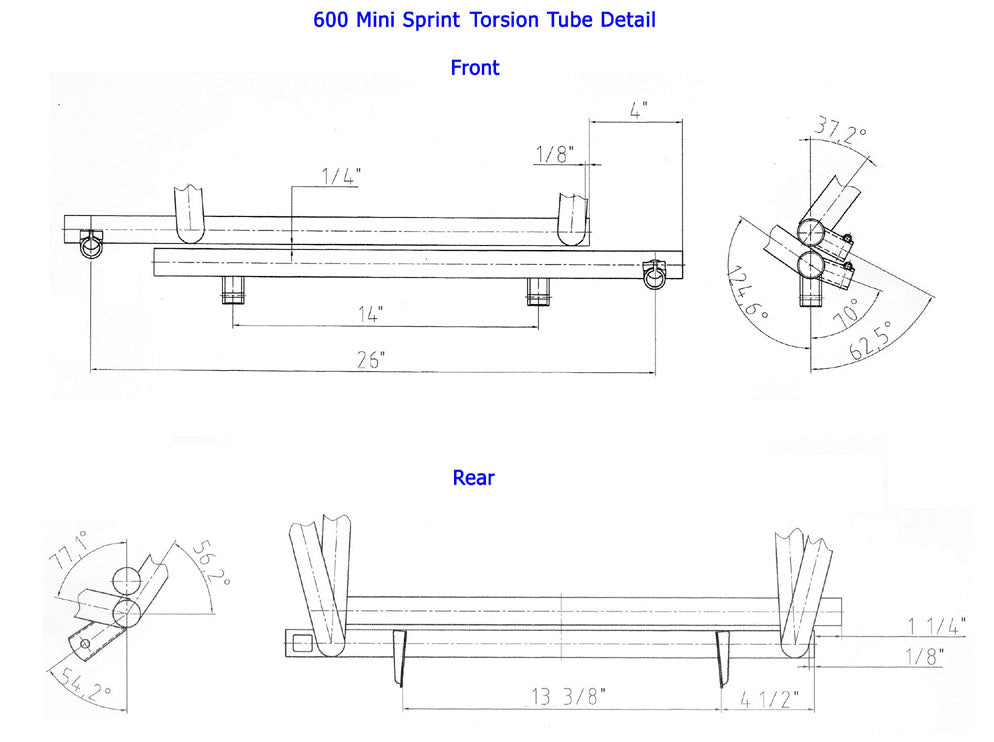

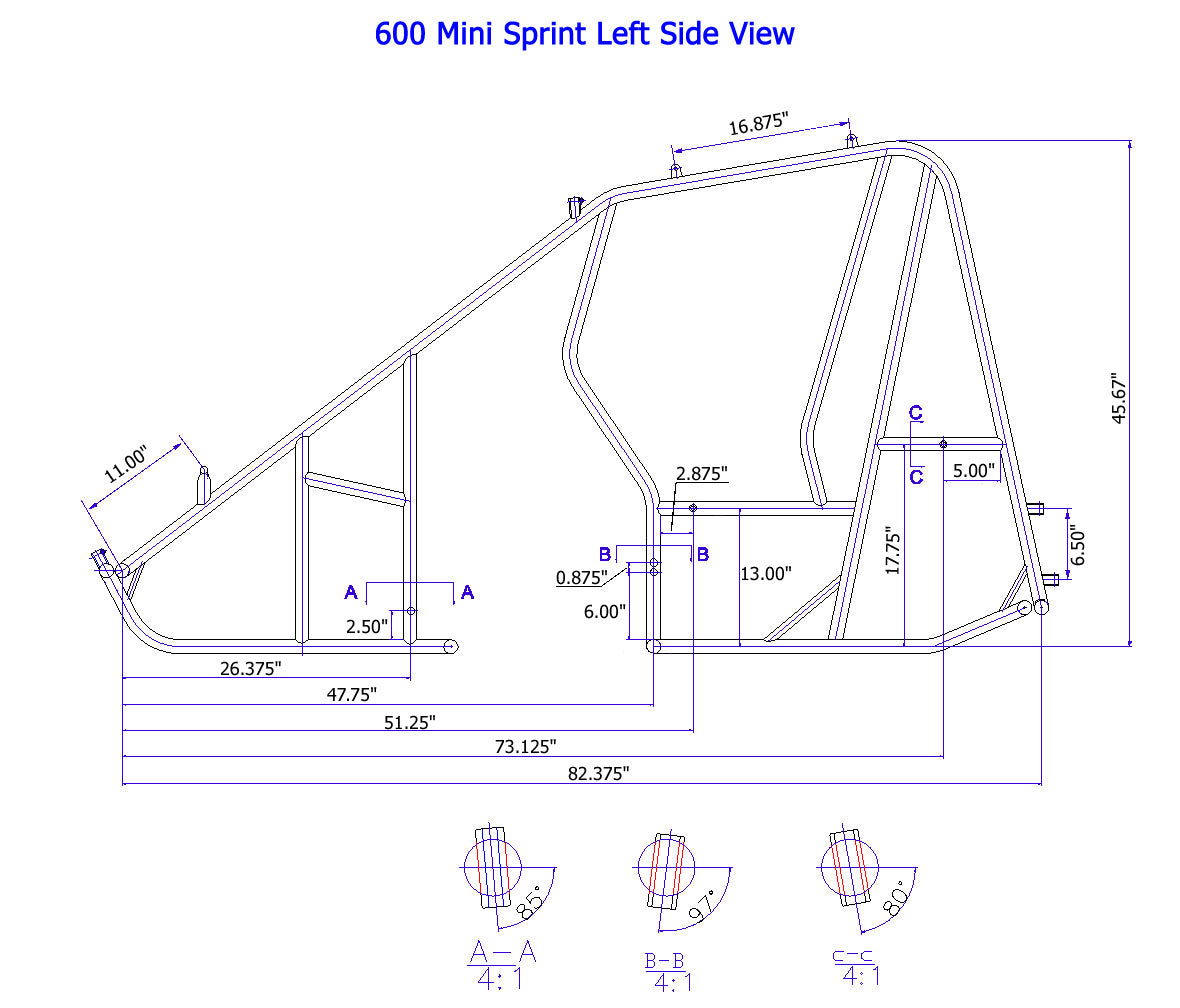

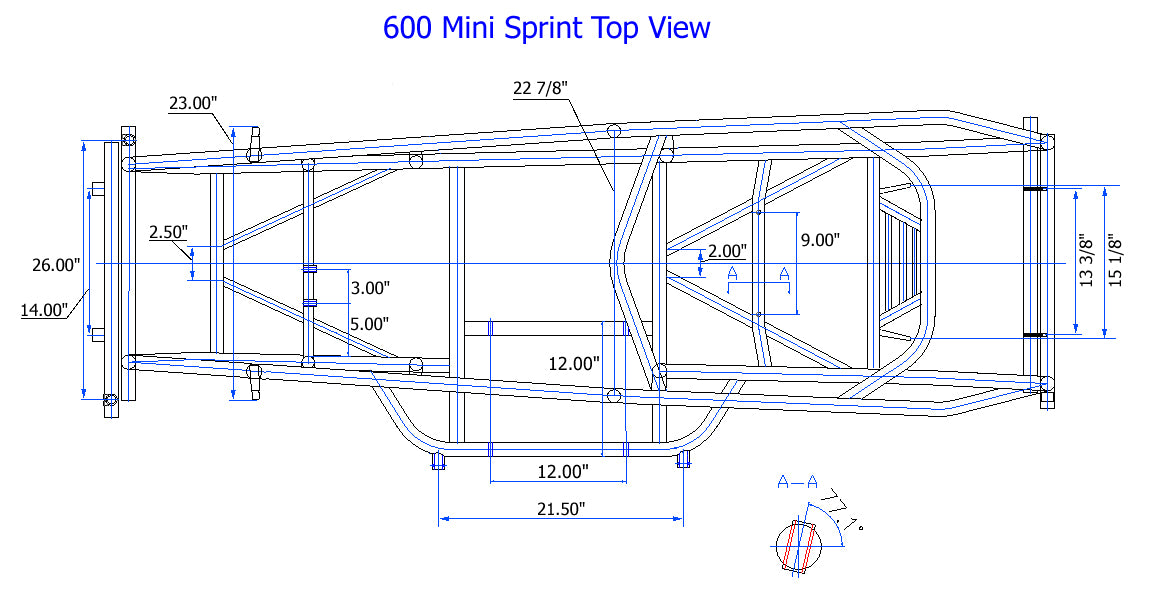

  • YOU CAN CLICK ON THE DIAGRAMS BELOW TO SEE THE DETAILED DIMENSIONS ON THE CHASSIS



    • Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View
