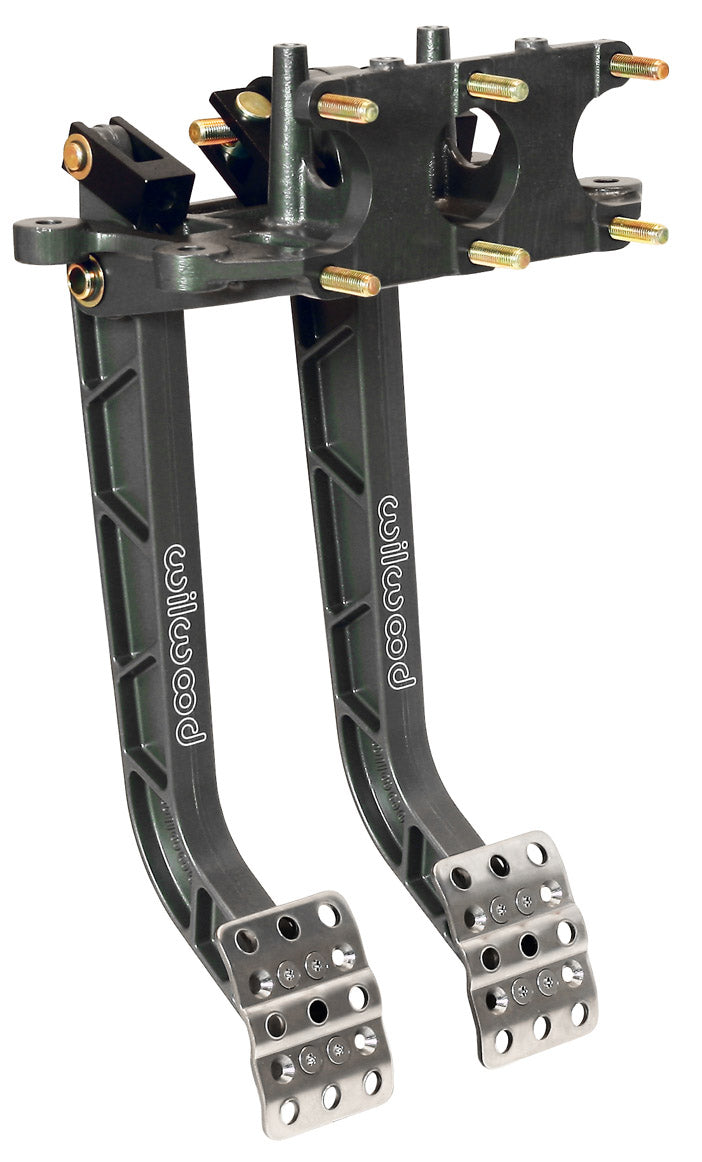

ADJUSTABLE DUAL REVERSE MOUNT SWING PEDAL,TRIPLE MASTER CYLINDER

ADJUSTABLE DUAL REVERSE MOUNT SWING PEDAL,TRIPLE MASTER CYLINDER

WIL 340-11299

$269.99
$269.99
View full details
  • WILWOODS NEW ADJUSTABLE REVERSE MOUNT PEDAL ASSEMBLY COMBINES THE BRAKE AND CLUTCH PEDALS TOGETHER IN ONE UNIT AND POSITIONS THE MASTER CYLINDERS INSIDE THE FIREWALL, AWAY FROM ENGINE HEAT. IT FEATURES ALL ALUMINUM FRAME AND FORGED ALUMINUM PEDAL ARMS WITH LADDER STYLE CONSTRUCTION. PEDAL PADS ARE OF SPECIAL ADJUSTABLE DESIGN THAT ALLOWS FINE-TUNING OF THE PEDAL LOCATION AND CLEARANCE. ALSO INCLUDED WITH THE ASSEMBLY: MOUNTING STUDS, HARDWARE, NEW CLEVIS AND PIVOT PIN BALANCE BAR ASSEMBLY TO PROVIDE SMOOTH AND ACCURATE SETTINGS OF THE BRAKE PEDAL BIAS. THE BALANCE BAR CAN BE SET AND LOCKED DOWN WITH THE JAM NUT, OR ATTACHED TO A REMOTE CABLE FOR QUICK ON-TRACK ADJUSTMENTS. WITH A 6.25 TO 1 PEDAL RATIO ON BOTH CLUTCH AND BRAKE PEDALS.

  • LIGHTWEIGHT CONSTRUCTION, WEIGHING ONLY APPROXIMATELY 4.55 POUNDS
  • INCLUDES ADJUSTABLE BRAKE BALANCE BAR
  • FULLY ADJUSTABLE ALUMINUM PEDAL PADS WITH WAFFLE STYLE NON-SLIP SURFACE
  • HIGH STRENGTH FORGED ALUMINUM LADDER STYLE PEDAL ARMS
  • BRAKE AND CLUTCH PEDAL HAVE 6.25:1 RATIO
  • EASY MOUNTING LOCATION WITH FULL INTERCHANGEABILITY WITH WILWOOD PEDALS OF THE SAME TYPE AND STYLE
