TANDEM M/C,REMOTE KIT,1 1/8" BORE,BLACK

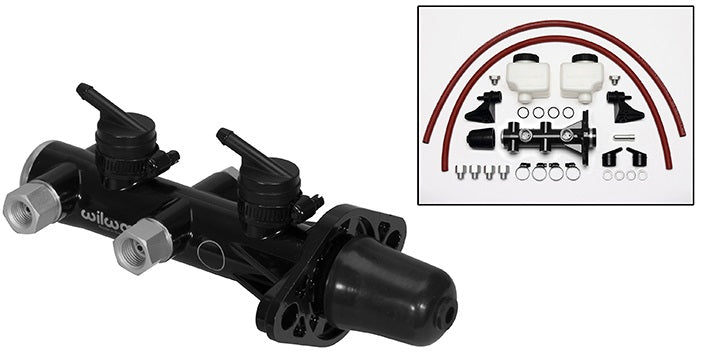

BRAND NEW WILWOOD BLACK COATED ALUMINUM REMOTE TANDEM MASTER CYLINDER, 1-1/8" BORE (PART #260-14244-BK).

THE 1-1/8" BORE IS DESIGNED FOR USE PRIMARILY WITH POWER BRAKE APPLICATIONS, EITHER FROM VACUUM ASSIST OR HYDRAULIC ASSIST SYSTEMS. THEYRE DESIGNED FOR MOUNT FLANGES FROM 3.22" TO 3.40", COMMON MEASUREMENTS FOR MOST DOMESTIC CARS AND TRUCKS FROM THE MID-1960S TO PRESENT, AND OFFER FLUID OUTLET PORTS ON BOTH SIDES OF THE BORE. THE STROKE IS SET AT 1.12" WITH A VOLUME RATIO OF 2:1 BETWEEN THE PRIMARY AND SECONDARY CHAMBERS. MACHINED FROM HIGH-PRESSURE DIE CASTINGS, EACH MASTER CYLINDER WEIGHS ONLY 3LBS, A 75% WEIGHT SAVINGS OVER MOST CAST IRON OE TYPE MASTER CYLINDERS.

SPECS:

• BORE SIZE: 1-1/8"
• STROKE: 1.12"
• OUTLETS: 2
• MATERIAL: ALUMINUM
• WEIGHT: 3 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
