99-10 GM 2500 TRUCK/SUV,H2,FRONT,TC6R 6 PISTON RED CALIPERS,16" DRILLED ROTORS

BRAND NEW WILWOOD PREMIUM BIG BRAKE TC6R BOLT-ON FRONT HAT & 16" DISC BRAKE KIT (PART #140-8996-DR) FOR BOTH FRONT WHEELS.

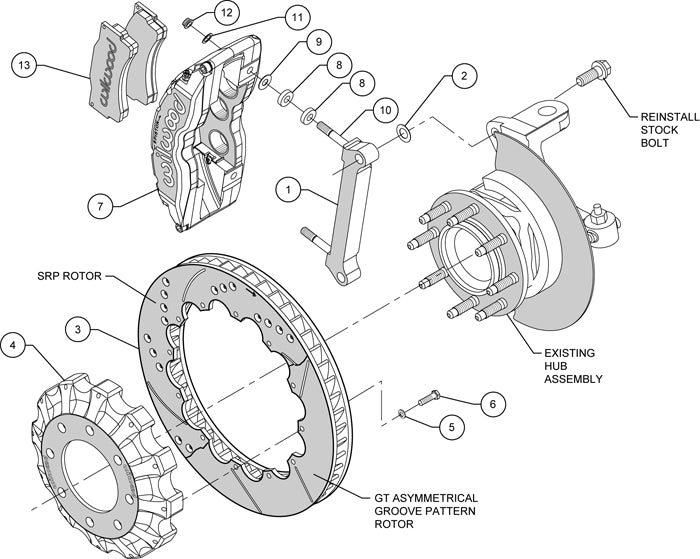

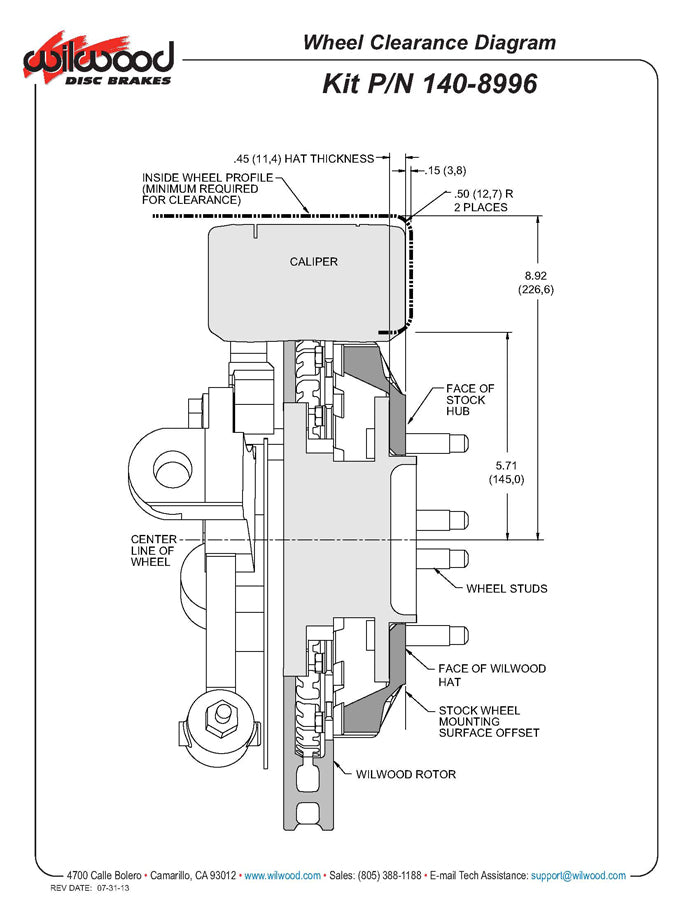

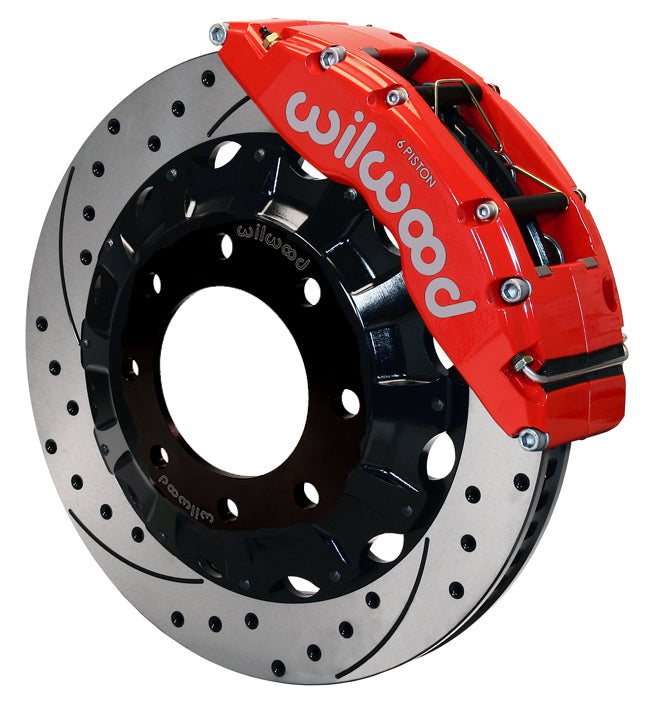

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

FITS:

• HUMMER:
  • 2003-2009 H2, ALL 8 LUG
• CHEVY:
  • 2002-2006 AVALANCHE 2500, ALL 8 LUG
  • 2001-2006 SILVERADO 1500HD TRUCK, ALL 8 LUG
  • 1999-2010 SILVERADO 2500 TRUCK, ALL 8 LUG
  • 2001-2009 SILVERADO 2500HD TRUCK, ALL 8 LUG
  • 2001-2006 SILVERADO 3500 TRUCK, ALL 8 LUG
  • 2007 SILVERADO 3500 TRUCK, CLASSIC STYLE FRAME, 8 LUG
  • 2007 SILVERADO 3500HD TRUCK, NEW STYLE FRAME, 8 LUG
  • 2008-2010 SILVERADO 3500HD TRUCK, ALL 8 LUG
  • 2000 SUBURBAN 2500 4X4, 8 LUG
  • 2001-2010 SUBURBAN 2500, ALL 8 LUG
• GMC:
  • 2001-2006 SIERRA 1500HD TRUCK, ALL 8 LUG
  • 1999-2010 SIERRA 2500 TRUCK, ALL 8 LUG
  • 2001-2009 SIERRA 2500HD TRUCK, ALL 8 LUG
  • 2001-2006 SIERRA 3500 TRUCK, ALL 8 LUG
  • 2007 SIERRA 3500 TRUCK, CLASSIC STYLE FRAME, 8 LUG
  • 2007 SIERRA 3500HD TRUCK, NEW STYLE FRAME, 8 LUG
  • 2008-2010 SIERRA 3500HD TRUCK, ALL 8 LUG
  • 2000 YUKON XL 2500 4X4, 8 LUG
  • 2001-2010 YUKON XL 2500, ALL 8 LUG

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

TC6R CALIPERS ARE PURPOSE-BUILT TO PROVIDE UNSURPASSED BRAKING CAPACITY ON TRUCKS AND SUVS USING 20" AND LARGER WHEELS AND TIRES. COMBINING THE HIGH CLAMPING EFFICIENCY OF THE TC6R CALIPER WITH 16" DIAMETER DIRECTIONAL VANE ROTORS AND HIGH FRICTION BP-10 COMPOUND BRAKE PADS, TC6R KITS PROVIDE THE BRAKING POWER NECESSARY TO CONTROL THE HIGHER ROTATING WEIGHT OF ULTRA-SIZED WHEELS AND TIRES, ESPECIALLY WITH HIGH GVW VEHICLES AND VEHICLES USED FOR TOWING. TC6R KITS ARE ENGINEERED APPLICATION-SPECIFIC TO BE FULLY COMPATIBLE WITH THE OE MASTER CYLINDER OUTPUT AND RETAIN FULL FUNCTION OF THE ABS SYSTEM.

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

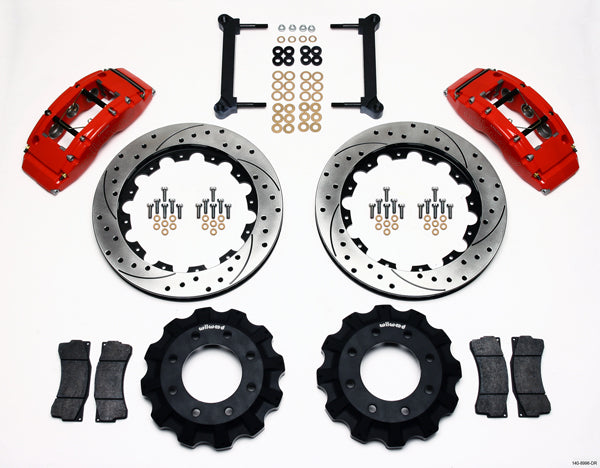

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.38" THICK X 16.00" O.D. ROTORS
• TC6R RADIAL MOUNT CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 97 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
