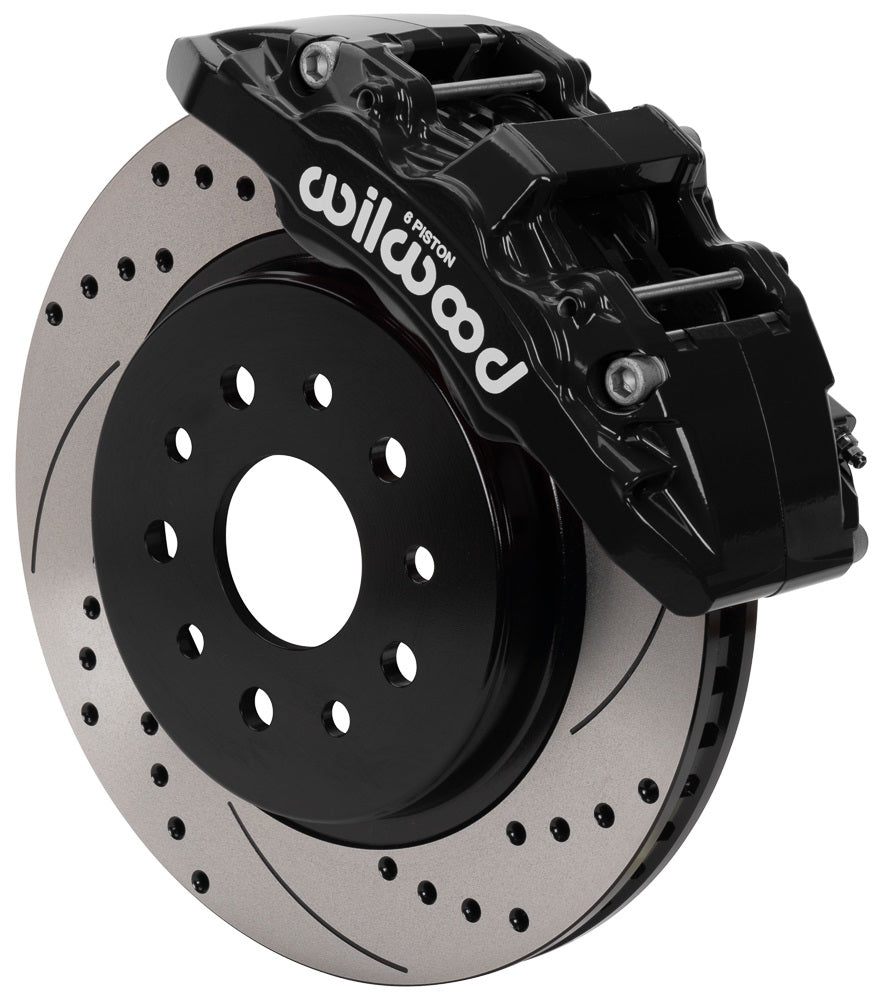

07-18 JEEP JK WRANGLER,FRONT,AERO 6 PISTON,13.38" DRILLED ROTORS,BLACK CALIPERS

BRAND NEW WILWOOD PREMIUM 13.38" BOLT-ON BRAKE KIT (PART #140-17274-D) FOR BOTH FRONT WHEELS.

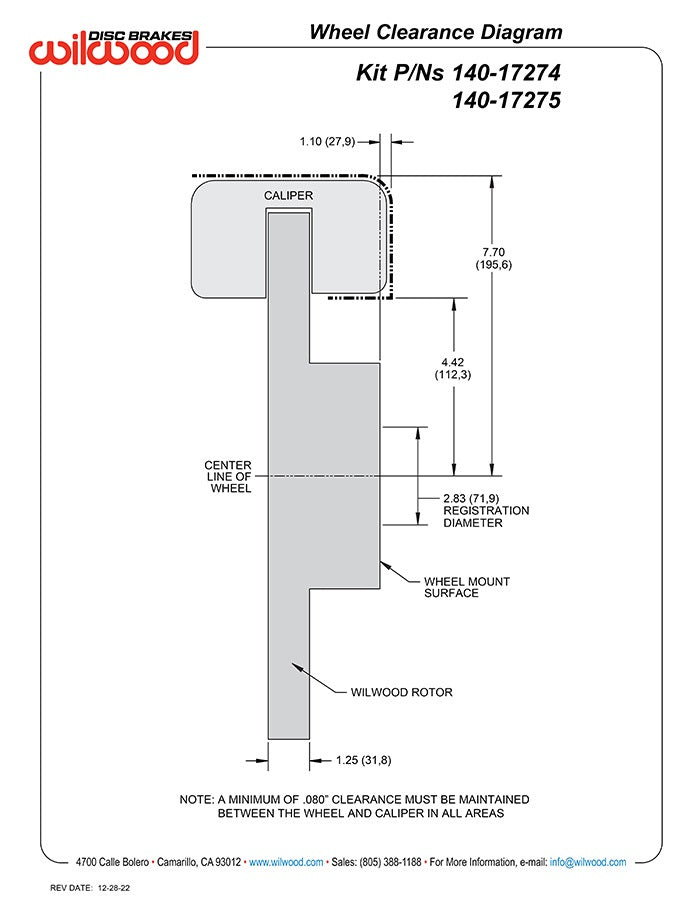

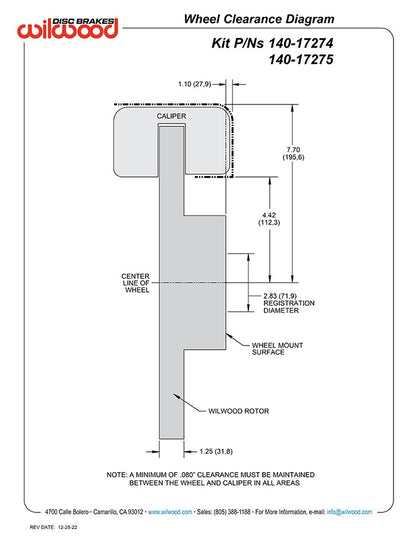

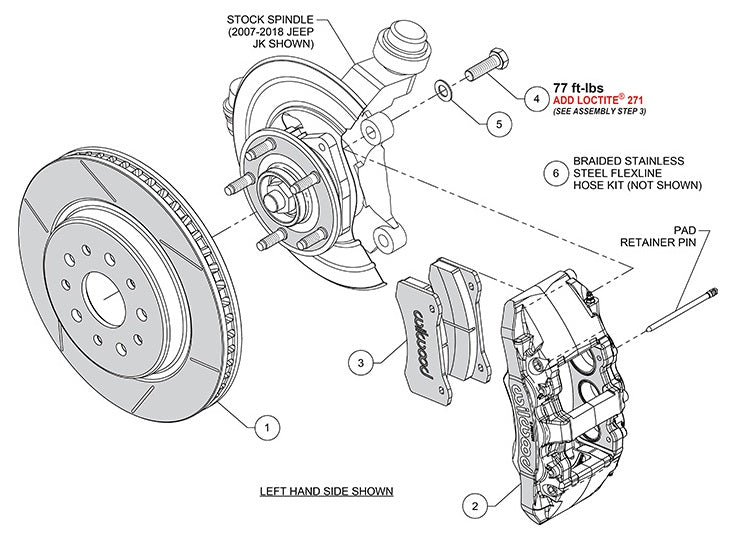

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED ROTORS & BLACK CALIPERS.

FITS:

• JEEP:
  • 2007-2013 WRANGLER 4 X 2 & 4 X 4 LEFT HAND DRIVE
  • 2007-2013 WRANGLER 4 X 4 RIGHT HAND DRIVE
  • 2014 WRANGLER UNLIMITED WILLYS WHEELER
  • 2014 WRANGLER WILLYS WHEELER
  • 2014-2017 WRANGLER RUBICON
  • 2014-2017 WRANGLER SAHARA
  • 2014-2017 WRANGLER SPORT
  • 2014-2017 WRANGLER UNLIMITED RUBICON
  • 2014-2017 WRANGLER UNLIMITED SAHARA
  • 2014-2017 WRANGLER UNLIMITED SPORT
  • 2016 WRANGLER 75TH ANNIVERSARY
  • 2016 WRANGLER SPORT S
  • 2016 WRANGLER UNLIMITED 75TH ANNIVERSARY
  • 2016 WRANGLER UNLIMITED SPORT S
  • 2018 WRANGLER JK RUBICON
  • 2018 WRANGLER JK SAHARA
  • 2018 WRANGLER JK SPORT
  • 2018 WRANGLER JK UNLIMITED RUBICON
  • 2018 WRANGLER JK UNLIMITED SAHARA
  • 2018 WRANGLER JK UNLIMITED SPORT

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

AERODM SIX PISTON CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING A DIRECT MOUNT, LARGE CAPACITY BRAKING SOLUTION WITH LARGE DIAMETER ROTORS FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES. FOR TRUCKS AND SUVS, IT PROVIDES BIG STOPPING POWER FOR TOWING, OFF-ROAD, AND ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS LISTED FOR SPECIFIC VEHICLES ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. OEM STYLE 1 PIECE 13.38" DIAMETER ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

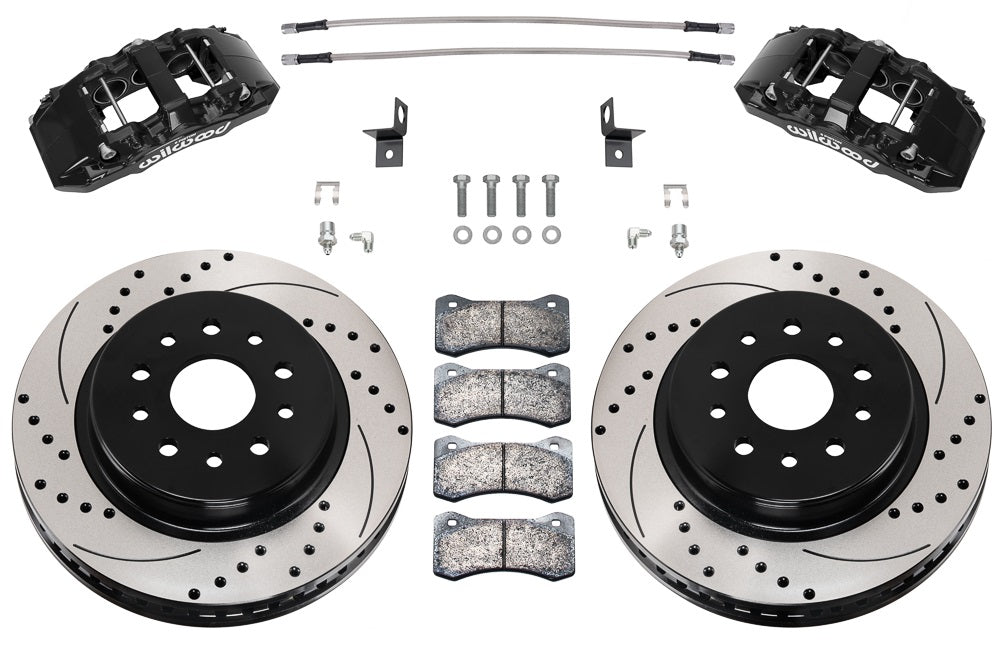

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.25" THICK X 13.38" O.D. ROTORS
• AERO6-DM 6 PISTON CALIPERS - BLACK
• POLYMATRIX Q BRAKE PADS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL BOLTS, WASHERS, AND HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 82 LBS.

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
