99-06 SILVERADO,SIERRA,AVALANCHE,TAHOE,YUKON,ESCALADE,FRONT,AERO 6,13.38",BLACK

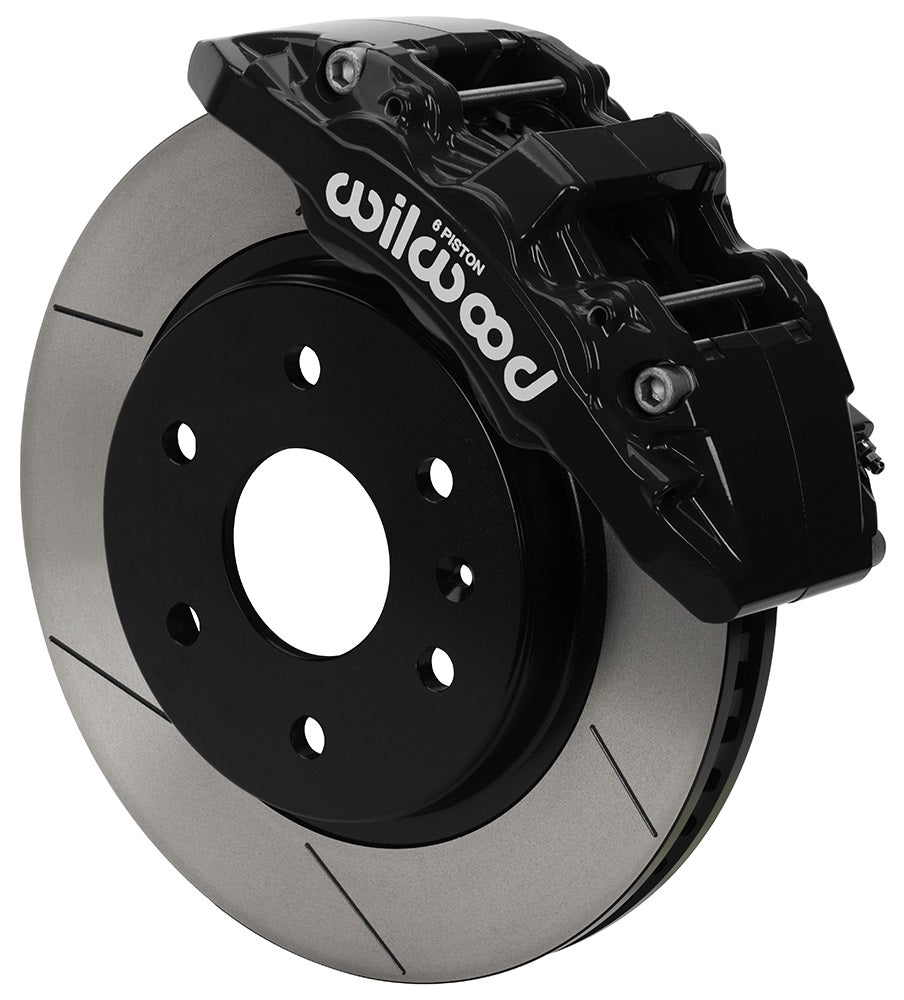

BRAND NEW WILWOOD PREMIUM 13.38" BOLT-ON BRAKE KIT (PART #140-16803) FOR BOTH FRONT WHEELS.

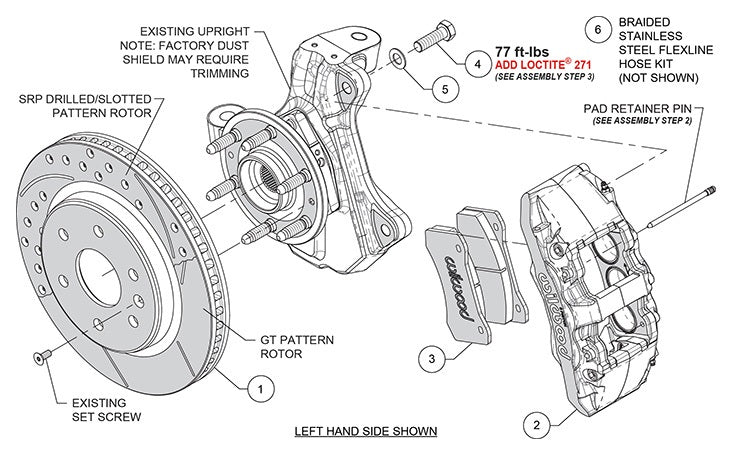

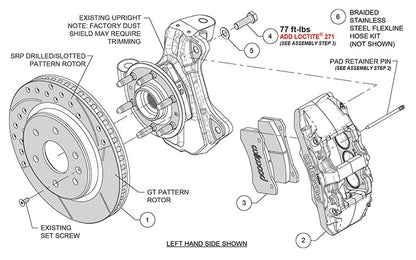

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• CADILLAC:
  • 2002-2005 ESCALADE 6 LUG - 4 X 2 W/ 4 WHEEL STEERING
  • 2002-2005 ESCALADE 6 LUG - 4 X 2 W/ OUT 4 WHEEL STEERING
  • 2002-2005 ESCALADE 6 LUG - 4 X 4 W/ 4 WHEEL STEERING
  • 2002-2005 ESCALADE 6 LUG - 4 X 4 W/ OUT 4 WHEEL STEERING
  • 2006 ESCALADE 6 LUG - 4 X 2
  • 2006 ESCALADE 6 LUG - 4 X 4
  • 2002-2004 ESCALADE EXT 6 LUG - 4 X 2 W/ 4 WHEEL STEERING
  • 2002-2004 ESCALADE EXT 6 LUG - 4 X 2 W/ OUT 4 WHEEL STEERING
  • 2002-2004 ESCALADE EXT 6 LUG - 4 X 4 W/ 4 WHEEL STEERING
  • 2002-2004 ESCALADE EXT 6 LUG - 4 X 4 W/ OUT 4 WHEEL STEERING
• CHEVROLET:
• 2002-2006 AVALANCHE 1500 6 LUG - 4 X 2
• 2002-2006 AVALANCHE 1500 6 LUG - 4 X 4
• 1999-2001 SILVERADO 1500 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• 2000 SILVERADO 1500 ALL W/ OE SINGLE PISTON REAR BRAKE
• 2001 SILVERADO 1500 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 2 W/ DRUM REAR
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 4 W/ DRUM REAR
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 SILVERADO 1500 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
• 2007 SILVERADO 1500 6 LUG - CLASSIC STYLE W/ DRUM REAR
• 2007 SILVERADO 1500 6 LUG - CLASSIC STYLE W/ OE 2 PISTON REAR
• 2007 SILVERADO 1500 6 LUG - CLASSIC STYLE W/ OE SINGLE PISTON REAR
• 2000-2001 SUBURBAN 1500 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 SUBURBAN 1500 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 SUBURBAN 1500 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• 2000 TAHOE 6 LUG - NEW STYLE W/ OE HD 2 PIST REAR
• 2001 TAHOE 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• 2001 TAHOE 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• 2002-2006 TAHOE 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• 2002-2006 TAHOE 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• GMC:
  • 1999-2001 SIERRA 1500 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
  • 2000 SIERRA 1500 ALL W/ OE SINGLE PISTON REAR BRAKE
  • 2001 SIERRA 1500 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 SIERRA 1500 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 SIERRA 1500 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
  • 2002-2006 SIERRA 1500 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 SIERRA 1500 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
  • 2005-2006 SIERRA 1500 6 LUG - 4 X 4 W/ DRUM REAR
  • 2005-2006 SIERRA 1500 6 LUG - 4 X 2 W/ DRUM REAR
  • 2007 SIERRA 1500 6 LUG - CLASSIC STYLE W/ DRUM REAR
  • 2007 SIERRA 1500 6 LUG - CLASSIC STYLE W/ OE 2 PISTON REAR
  • 2007 SIERRA 1500 6 LUG - CLASSIC STYLE W/ OE SINGLE PISTON REAR
  • 2000 YUKON 6 LUG - EXCEPT DENALI W/ OE HD 2 PIST REAR
  • 2001 YUKON 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
  • 2001 YUKON 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
  • 2002 YUKON 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
  • 2002 YUKON 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
  • 2002-2006 YUKON 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 YUKON 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
  • 2000-2001 YUKON XL 1500 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 YUKON XL 1500 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
  • 2002-2006 YUKON XL 1500 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

AERODM SIX PISTON CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING A DIRECT MOUNT, LARGE CAPACITY BRAKING SOLUTION WITH LARGE DIAMETER ROTORS FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES. FOR TRUCKS AND SUVS, IT PROVIDES BIG STOPPING POWER FOR TOWING, OFF-ROAD, AND ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS LISTED FOR SPECIFIC VEHICLES ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. OEM STYLE 1 PIECE 13.38" DIAMETER ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

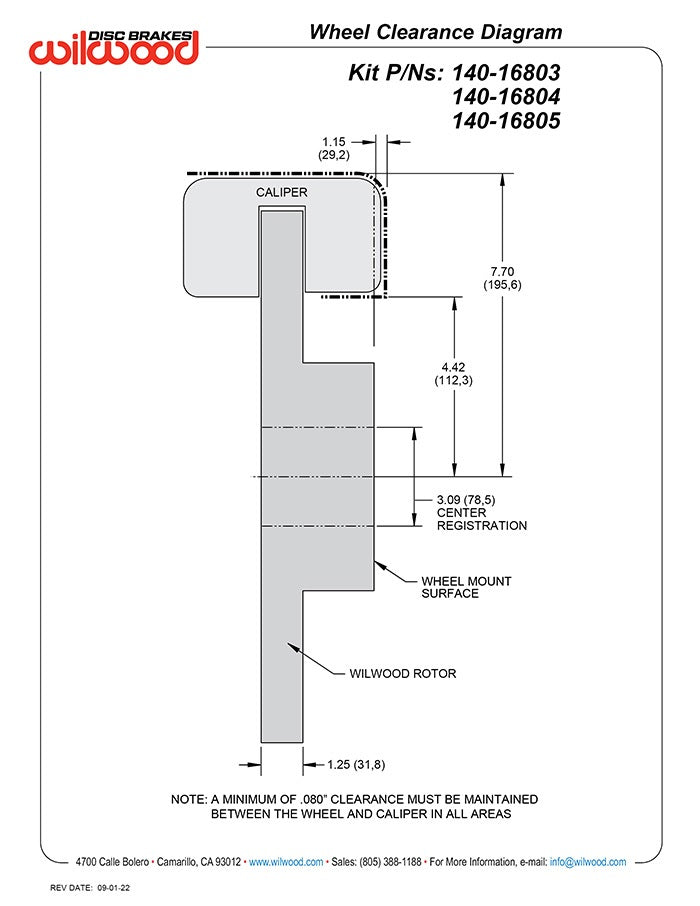

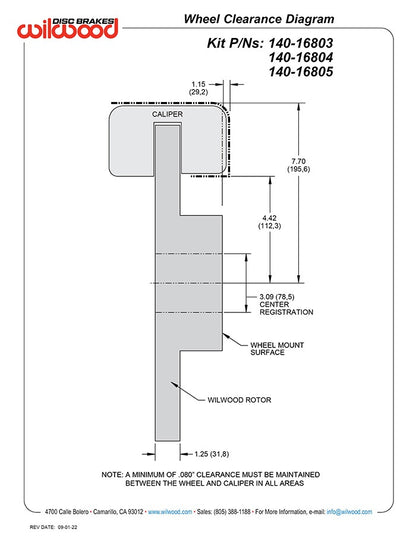

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 13.38" O.D. ROTORS
• AERO6-DM 6 PISTON CALIPERS - BLACK
• POLYMATRIX Q BRAKE PADS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL BOLTS, WASHERS, AND HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 81 LBS.

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
